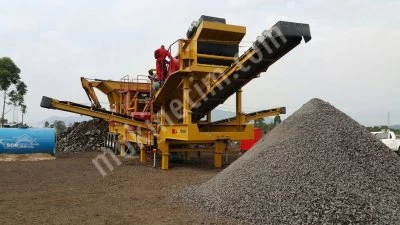

TURBO 900 (Hard Material Crusher)

Mobile Chassis Wheel suspension Total fourteen(14) blocking legs six(6) of them hydraulically operated Airbrakes, running lights, and mud flaps Fixed walkways on both sides with hand rails Access ladder to chassis Hydraulic Levelling System 3 axle chassis Six(6) hydraulic levelling jack system Hopper and Feeder Approximately 12 m3 capacity Vibrator System Feeder Grizzly System Feeder Size : 1000 x 3800 mm Vibromotor Oli Jaw Crusher Size: 900x650 mm primary type Motor: 75 – 90 kW Setting mechanism can be adjusted easily. Dragon Screen 3 Deck (High Capacity) Screen Size :1800x 4500 mm 3 Deck high capacity Motor : 18,5 kW Hydro Cone Crusher System (Hard Material Crusher) Cone crusher size: 935 mm Motor: 90 – 110 kW Main Conveyor Belt 1000 mm Motor: 7.5 kW Stock Conveyors (3 Units) 2 Units: 600 mm stock conveyor belt Motor : 4 kW 1 Unit: 900 mm stock conveyor belt Motor : 5.5 kW Secondery Crushing Conveyor Belt 700 mm Motor: 4 kW Bypass Conveyor 500 mm Motor: 2.2 kW Mobile Chassis : 3 Axle chassis Control Board: Siemens Remote Control For One-Man-Operation. Hydraulic System Dust Suppression Control System Extra Hopper + 10 m3 Generator (Optional) Total Motor Power: 235 kW Output Sizes: 0 – 20 mm (Changeable) Transport Dimensions (WxHxL): 3200x4500x19000mm Maximum Feeding Size: 900x650 mm Total Weight: 60 tons
