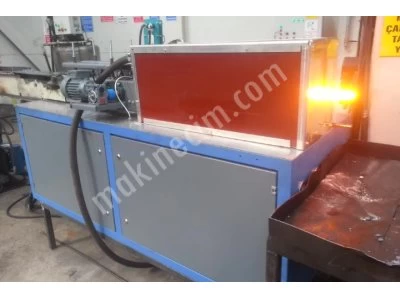

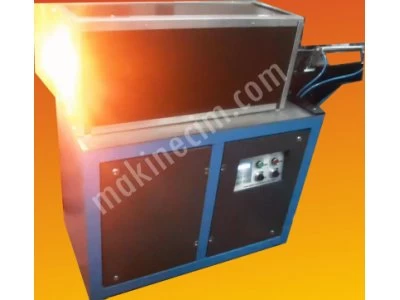

Tunnel Induction Heating Machine With 125 Kva Insulation Transformer

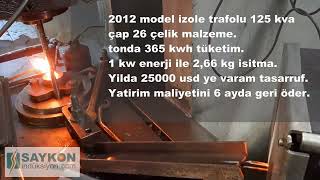

125 kva 60 diameter tunnel heater. Heats 2.6 kg at 1200C in 40 seconds. It has an energy consumption value of 380 kWH/Ton. With 1 kWH energy, 2.7 kg of material can be heated to 1200C. It is suitable for heating 12-60 mm diameter steel materials. 60 diameter material heating time 40 sec. 20 diameter material heating time is 5 seconds.

Digital Control :

Fast digital resonance tracking by coil and part
Works accurately and stably. Self-test
can. Reports faults and warnings. Equal to every part
and heats homogeneously. Temperature reading and stabilization
can do.

Energy Saving:
It is produced with the latest technology. With its technological structure

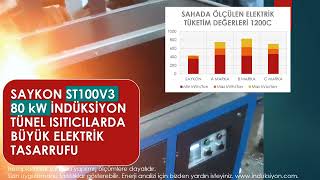

Low energy consumption up to 350 kWh/ton. Reagent
does not consume energy. Compensation Board
not required. in as little as 6 months
pays.

Fast and Homogeneous Heating:
With its high frequency structure suitable for the material
No combustion occurs on the surface. Surface and core
temperature difference of up to 20 degrees between
provides. It automatically detects the track. new
prevents melting when material does not enter the tunnel.
It has an adjustable automatic piston loading.
Fast digital resonance tracking by coil and part
Works accurately and stably. Self-test
can. Reports faults and warnings. Equal to every part
and heats homogeneously. Temperature reading and stabilization
can do.

Long life:
Robust and long-lasting IGBT semiconductor construction.
Advanced protection features. to external influences and the network
strengthened against disturbances.

Advantages:

* Domestic Production
* Compact design
* 2-30 kHz frequency range
* 80-800 kW wide product range
* Flexible use
* Easy to use
* Standard Isolation transformer
* Uninterrupted working
* Short and open circuit Protection.
* Ability to work idle.
* Long life
* New IGBT technology
* Low energy consumption
* High stability with digital control
* Digital resonance tracking
* Optional isolated output transformer
* 2 years warranty. Fast service
