Ts-4 Above Ground Truck Scale
| Price : | Ask For Price |
| Ad Code : | M-431791 |
| Ad Type : | For Sale - New |
| Views : | 231 |
| Date Updated : | 16 Apr 2025 |
| Production Type : | Special Production |
| Brand : | Tuna Tartı Ve Elektronik Sistemler Ltd. Şti |
Tuna Tartı Ve Elektronik Sistemler Ltd. Şti.
Ts-4 Above Ground Truck Scale Ad Description

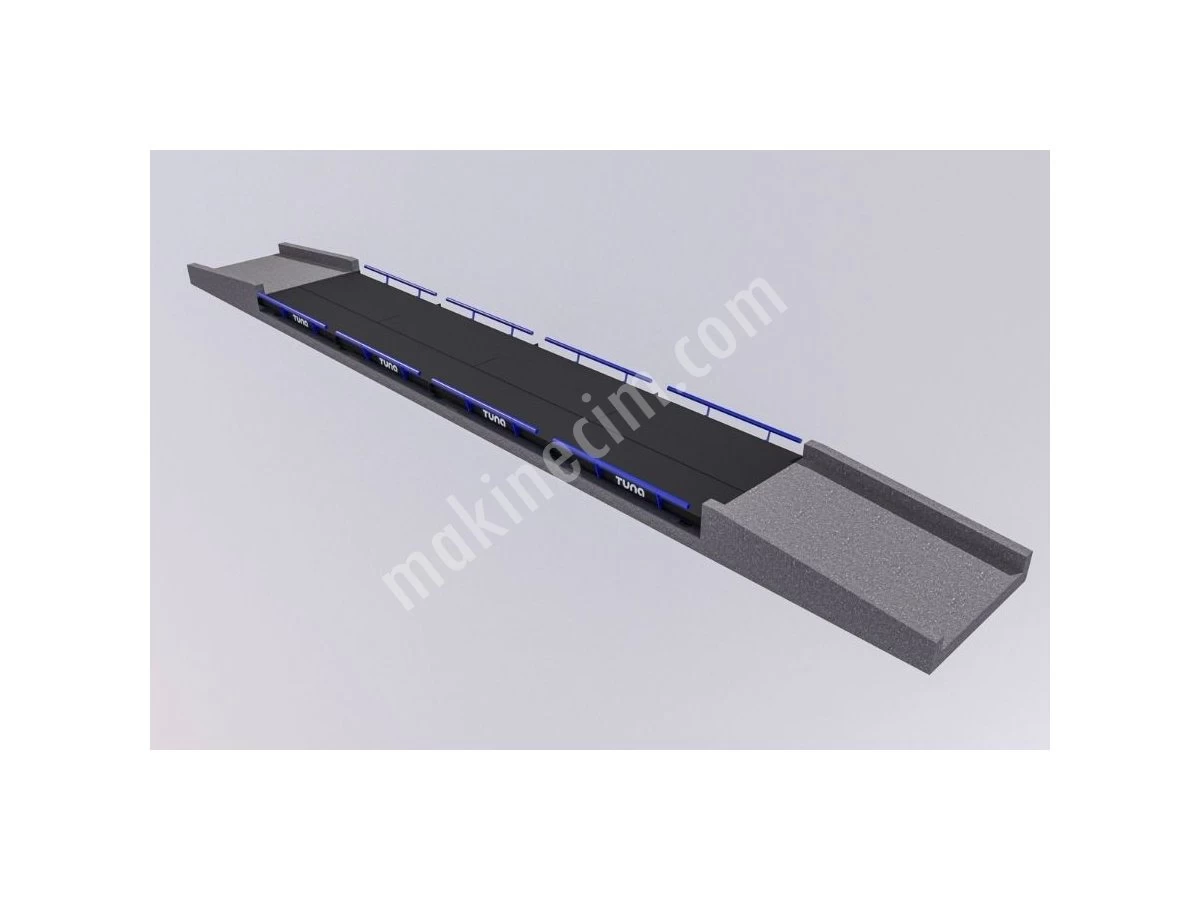

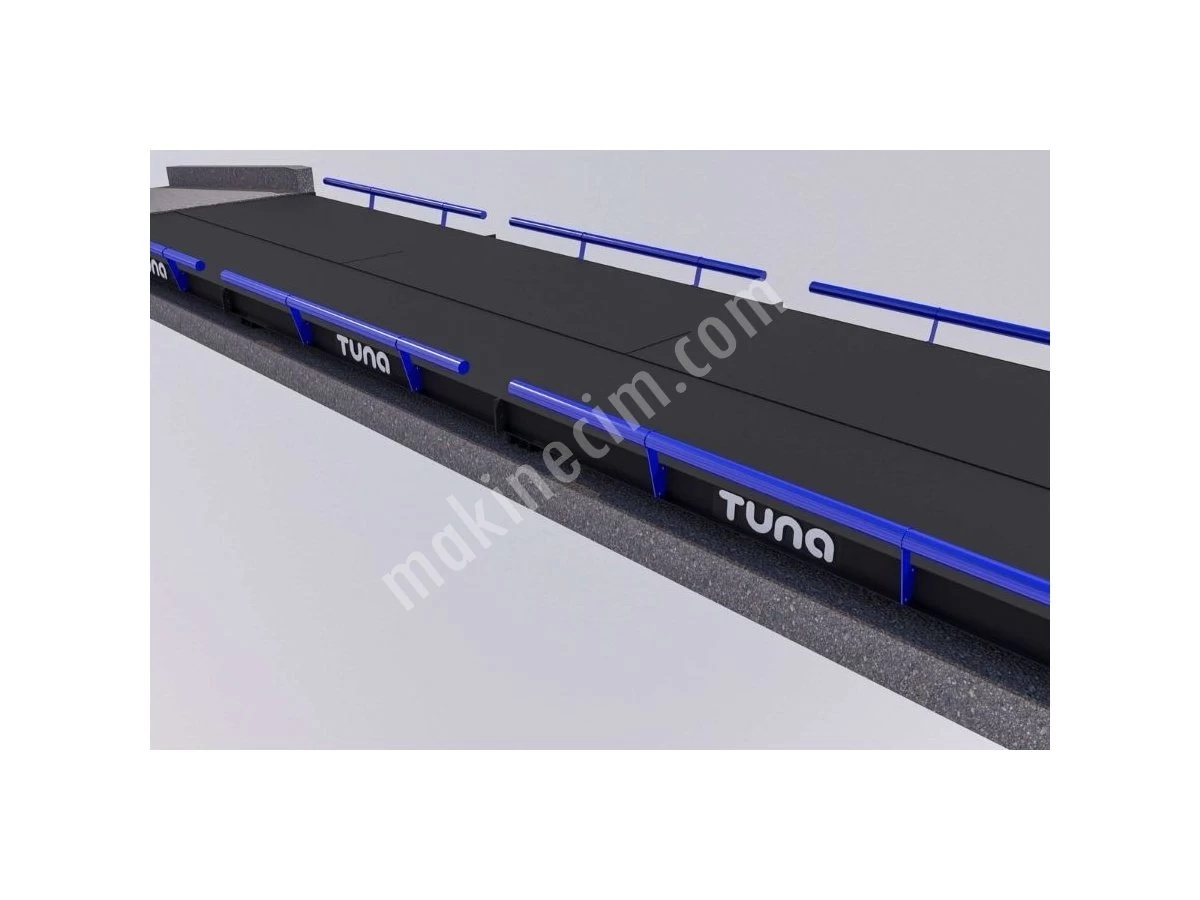

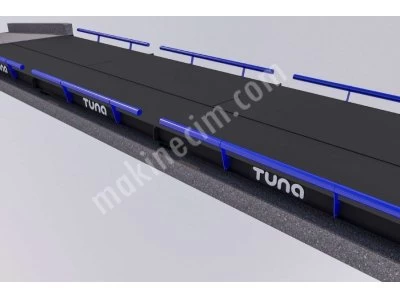

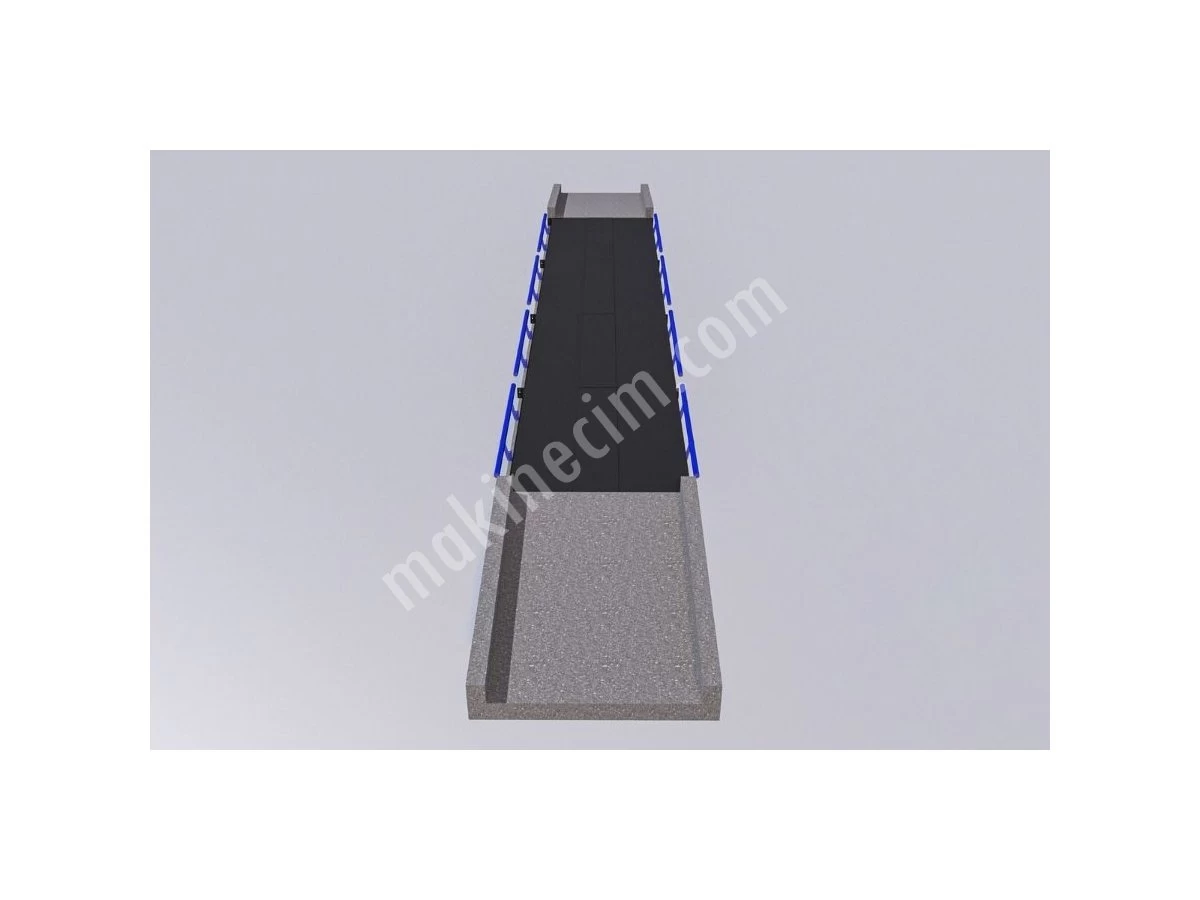

Tuna TS-4 Model is used as a raw material purchase-sales scale in stock areas, factory entrances, as well as being a self-levelling mobile scale that does not require infrastructure. It is mounted on the ground. With reinforced concrete ramps, it is easy to climb onto the scale. The scale consists of 3 parts and ramps. It consists of concrete lobes inside the right and left steel platform.
It stands out with its robust structure and reasonable cost. It is produced by calculating the maximum strength according to the weighing capacity of 150% of the weighing capacity. The concrete in the right and left lobes is thrown as C50. With the surface hardener, the system is made durable for many years. It comes to the forefront with its economic maintenance cost. TS-4 Mobile Type Weighbridges use C4 class stainless steel CT locally produced load cells (Loadcell) in OIML R60 standards, between 4 and 10 pieces, each with a capacity of 35 tons.
| MODEL | DIMENSIONS (m.) | LOADCELL (NUMBER) | CAPACITY (TON) | TAXIMAT (KG) |
| TS-4-364 | 3X6 | 4 | 40 | 20KG. |
| TS-4-384 | 3X8 | 6 | 40-50-60T | 20KG. |
| TS-4-3106 | 3X10 | 8 | 40-50-60T | 20KG. |
| TS-4-3126 | 3X12 | 8 | 40-50-60T | 20KG. |
| TS-4-3146 | 3X14 | 10 | 60-80T | 20-50KG |
| TS-4-3168 | 3X16 | 10 | 60-80-100T | 20-50KG. |
| TS-4-3188 | 3X18 | 10 | 60-80-100T | 20-50KG. |
| TS-4-3208 | 3X20 | 10 | 60-80-100T | 20-50KG. |
| TS-4-3228 | 3X22 | 12 | 60-80-100T | 20-50KG. |
Detailed information: TS-4 Above Ground Truck Scale
