Ts-2 Electronic Truck Scale
| Price : | Ask For Price |
| Ad Code : | M-431915 |
| Ad Type : | For Sale - New |
| Views : | 170 |
| Date Updated : | 16 Apr 2025 |
| Production Type : | Brand |
| Brand : | Tuna Tartı Ve Elektronik Sistemler Ltd. Şti |
| Model : | Ts-2 |
Tuna Tartı Ve Elektronik Sistemler Ltd. Şti.
Türkiye - İzmir - Bornova
1202/2 Sokak No:31 K:1 D:112 Gıda Çarşısı İşhanı Konak, İzmir - Türkiye
Ts-2 Electronic Truck Scale Ad Description

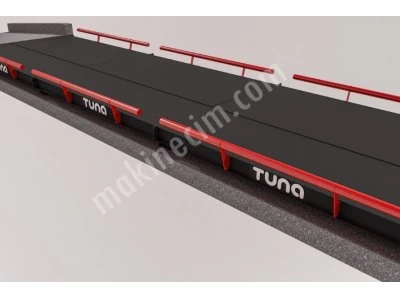

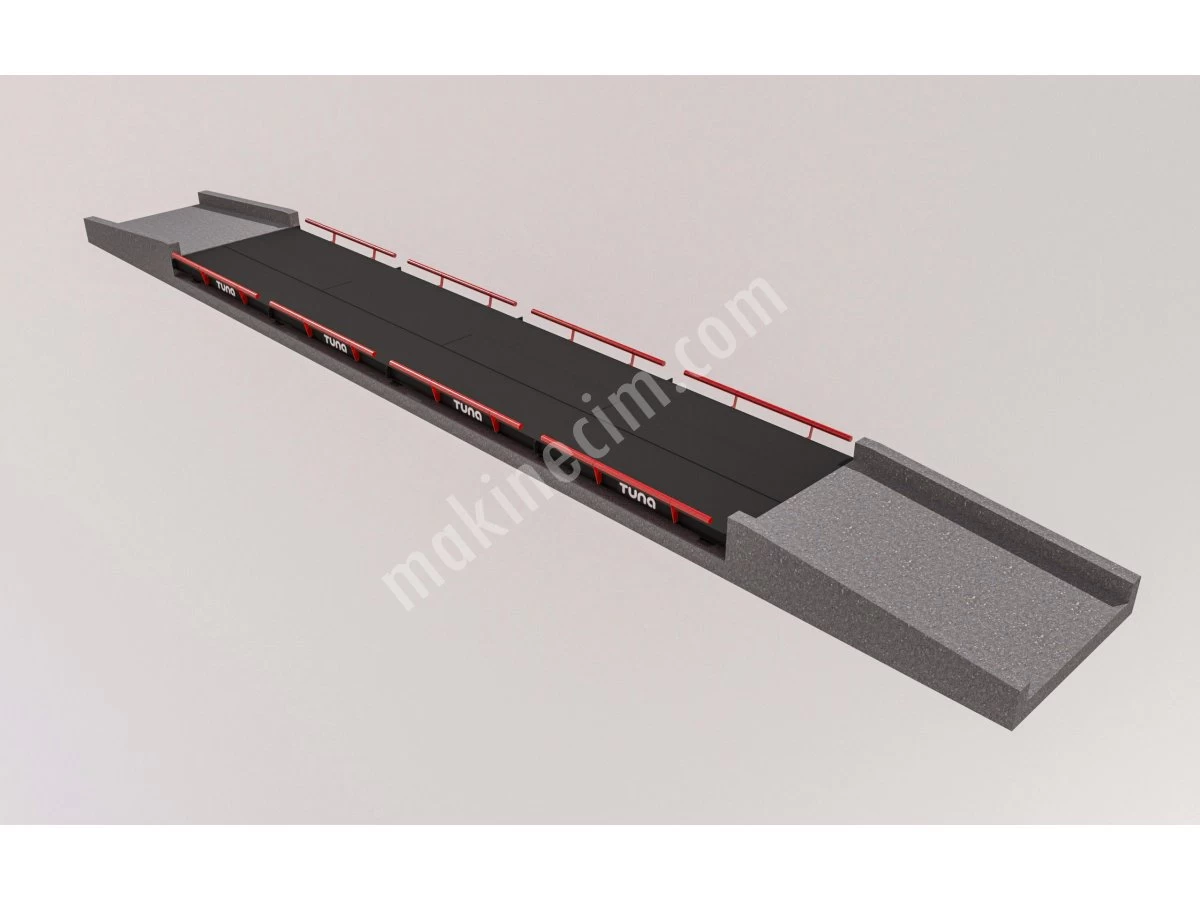

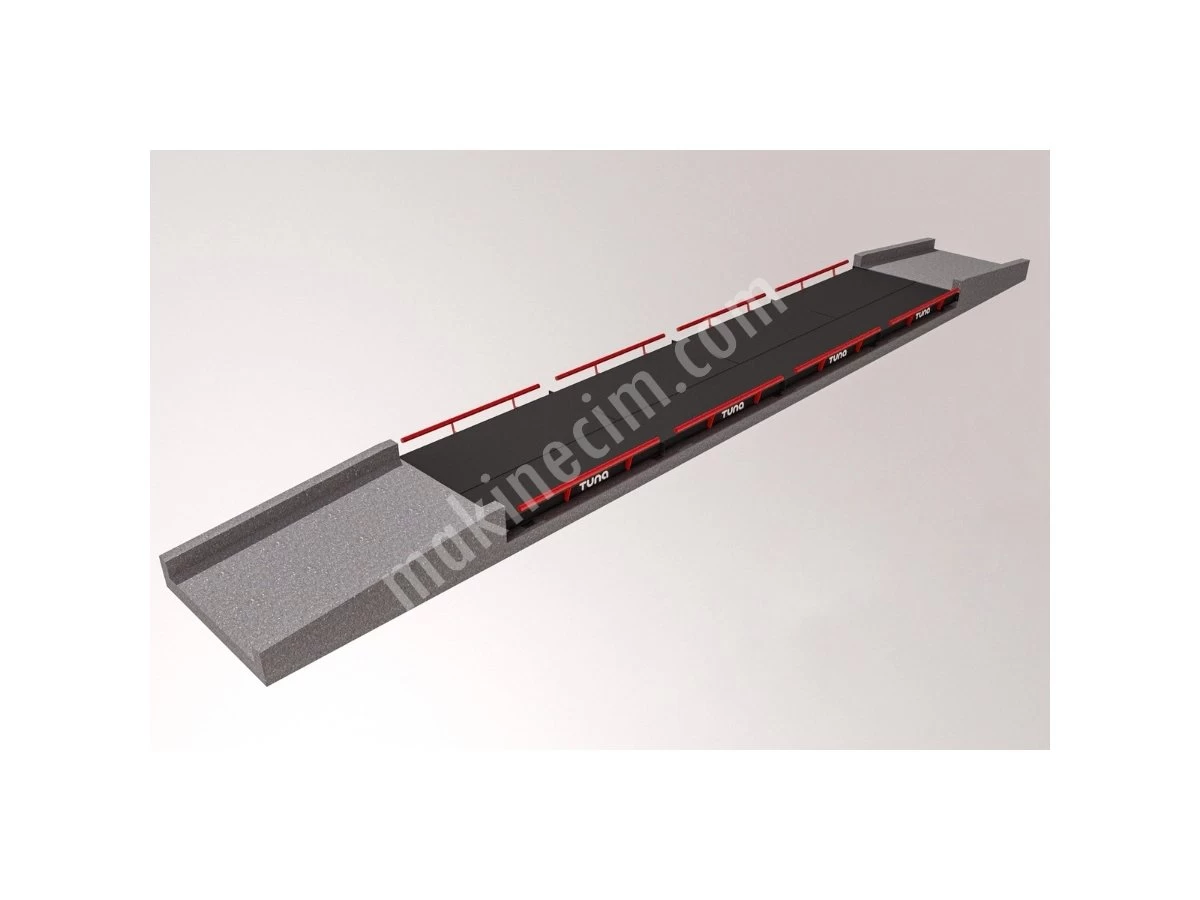

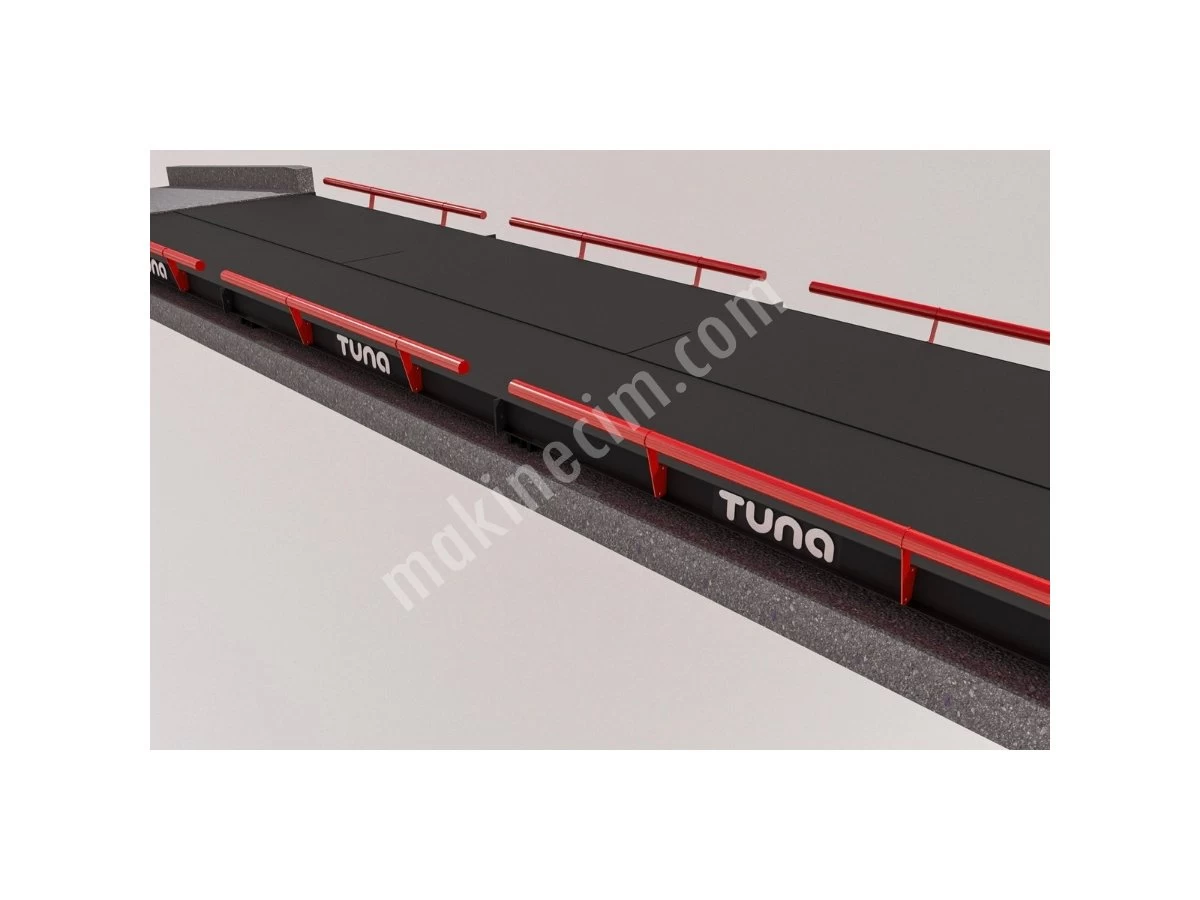

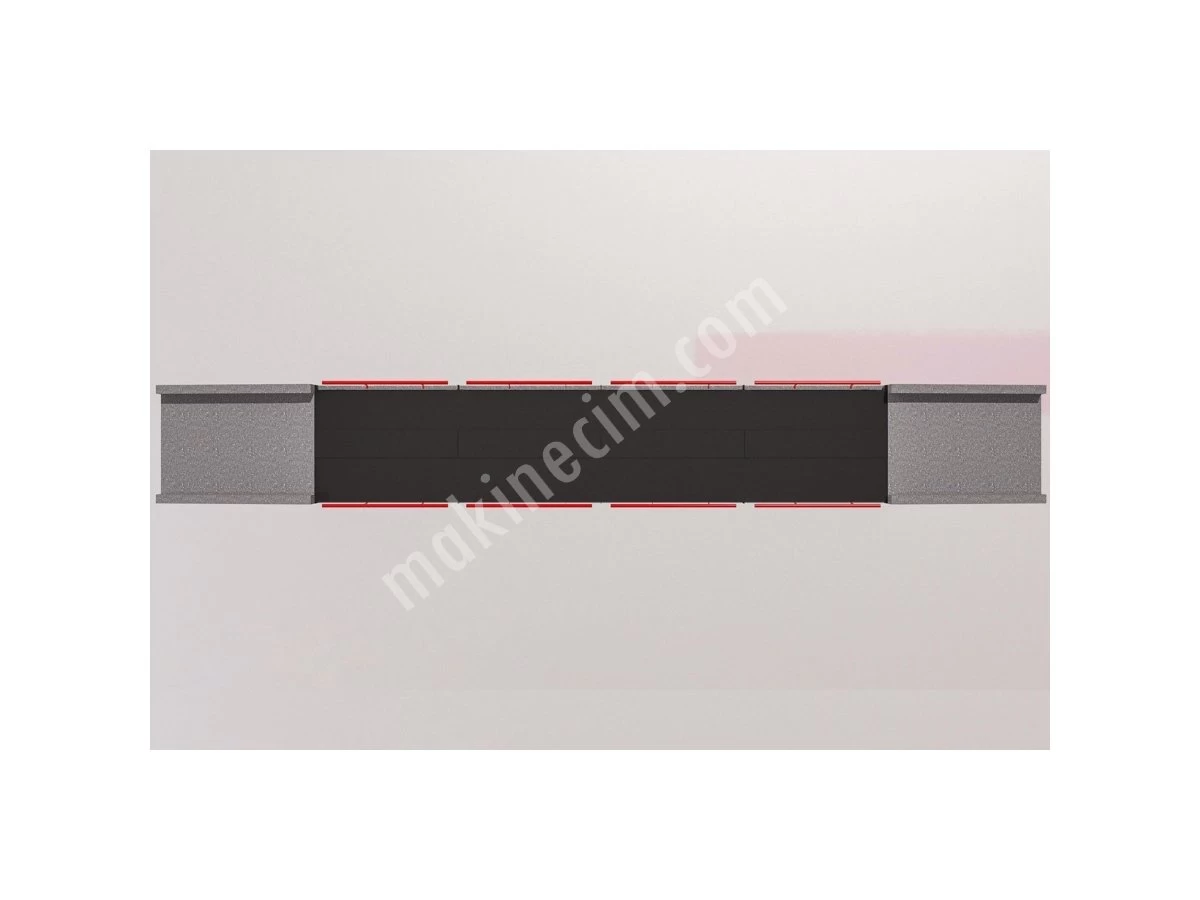

TS-2 Series truck scales have a complete steel platform. It is mounted on the ground, it can be easily reached on the scale with reinforced concrete ramps, it is the preferred model produced with the "V" beam system. It is a modular scale. The scale consists of 6 parts and is very easy to install and then disassemble and install. The barrier system on the right and left is produced by calculating the maximum strength. In TS-2 series scales, 4 to 10 units of 30 tons capacity each, C4 class stainless steel CT-30t model load cells according to OIML R60 standards are used.
| MODEL | DIMENSIONS (m.) | LOADCELL (NUMBER) | CAPACITY (TON) | TAXIMAT (KG) |
| TS-2-364 | 3X6 | 4 | 40 | 20KG. |
| TS-2-384 | 3X8 | 4 | 40-50-60T | 20KG. |
| TS-2-3106 | 3X10 | 6 | 40-50-60T | 20KG. |
| TS-2-3126 | 3X12 | 6 | 40-50-60T | 20KG. |
| TS-2-3146 | 3X14 | 6 | 60-80T | 20-50KG |
| TS-2-3168 | 3X16 | 8 | 60-80-100T | 20-50KG. |
| TS-2-3188 | 3X18 | 8 | 60-80-100T | 20-50KG. |
| TS-2-3208 | 3X20 | 8 | 60-80-100T | 20-50KG. |
| TS-2-3228 | 3X22 | 8 | 60-80-100T | 20-50KG. |
