TOWEL PRODUCTION

NO SAFE WORKING WITH OXYGEN!

WELDING BY INDUCTION.........EASY-FAST-CLEAN-SAFE-ECONOMIC

1-WORK TO BE DONE:

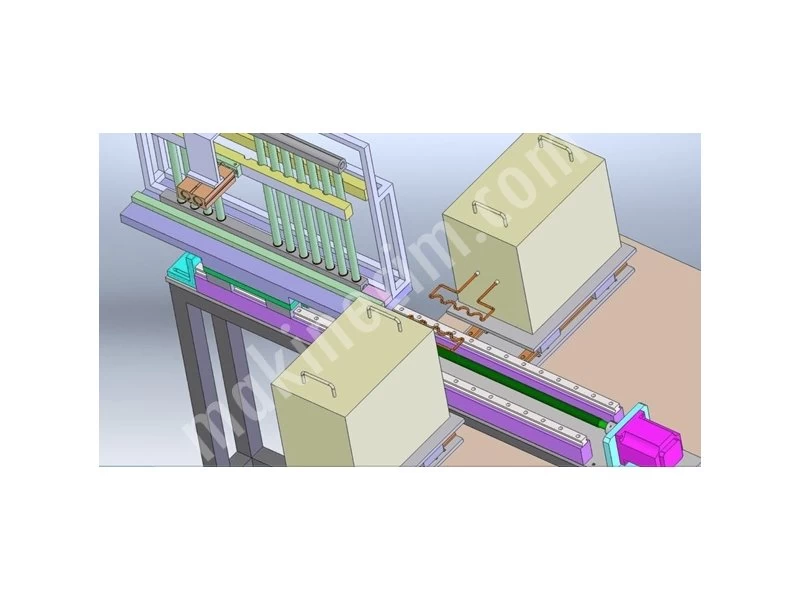

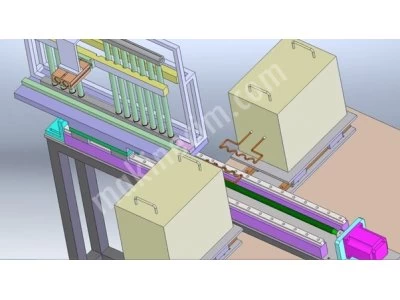

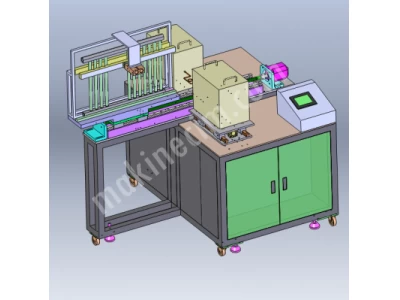

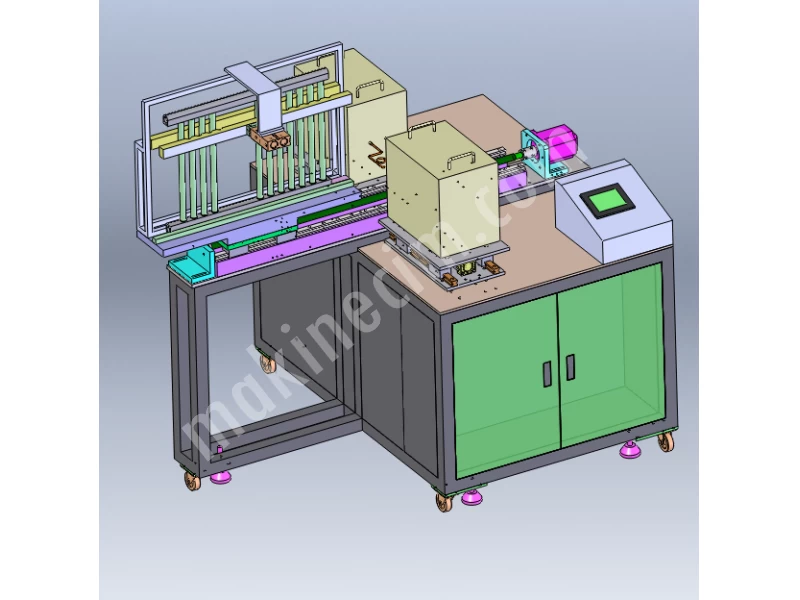

COPPER RINGS INSTALLED BETWEEN GROUPED TOWEL WALL PIPE PROFILES WILL BE WELDED IN A SERIES WAY, MUCH, AT THE SAME TIME WITH INDUCTION HEATING.

A PIPE GROUPED ON THE TOWEL,

WELDING TIME AT THE SAME TIME FROM EACH OTHER SIDES: MAX.15-20 SECONDS

  2- 25KW HIGH FREQUENCY INDUCTION HEATING MACHINE TECHNICAL SPECIFICATIONS;

POWER: 25KW

IT CAN BE ADJUSTED TO THE DESIRED POWER LEVEL AND THE POWER LEVEL CAN BE MONITORED FROM THE DIGITAL POWER INDICATOR.

FREQUENCY: 30-80KHz

Input Voltage and Frequency: Three Phase 380V / 50Hz

Working Voltage Range: 340V-430V

MAX. INPUT CURRENT: 37A

OUTPUT CURRENT: 200-1200A

Induction Machine Weight(25A): 30Kg

Induction Machine Weight(25AB): 45Kg

Induction Machine Dimensions-mm(Width x Length x Height)

Induction Generator: 560 x 220 x 505

Induction Transformer: 320x220x350

Key Features of High Frequency Induction Welding Machines:

1) With the latest advanced MOSFED and IGBT power units and frequency conversion control techniques, it provides high efficiency, low energy consumption and higher energy efficiency.

2) In the heating processes of metals, it is highly effective with its constant current, constant power control function, and it shows a high advantage with a noticeable effect in rapid heating of products.

3) The power consumption is half of the conventional lamp high frequency induction heater devices under the same conditions.

4) It can work 24 hours non-stop with 100% efficiency. In order to improve the heating quality, the automatic control of the temperature can be achieved by equipping it with an infrared temperature detector with simple manual operation.

5) Functions such as over-current, over-voltage, short-circuit, over-heat, missing phase and water flow irregularity can be seen on the screen, and uninterrupted operation can be achieved with the high-reliability protection system.

FOR TWO-SIDED TOWEL WASHER

25KW HIGH FREQUENCY INDUCTION WELDING MACHINE

3.650.-USD + VAT / UNIT x 2 Pieces = 7.300.-USD + VAT

FACTORY DELIVERY -INSTALLATION-OPERATION-COMMITMENT-TRAINING-WARRANTY IS INCLUDED IN OUR PRICE.

WITH 25KW HIGH FREQUENCY INDUCTION MACHINE,

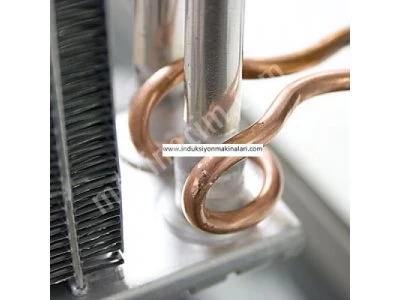

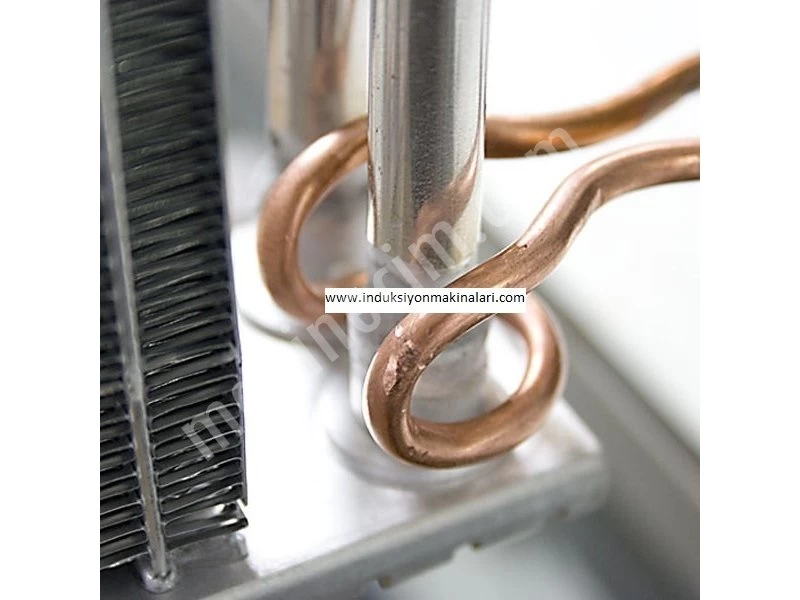

DEPENDING ON THE WORKPIECE, TWO HEATING INDUCTORS AND A TOTAL OF FOUR HEATING INDUCTORS WILL BE GIVEN TOGETHER.

ADDITIONAL REQUESTED EACH HEATING INDUCTOR PRICE IS 150.-USD+VAT.

FOR TWO 25KW HIGH FREQUENCY INDUCTION WELDING MACHINES, A WATER COOLING SYSTEM WITH 20.000 KCal COOLING CAPACITY WILL BE REQUIRED. WATER COOLING SYSTEM (CHILLER) IS NOT INCLUDED IN OUR PRICE.
