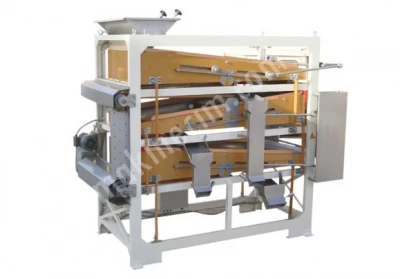

Three Deck Grading Machine

This machine enables the user to grade the product to four sizes, whether pre-cleaned or not (not necessary to clean) and or to separate the broken grains out. It can be installed before the color sorting machine for capacity enlargement. There are two standard models: fixed and mobile types.



The product is feed to inlet for optimal feed over the width of the machine. There is an adjustable feed gate which will only be adjusted when the opening needs to be bigger due to difficult floating products, i.e. fava beans. Screens (L x W = 2000 x 1000 mm) can be employed as sieves, sorters or graders, and are effectively kept clean by plastic brushes. It is not necessary to take out the brushes when changing screens.  Eccentric drive system for the screen boat is supplied standard with fixed speed or alternative frequency regulation. Three screened grades and one out put grade, in total four graded or sorted product options.



Product Code	007/1	007/2	007/3	007/4	007/5	007/6	007/8	007/10
Product Name	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator
Screen No	1	2	3	4	5	6	8	10
Screen Diameters 1000x2000 mm Sieve Screen area m2	2 m2	4 m2	6 m2	8 m2	10 m2	12 m2	16 m2	20 m2
Number of Grading Options	2	3	4	5	6	7	9	11
Perfortraded Screen  Brush No	5	10	15	20	25	30	40	50
Total power	1,47 kw	2,05 kw	2,95 kw	2,25 kw	2,95 kw	2,95 kw	3,75 kw	3,75 kw
a	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	5470 mm	5470 mm
b	1300 mm	2000 mm	2300 mm	3050 mm	3560 mm	4100 mm	3050 mm	3500 mm
c	1850 mm	1850 mm	2050 mm	2050 mm	2050 mm	2050 mm	2050 mm	2050 mm
