Thread Rolling Machine

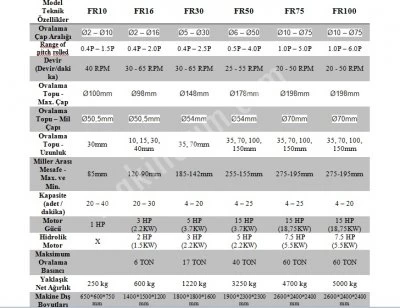

Model

Teknik Özellikler

FR10

FR16

FR30

FR50

FR75

FR100

Ovalama Çap Aralığı

Ø2 – Ø10

Ø2 – Ø16

Ø5 – Ø30

Ø6 – Ø50

Ø10 – Ø75

Ø10 – Ø75

Range of pitch rolled

0.4P – 1.5P

0.4P – 2.0P

0.4P – 2.5P

0.5P – 4.0P

1.0P – 5.0P

1.0P – 6.0P

Devir    (Devir/dakika)

40 RPM

30 - 65 RPM

30 - 65 RPM

25 - 55 RPM

20 - 50 RPM

20 - 50 RPM

Ovalama Topu - Max. Çap

Ø100mm

Ø98mm

Ø148mm

Ø178mm

Ø198mm

Ø198mm

Ovalama Topu – Mil Çapı

Ø50,5mm

Ø50,5mm

Ø54mm

Ø54mm

Ø70mm

Ø70mm

Ovalama Topu - Uzunluk

30mm

10, 15, 30, 40mm

35, 70mm

35, 70, 100, 150mm

35, 70, 100, 150mm

35, 70, 100, 150mm

Miller Arası Mesafe - Max. ve Min.

85mm

120-90mm

185-142mm

255-155mm

275-195mm

275-195mm

Kapasite (adet / dakika)

20 – 40

20 – 30

4 – 20

4 – 25

4 – 25

4 – 20

Motor Gücü

1 HP

3 HP (2.2KW)

5 HP (3.7KW)

15 HP (3.7KW)

15 HP (18,75KW)

15 HP (18,75KW)

Hidrolik Motor

X

2 HP (1.5KW)

3 HP (2.2KW)

5 HP (2.2KW)

7.5 HP (5.5KW)

7.5 HP (5.5KW)

Maksimum Ovalama Basıncı

6 TON

17 TON

40 TON

60 TON

60 TON

 Yaklaşık Net Ağırlık

250 kg

600 kg

1220 kg

3250 kg

4700 kg

5000 kg

Makine Dış Boyutları

650*600*750mm

1400*1500*1200mm

1800*1800*1600mm

1900*2300*2300mm

2600*2400*2400mm

2600*2400*2400mm
