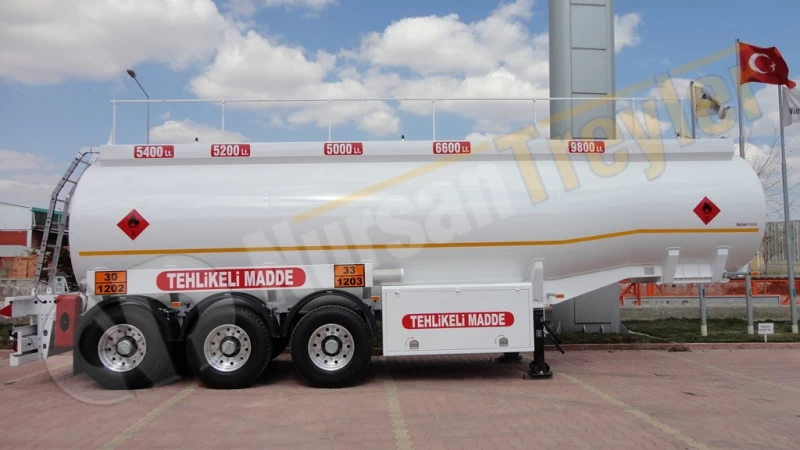

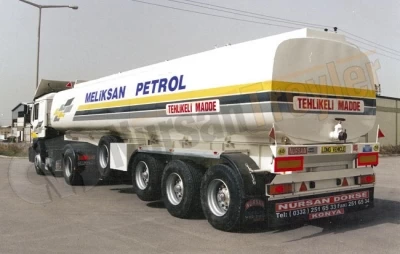

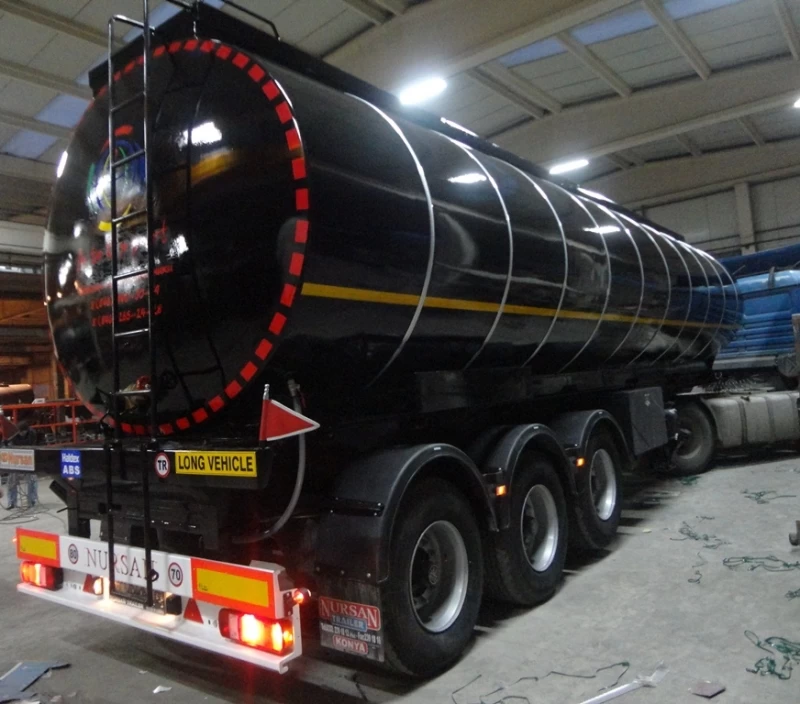

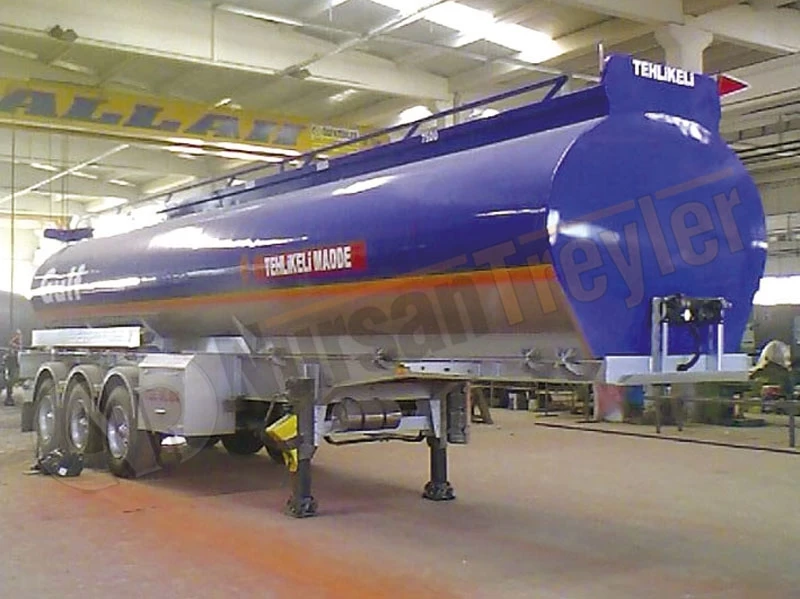

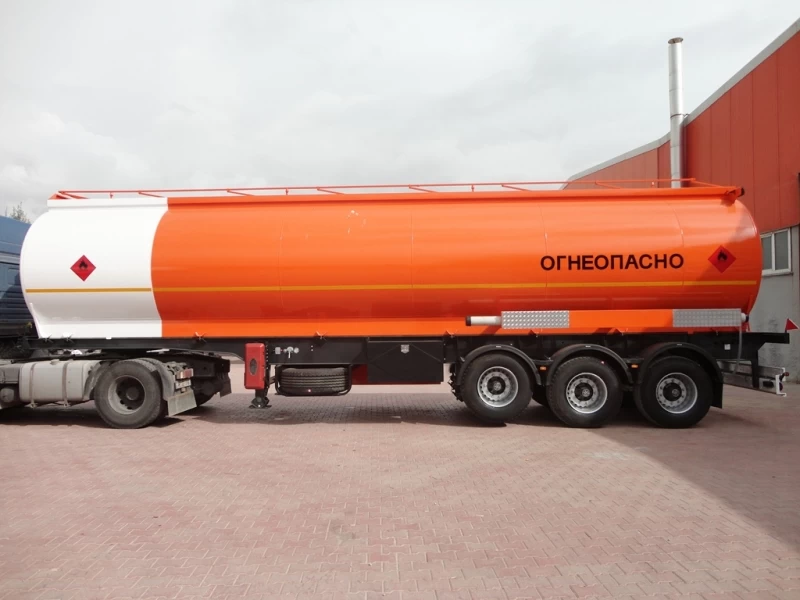

TANKER
| Price : | Ask For Price |
| Ad Code : | M-177605 |
| Ad Type : | For Sale - New |
| Views : | 379 |
| Date Updated : | 05 Dec 2024 |
| Production Type : | Brand |
| Brand : | Nursan Treyler |
Nursan Treyler
Türkiye - Konya - SELÇUKLU
Konya Organize Sanayi Bölgesi 20. Sk. No: 14
Selçuklu/Konya/ TÜRKİYE
TANKER Ad Description
TECHNICAL SPECIFICATION
CHASSIS
It is manufactured by using inert-gas welding machinery from/out of high durable steel .Overloadings had been taken into consideration at the durability calculations.
AXLE
It is manufactured in accordance with the European standards. It has a carrying capacity of 3-12 tons and donated with an automatic adjusting break lever. NURSAN BRAND
AIR SUSPENSION
It consists of of raising and lowering and highness adjusting system; parabolic z trusses and shock absorber elements which limiting overloading axle movement.
FRONT AXLE LIFTING
Front lifting system can be controlled from inside the cabinet.
BRAKE
Brake is designed in accordance with the European standards. WABCO-HALDEX products are used as Equipments. Automatic break ratchets, break ventil, break bellows (30cm cylinder), break lining pads (429 x 200 mm.) and the axle brakes are equipped with ABS system. There are two replaceable and protected break sockets in front of the trailer.
LANDING GEAR
mechanic gears (feet), which are double revolution and each has a capacity of bearing 24 tons.
TYRE
6+1 tubeless tyres with the dimensions 385/65 R 22,5 Bridgestone or Lassa
KING-PIN
It is made of forged steel (42 Cr Mo 4) which is coherent to 2”SAE/DIN” norms and durable against high level stretching and breakings.
It can be replaceable via screw connections.
DYE (paint)
All the surfaces are cleaned under high pressure with water and bonder chemical liquid. Then it is dyed with one coat of epoxy die, and a last coat of acrylic die. It is very durable against chemical effectiveness. As desired, colours can be chosen from the RAL codes.
