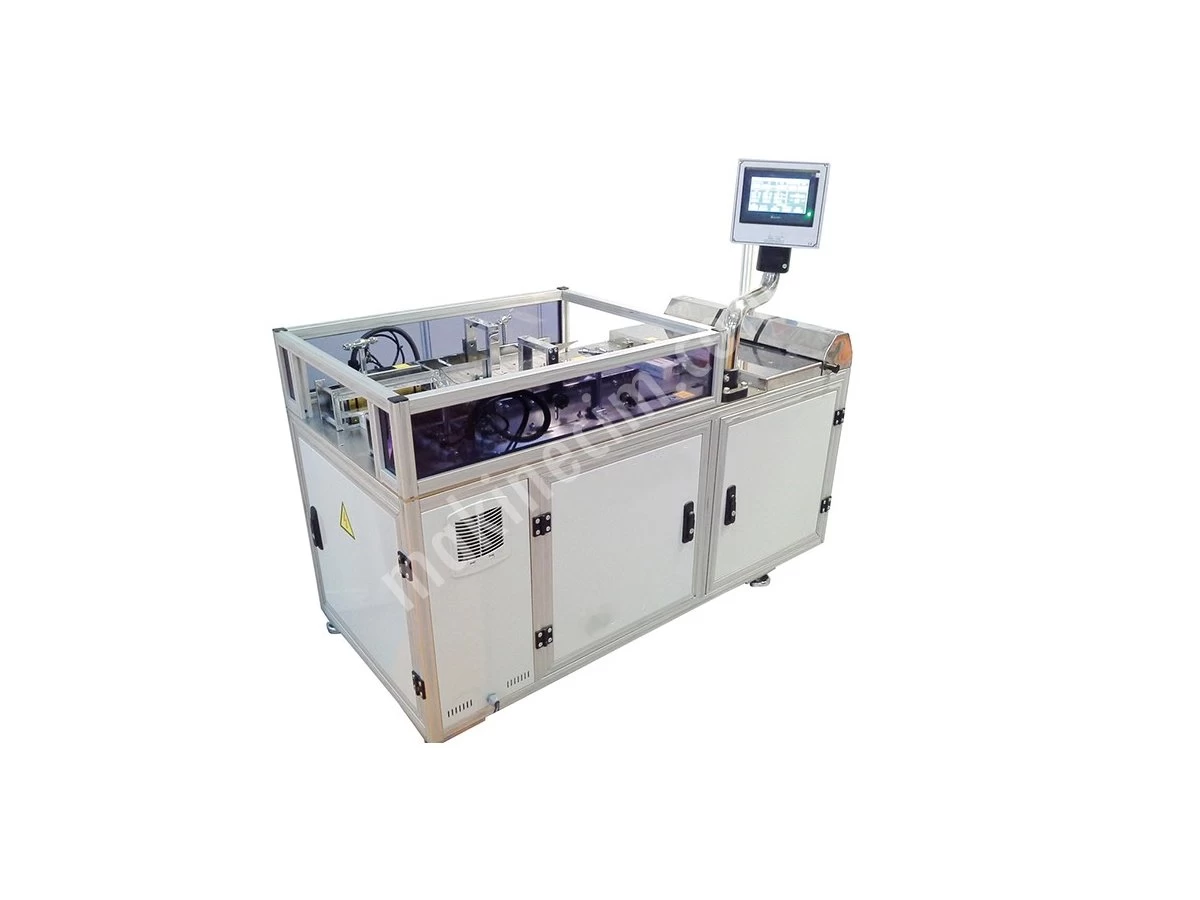

The Tahini, Molasses, Honey, Or Peanut Butter Mini Stick Packaging Machine is designed for the automatic wrapping of small to medium-sized square or rectangular boxes in single or row arrangement in a letter type packaging model. This user-friendly machine allows for easy operation through a touch screen, thanks to its encoder system-controlled PLC that facilitates quick mold changes. Feeding can be done manually or automatically, depending on the box's position on the production line. For ease of opening, an opening tape can be attached to the external film of the boxes. Optional features such as a photoelectric cell system and date coding equipment can be added when using colored or printed external films.
| Machine Dimensions |
H190 x W100 x L430 cm |
| Weight |
950 Kg / 1,100 Kg |
| Feeding Belt Dimensions |
H90-100 x W25-30 x L140-150 cm |
| Power |
3.5 kW, 380/400 VAC 3 Phase 50/60 Hz |
| Air Consumption |
6 bar/min |
| Noise Level |
70-80 Decibels |
| Capacity |
20-40 Units per Minute (depending on product volume) |
| Package Dimensions |
|
| Length (A) |
Min: 50mm / Max: 320mm |
| Width (B) |
Min: 30mm / Max: 120mm |
| Height (C) |
Min: 20mm / Max: 80mm |
| OPP, BOPP, PVC Length - Mechanically Adjustable |
Min: 110mm / Max: 420mm |
