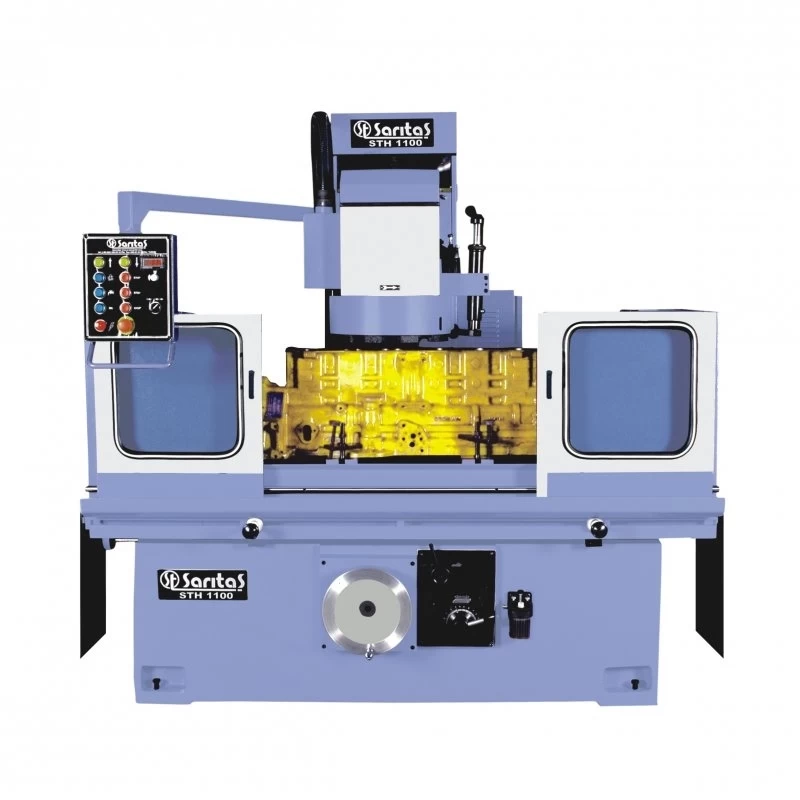

Surface Grinding and Milling Machine Sth 1100
Price :
Ask For Price
Ad Code :
M-177508
Ad Type :
For Sale - New
Views :
632
Date Updated :
08 Oct 2023
Production Type :
Brand
Brand
Sarıtaş Makina
Saritaş Motor Yenileme Makinalari
Türkiye - Konya - SELÇUKLU
2. ORGANİZE SANAYİ LALEHAN CAD. NO.5
SELÇUKLU/KONYA
Ad Description
|
TECHNICAL SPECIFICATIONS
|
STH 1100
|
|
Maximum table stroke
|
1100 mm
|
|
Table surface
|
920x310 mm
|
|
Surface to be ground
|
1170x400 mm
|
|
Minimum distance from wheel to table
|
0 mm
|
|
Maximum distance from wheel to table
|
650 mm
|
|
Segmental Wheel diameter
|
360 mm
|
|
Distance between column and wheel center
|
350 mm
|
|
Table traverse speed variable
|
0÷5700 mm/1’
|
|
Wheel rotation speeds variable
|
150÷1400 r.p.m.
|
|
Wheel head motor power
|
4 kw
|
|
Wheel head rapid speed motor power
|
0,55 kw
|
|
Hydraulic unit motor power
|
1,1 kw
|
|
Coolant unit motor power
|
0,12 kw
|
|
STANDARD EQUIPMENTS
|
QUANTITY
|
|
STD 230 Tool holder complete with tool
|
1
|
|
STD 231 Pair of parallel supports
|
2
|
|
STD 232 Clamping plate
|
4
|
|
STD 233 Grinding wheel (100x65x58x25 mm)
|
10
|
|
STD 234 Segmental wheel Ø360 mm
|
1
|
|
STD 235 Grinding wheel dresser
|
1
|
|
STD 236 Grinding wheel extractor
|
1
|
|
STD 237 Grinding wheel balancing shaft
|
1
|
|
STD 238 Automatic device for machine stop after cutting
|
1
|
|
STD 239 Surface straightness checking device
|
1
|
|
STD 240 Universal setting up fixture for V blocks (Single spindle)
|
1
|
|
STD 241 Coolant system
|
1
|
|
STD 242 Operating manual
|
1
|
|
OPTIONAL EQUIPMENTS
|
|
|
SR0116 Universal Setting-up fixture for “V” blocks complete
with 30°-45° reference square |
-
|
|
SR0117 Motor drive rotation table (320 mm)
|
-
|
|
SR0118 Universal clamping support for “V” heads
|
-
|
|
SR0119 Static balancing stand for grinding wheel
|
-
|
|
DIMENSIONS
|
|
|
Length
|
2050 mm
|
|
Height
|
1900 mm
|
|
Width
|
1330 mm
|
|
|
|
|
DIMENSIONS WITH PACKING
|
|
|
Length
|
2150 mm
|
|
Height
|
2000 mm
|
|
Width
|
1450 mm
|
|
|
|
|
WEIGHTS
|
|
|
Without packing
|
2700 kg
|
|
With packing
|
2900 kg
|
Surface Grinding, Milling Machine
