STORE CLOSED CIRCUIT TERTIARY CRUSHING SCREENING PLANT DRAGON 45

Mobile: 0555842 86 86

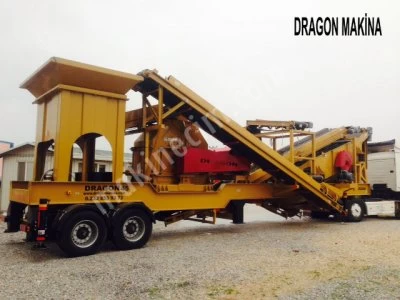

Closed-circuit system Tertiary Crushing Dragon 45

All systems were collected on a single platform , with 1 GB portable.

Designed to be in operation within 15 minutes of edilmişd .

Current world and Turkey, the construction of our most preferred in the market .

Existing machinery and equipment in the system ,

* Feeder System and Reservoir

Conveyor Belt feeder system to prevent sticking or vibration may be preferred depending on customer request ..

In this way, works smoothly and is sunulmakd minimum maintenance .

Mobile Crusher Sand Making facilities sieve or unused products are the ideal crusher .

Excavator Loader with hopper feeder and the feed conveyor is suitable in the mast while onsite .

* Dragon 45 Advanced Tertiary Crusher system

Rotor 1100 x 1000mm

Thin wall system in order provide crushers are .

Motor Power KW 110-160

Special thanks to the setting blocks Download curve revealed a very high you take it out of the Tertiary system .

Up to 50 times with high reduction ratio is unsurpassed.

* Main Conveyor Belt Conveyor System is 800 mm .

* Vibrating Screen System High Capacity Type

Size : 1500 x 4500 mm

Engine power 11 KW Floors: 3 Floor

* Screen Conveyor 800 mm Folding -type six- Stock

* Stock Conveyor 600 mm Folding type 2

* Return Conveyor Collection 1 600 mm

* Return Conveyor 2 600 mm

* Mobile Chassis Chassis System 2 -axle private constriction

* The hydraulic system has mechanisms in the six hydraulic legs , the feet kilitlendikd after 6 Fixed foot is strengthened.

Is controlled by a special control system .

Hydraulic Power System 125 Litres

* Board Material is branded Siemens .

* Panels are available in the system frequency control system . (Optional)

Uzakd the Control ( Radio Control System ) is yapılabilmekd control of all functions .

Generator System is optional Cummins, Perkins, Doosan, Deutz 6 cylinder diesel engine brands and Marelli alternator .

Capacity and supply material to be broken , which vary according to the size of the final product is 75 ? ? Capacity is 110 tons .

Tozsuzlandır System , Conveyor high-pressure water to suppress dust in the nozzle of the spray powder is blocked.

Feeders would Vibromotorl Emtaş or Italvibras , Olin is Brand .

Drive drum is rubber -coated and Gear Type .

Electric Motors GAMAK , Emtaş , is International Branded .

Rubber Conveyor Belts are Brand Derby or Eksaş .

Bearings: SKF bearings or equivalent .

Eregli Iron and Steel flat products used in the product is not A1 quality .

* Magnetic magnet (optional)

* Generator System (Optional)

* Tozsuzlandır System ( Optional)

Transport ** Dimensions: Width x Height 3000 mm x 4500 mm Length 14000 mm
