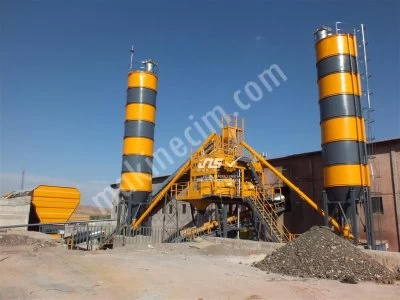

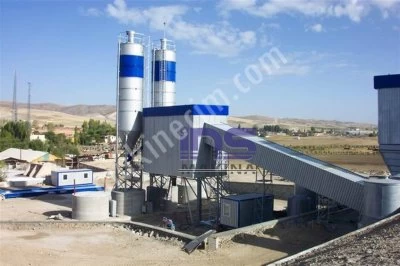

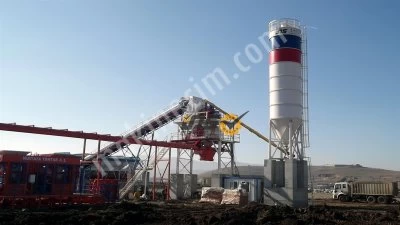

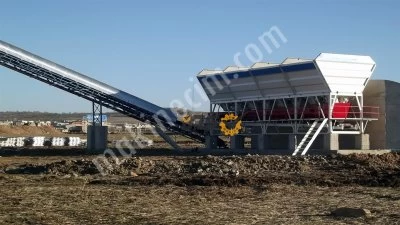

Stationary Concrete Batching Plants
Price :
Ask For Price
Ad Code :
M-157044
Ad Type :
For Sale - New
Views :
542
Date Updated :
26 Aug 2023
Production Type :
Brand
Brand
ins makina
Model :
INS BS 60 BS
Production Year :
2017
İns Makina Beton Santralleri
Türkiye - Ankara - Yenimahalle
Turgut Özal Mah. 1940. Cadde, No:81/31
Ad Description
60 m³ /h CAPACITY CONCRETE BATCHING PLANTS
Technical Specifications
| Concrete Plant capacity | : | 60 m3/h |
| Aggregate Bunker | : | Tanks: 4x20 m3 Total Volume : 80 m3 |
| Cement Silo | : | Capacity: 75 tons – 2 unit (Can optionally be bolted.) |
| Cement Spiral Conveyor | : | 2 Unit, Size : Ø 219 mm x 10000 mm WAM |
| Cement Silo Equipments | : | Upper and Lower Level Meters WAM |
| Aggregate Weighing Machine | : | 3 m3 Load cell : 4 x 2000 kg, ESIT |
| Cement Weighing Tank | : | Weighing Capacity : 600 kg , Load Cell : 1000 kg , ESIT,WAM |
| Water Weighing Tank | : | Weighing Capacity : 300 kg , Load Cell : 500 kg , ESIT,WAM |
| Additive Tank | : | Weighing Capacity : 20 kg , Load Cell : 50 kg , ESIT,WAM |
| Air Valves Board | : | MAG, Compressr 500 LT Volume, |
| Concrete Plant Automation | : | Tekno Automation |
|
Silo Top Filter (2 Units) |
: | 24 m² Cylindrical Body, Pressure Tube, Imported 4 cartridge filter |
| Intermadiate Loading Bunker | : | Capacity: 2 m3 |
| Agitator | : | 1 m3 Capacity |
| Agitator Options | : | Single Shaft Type, Planet Type,Pan type |
| Command Cabin | : | 1 Unit, 2.4 x 3 x 2.5 m |
