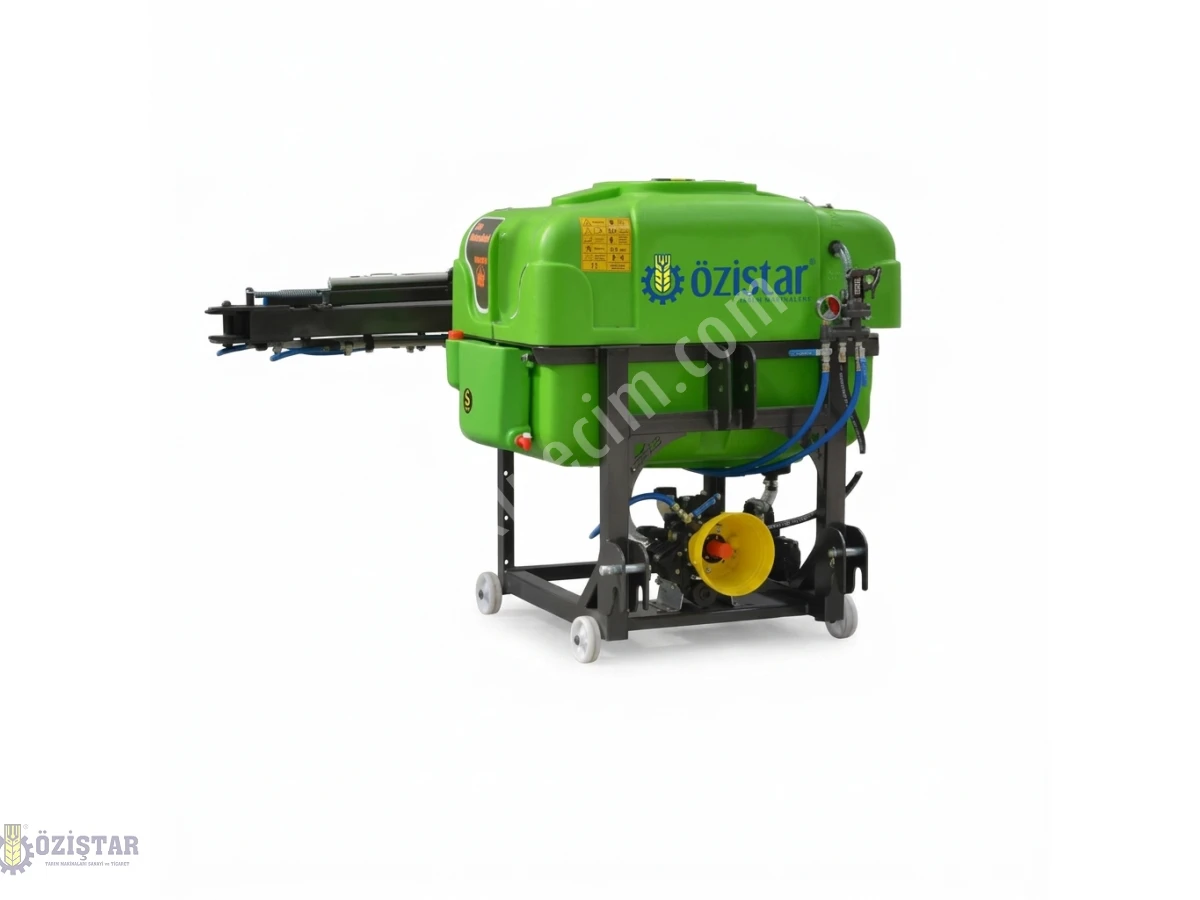

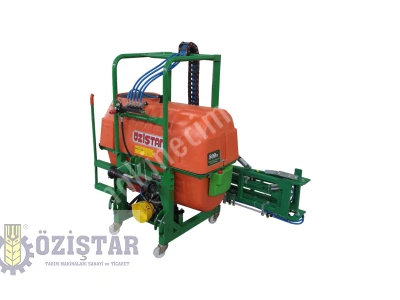

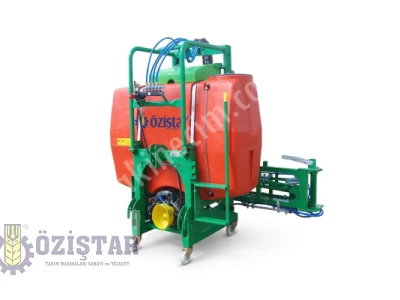

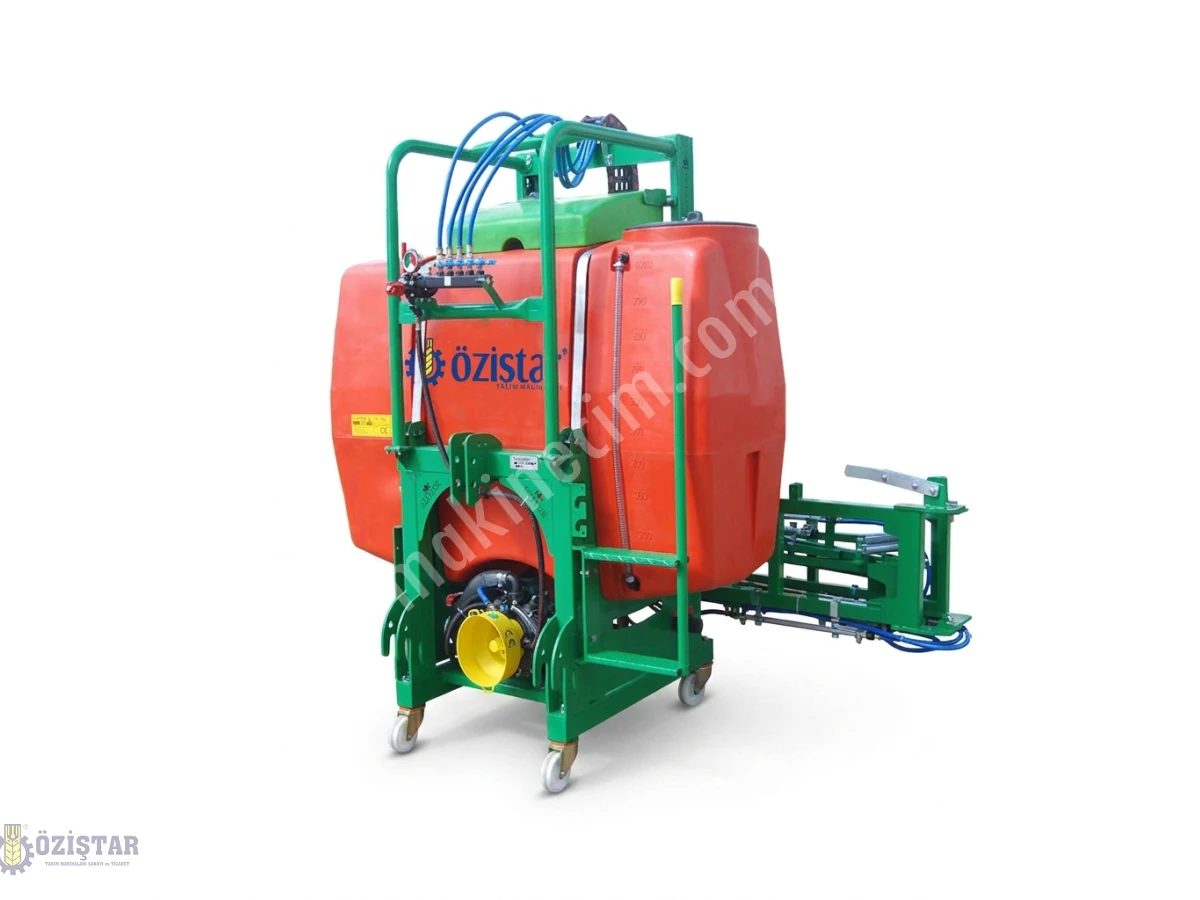

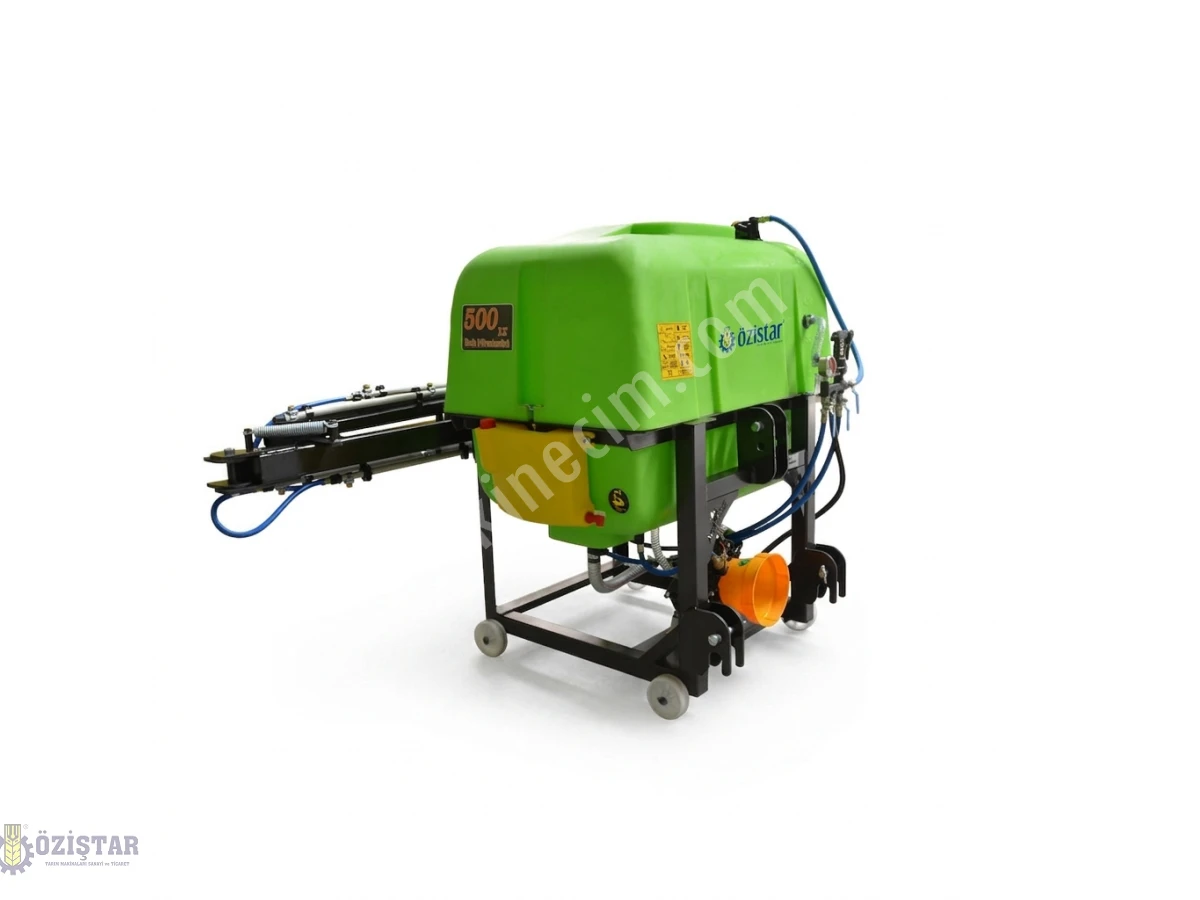

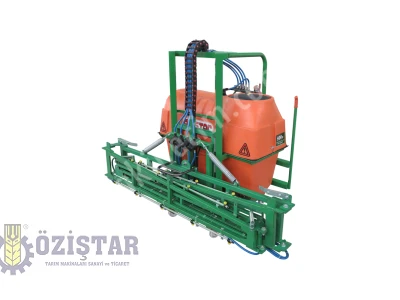

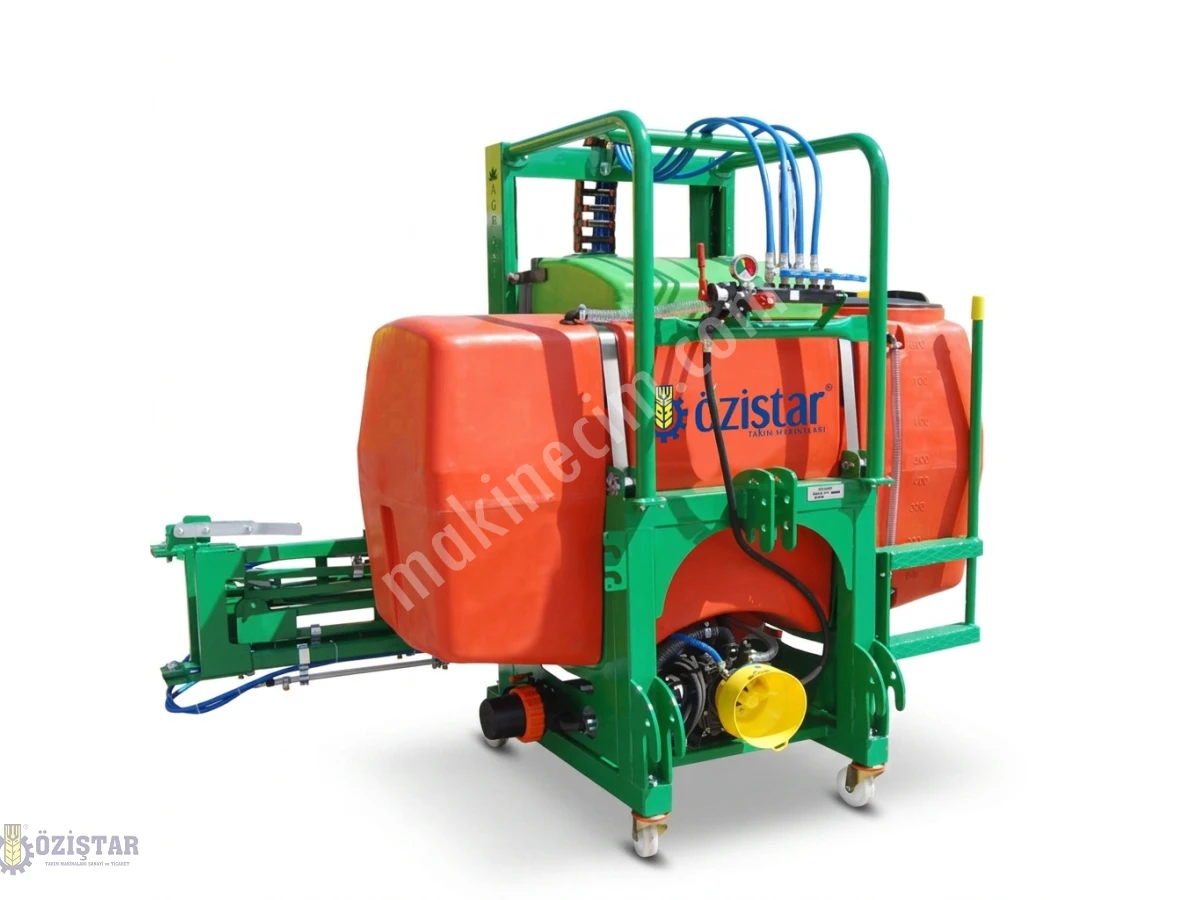

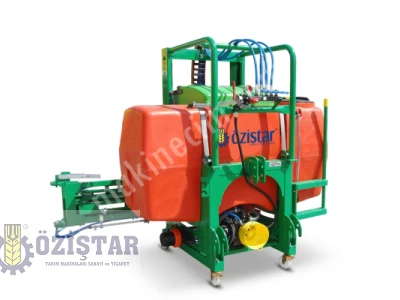

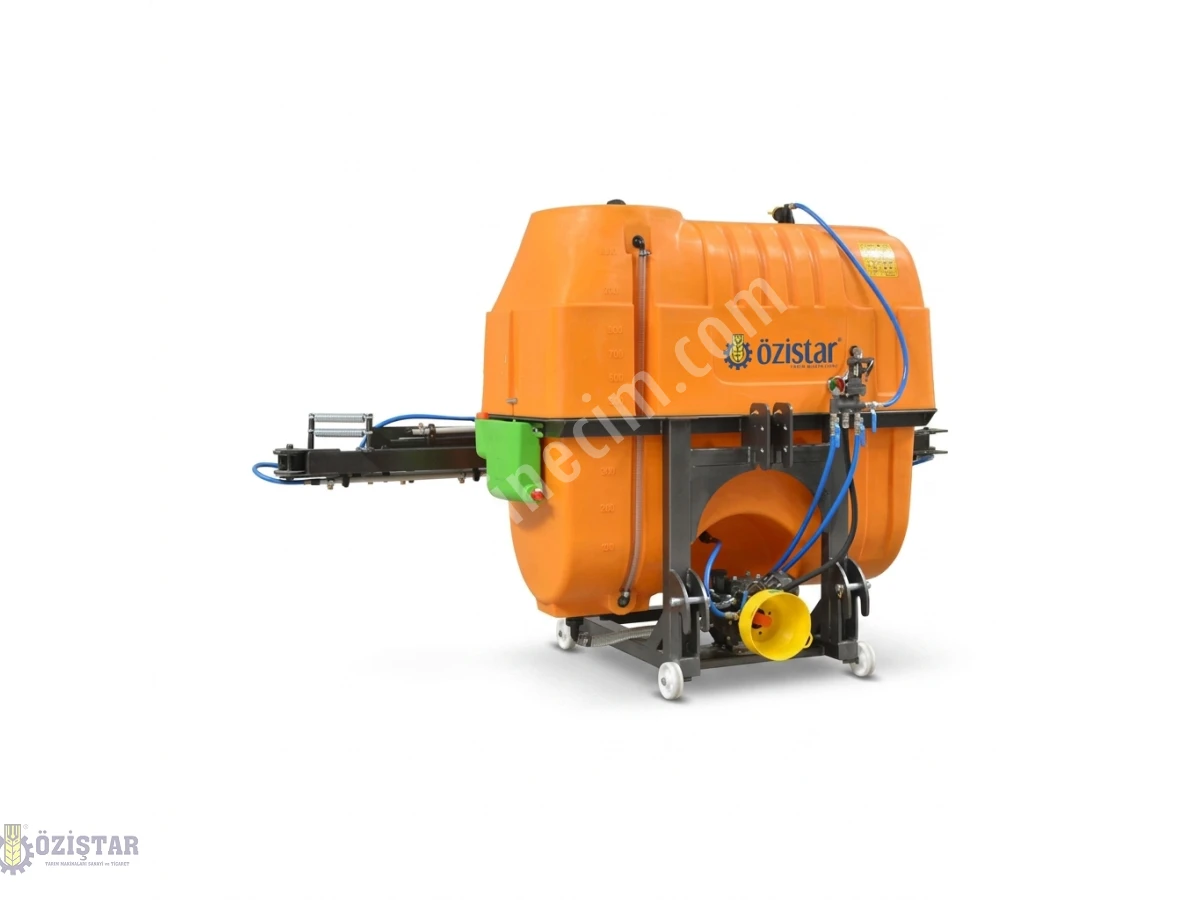

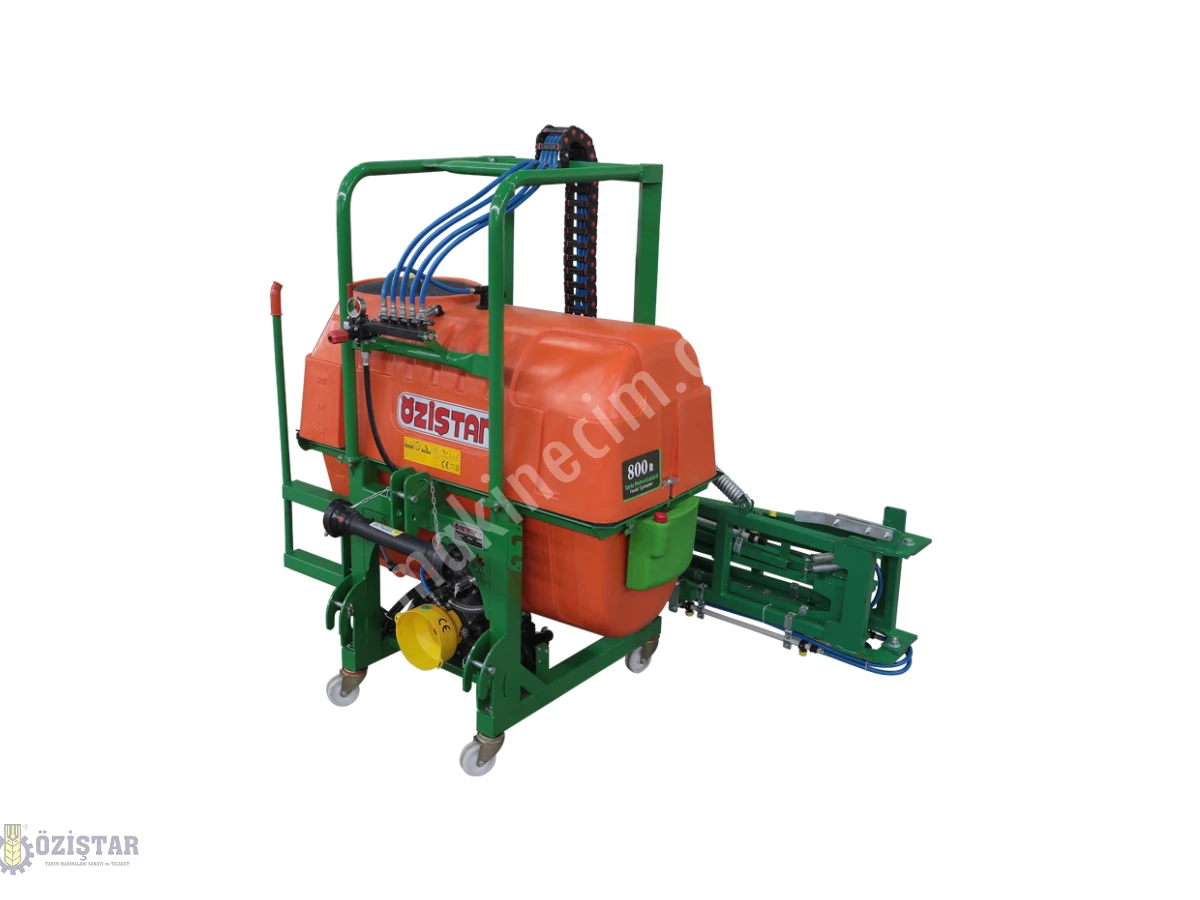

Spraying Machine, Pulverizer

For Cereals, Cotton, Sugar Beet, Grain, Corn and Similar Field Crops Agricultural Pest Control

It provides excellent results in agricultural pest control for cereals, cotton, sugar beet, grain, corn, and similar field crops, offering superior performance, easy adjustability, and high savings rate for the convenience of our valued farmers.

Tank

• Produced to be resistant to ultraviolet rays, corrosion, and the adverse effects of agricultural chemicals, and does not form bacteria or algae on its surfaces.
• Hydraulic mixing system easily mixes the chemical with water.
• The tank filler on the machine allows the chemical tank to be filled in a very short time.
• The embossed water level indicator on the spraying tanks is easily visible to the user during filling and emptying.
• An optional clean water tank independent of the spraying tank can be added to all machines.

Pump ÖZ 496 D

• Suitable for use in field spraying areas and similar places; besides spraying, it can be used for irrigation, pressure washing, and transferring all kinds of liquid chemicals.
• Valve discs and covers are stainless steel.
• All 2-3-4 piston pumps operate by receiving motion from the tractor PTO shaft via an intermediate shaft.
• This pump has an internal manifold, and surfaces in contact with chemicals are coated with anodized aluminum, making it corrosion resistant.

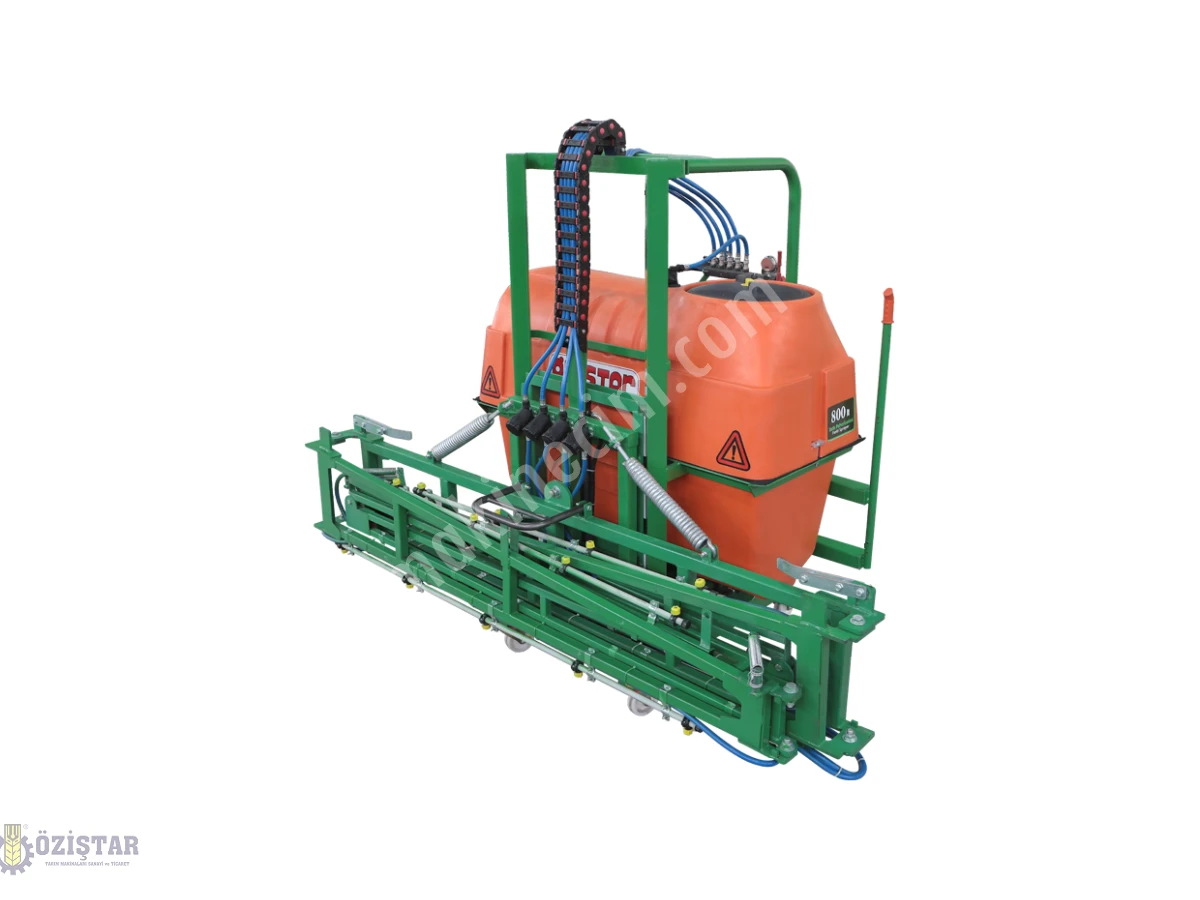

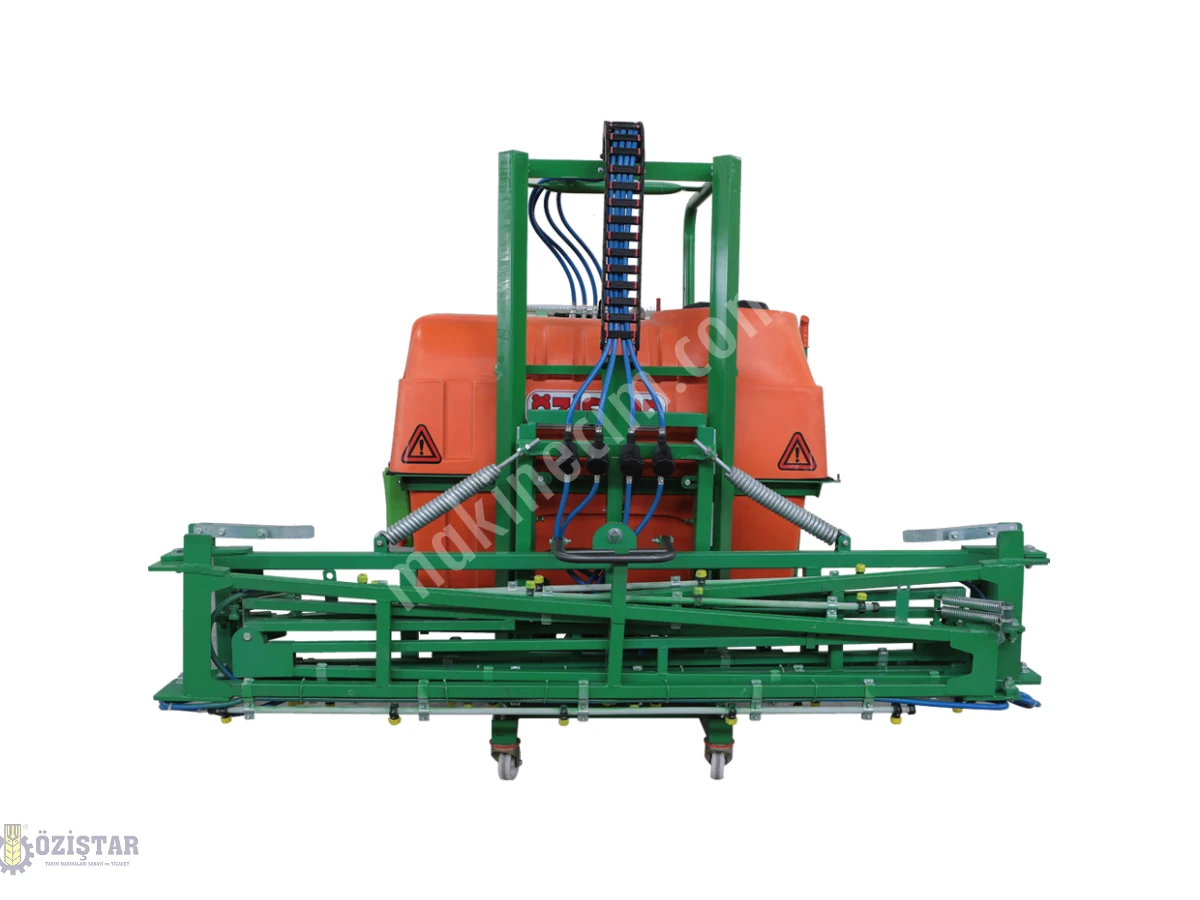

Spraying Boom

• The working width of the booms on our machines is 6 m - 8 m - 10 m - 12 m - 15 m - 16 m - 18 m, with options for fixed boom or adjustable via up/down winch mechanism or hydraulic lift to suit customer preferences.
• Spraying booms are attached to the chassis with 4 bolts.
• For stable operation on uneven terrain, the boom reflects parallel to the crop thanks to the shock absorber on the boom.
• Standard long-lasting, easy-to-clean brass-bodied clamp nozzles are used on spraying booms.
• Spray injectors are standard every 50 cm; optionally can be placed at 35 cm - 70 cm intervals.
• Pipes used on the wings are resistant to high pressure.

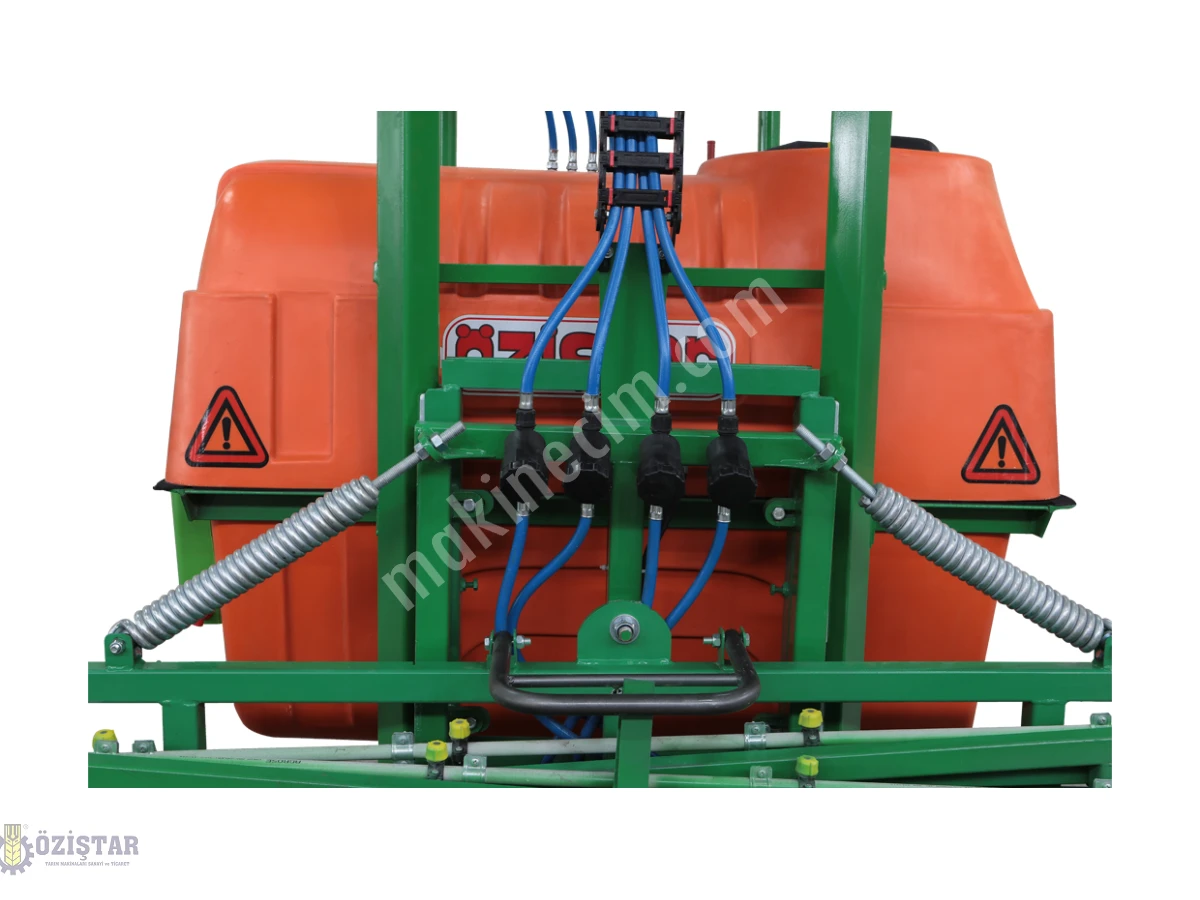

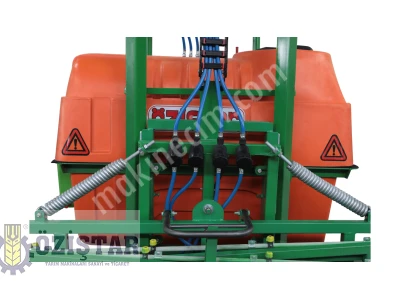

• Galvanized springs are available to facilitate wing opening.

Chassis

• Profiles used are made from ÖZ 37 material, selected for high strength and resistance coefficient.
• Protective primer paint and metal paint are applied to the chassis for added durability.

Applications

• Can be used against harmful pests and diseases affecting field crops such as cereals, sugar beet, and grain.
• Can be used to eliminate unwanted plants and weeds.

Optional Features

• Optional fan-shaped Tjet nozzles and adjustable angle atomizer nozzles with stoppers are used on spraying booms.
• 15-18 m spraying booms.
• 145 L spraying pump.
