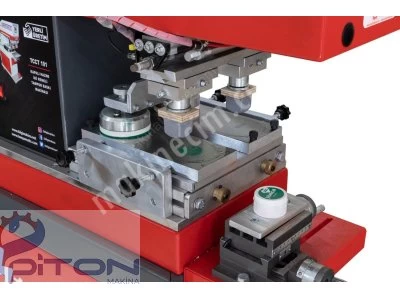

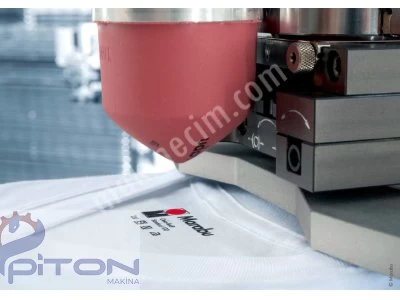

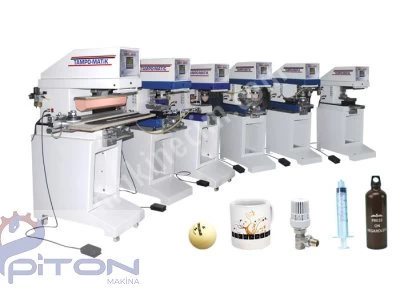

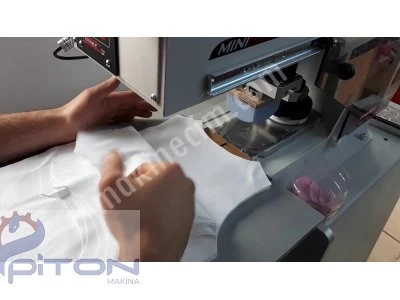

Single Color Pad Printing Machine

• Wide plate-size range (starting from 100*100 mm)
• Compression force range from 750 N to 4710 N
• Full PLC control system
• Reliable and stable automatic drive system
• Electronic lighting for a more comfortable view
• Optional machine stand and large sport for printing on larger parts

TCS101 Technical Specifications TCS101
Plate Size 100 mm x 100 mm100 mm x 150 mm100 mm x 200 mm100 mm x 400 mm120 mm x 150 mm130 mm x 200 mm

Stroke 60-150 mm

Compression Force 750-4710 N

Control Pneumatic PLC

Voltage 220 V, 50 Hz

Control Voltage 24 VDC

Power 60 W

Pressure 6 Bar

Air Consumption 60 lt/min

Size (w x h x d) 350 mm x 850 mm x 750 mm

Weight 95 kg
