Shrink Packaging Machine

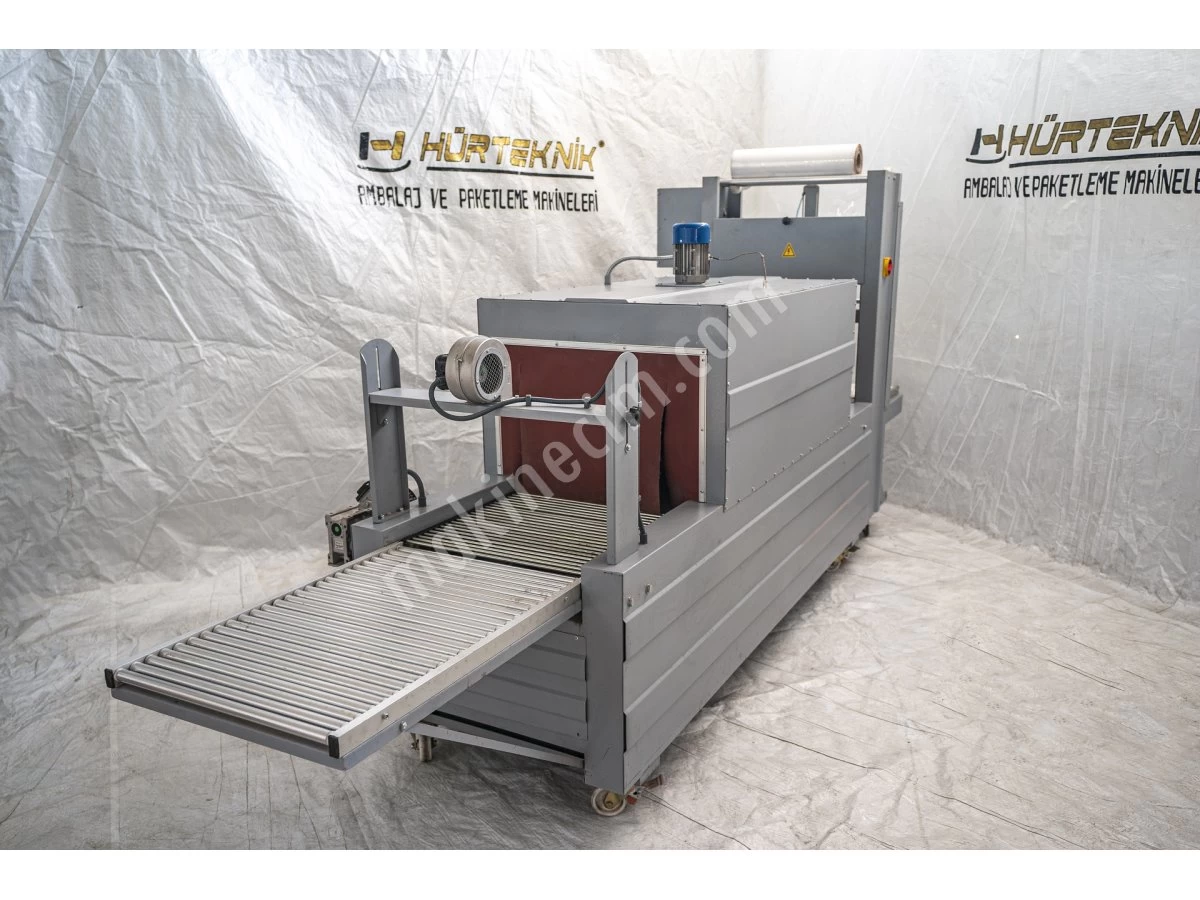

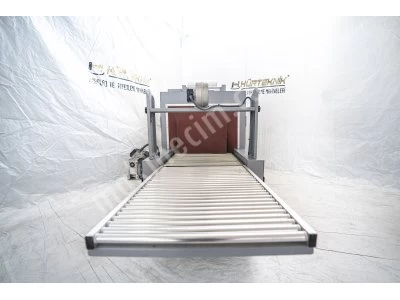

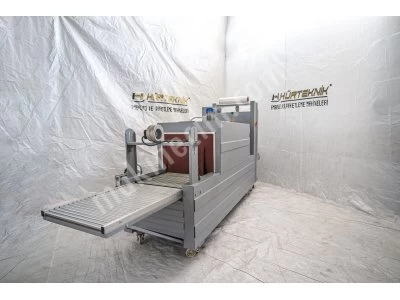

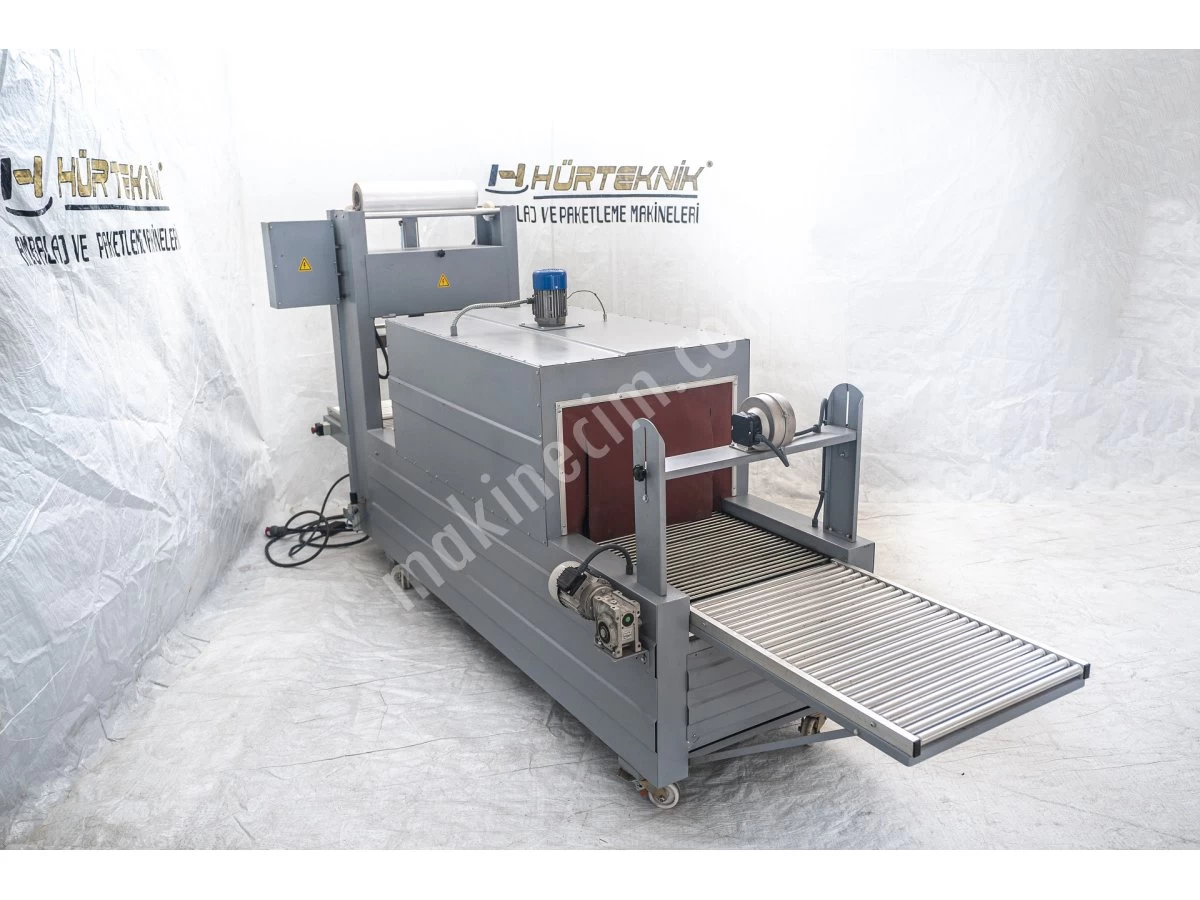

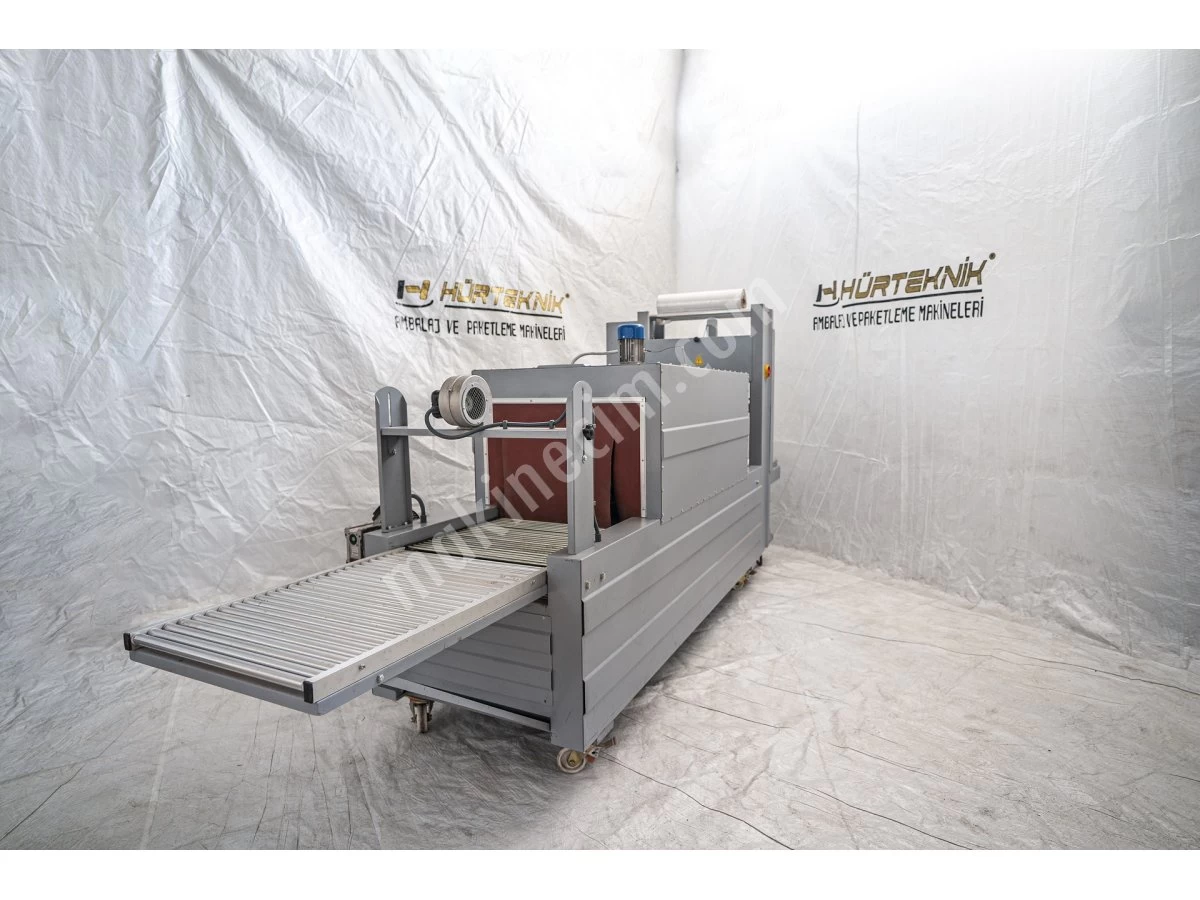

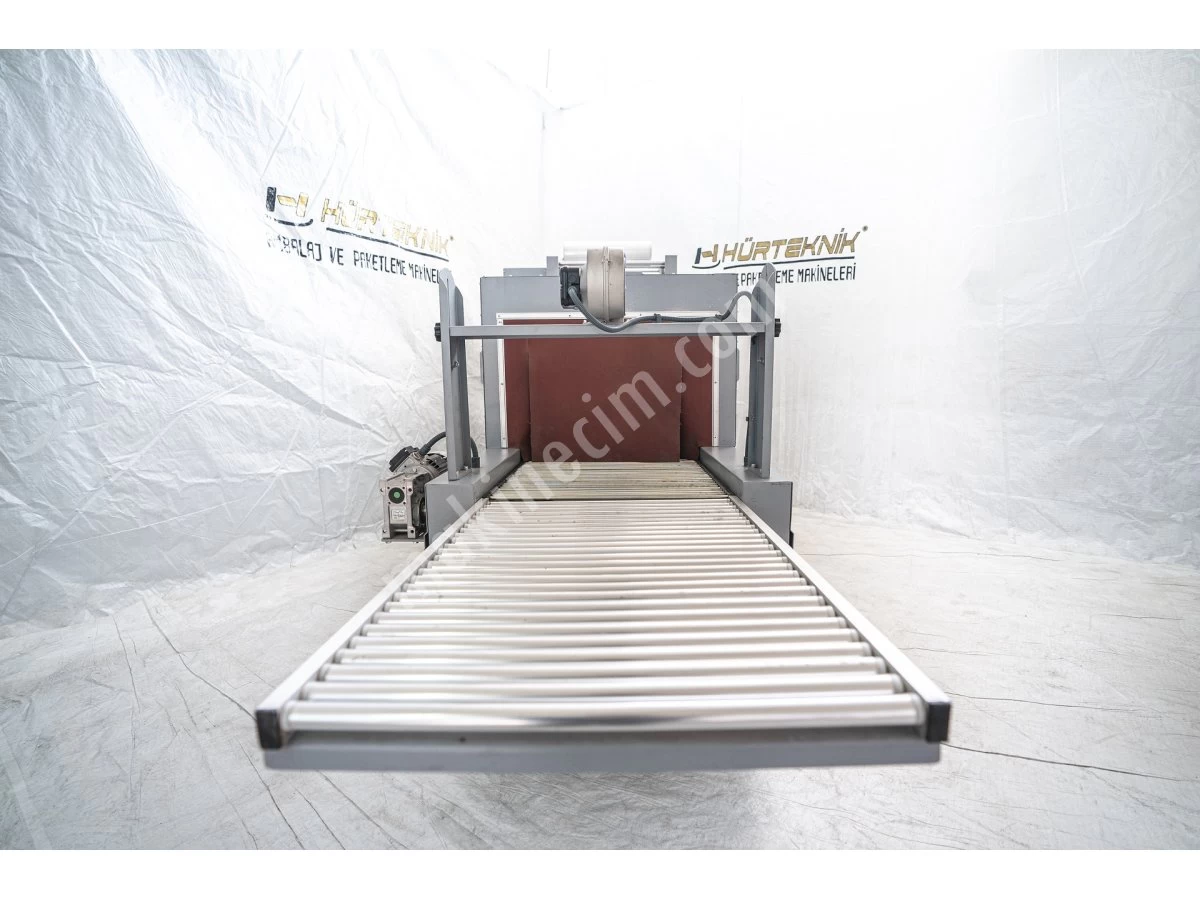

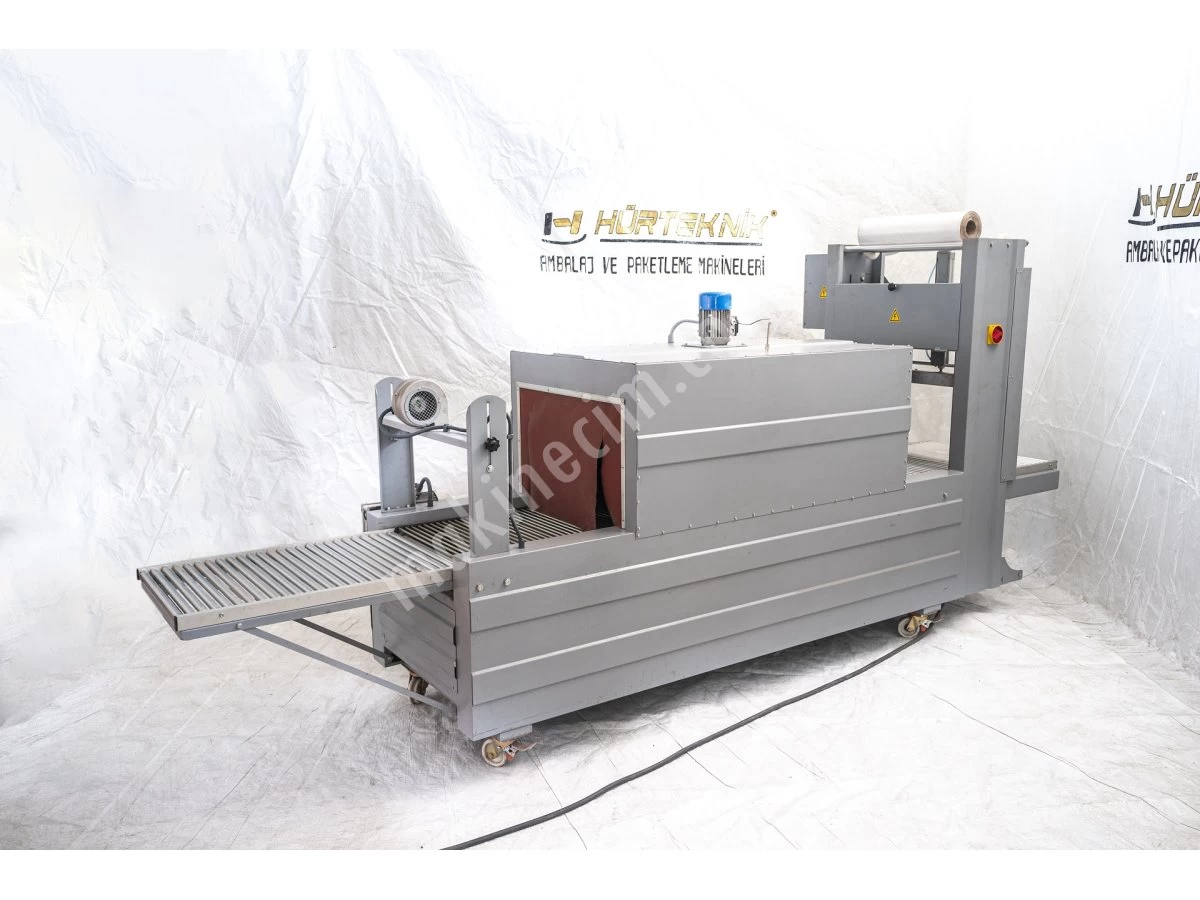

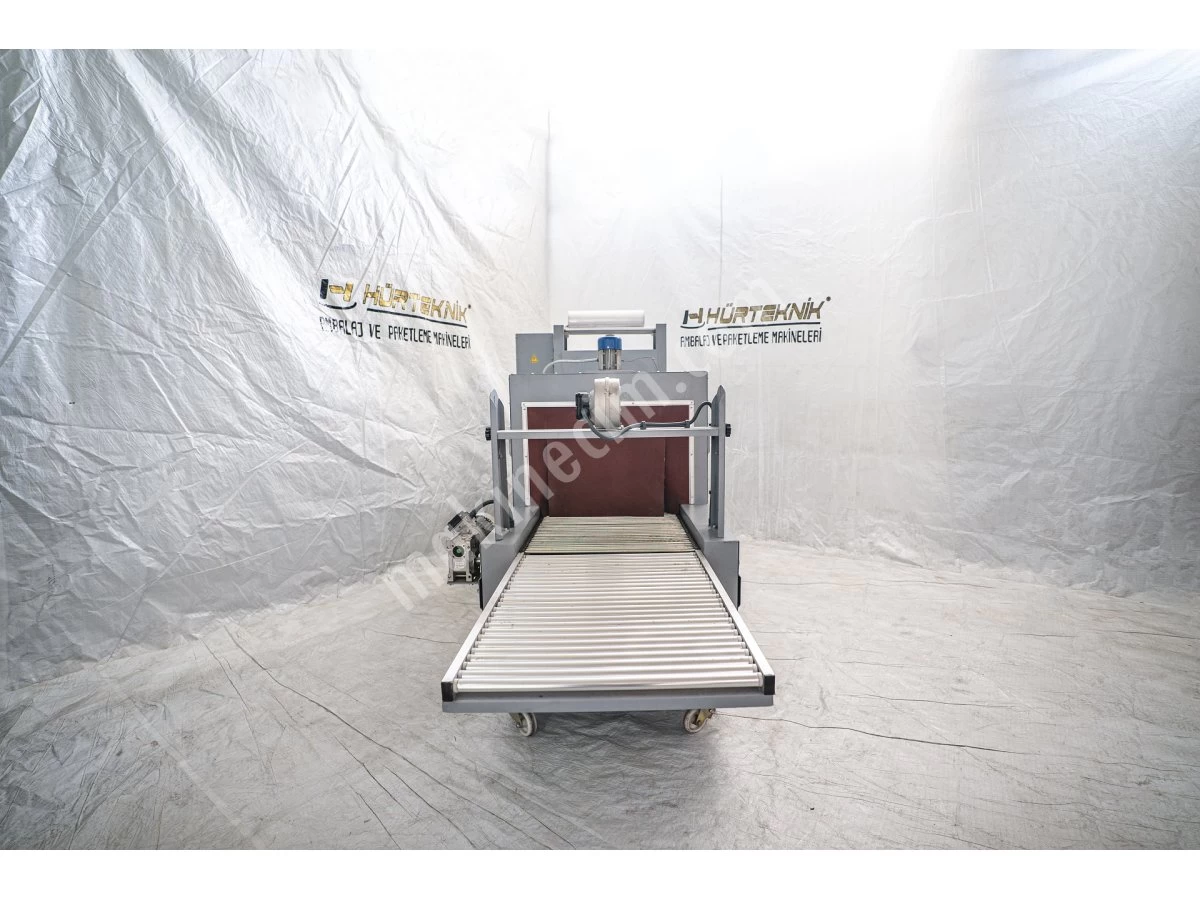

SHRINK (SHINIK) PACKAGING MACHINE WITH AIR CHANNEL-TURBO SYSTEM The machine body is of 2.5 mm sheet metal bending construction and insulated with rockwool and asbestos. A conveyor made of solid shafts is made for the transport of the finished material. The resistances inside the heat tunnel are 1000 serpentines each. It is Watt. It varies between 10-16 pieces according to the shrink size. The temperature control is done with an electronic thermometer. The system is designed to minimize energy consumption. The sewing and cutting process system is designed in such a way that the operator can use it comfortably. Since the heat circulation is done with the air channel, it applies an equal amount of heat to all parts of the packaging. There is a high-speed cooling fan at the tunnel exit, allowing the product coming out of the tunnel to cool down. Thus, a tight and tight packaging is provided. It is possible. Tunnel dimensions: 450x620x1250 mm Adhesive system: Pneumatic hot jaw Capacity: 150-400 boxes (depending on operator and product) Working pressure: 4-6 bar Electrical connection: 380 Volt 15 kw
