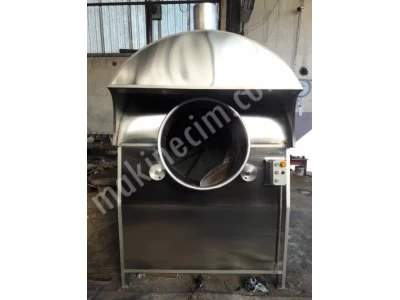

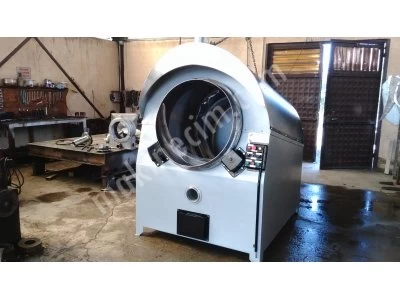

Sesame Roasting Machine

Roaster SKT 400

The machine is manufactured from two different metals: St 37 black sheet metal and chrome nickel. Mounted on the machine are three honeycomb tube heaters operating with natural air circulation. A solenoid valve (electrically controlled valve) prevents gas leaks. There is an outlet for flue gas at the top of the machine, and the machine is thermally insulated with 8 cm of insulation material.

The pilot burner is activated as soon as the machine is started, and 15 seconds after the combustion process begins, the other two heater burners are manually activated. If the burners fail to light or go out, the electronic heat sensor shuts off the gas flow through the electric valves until the fault is resolved.

• Capacity: 400 kg
• Material: Product roasting surface: ST37 mild steel
• Electrical Power: 3 kW / 5 hp
• Fuel: 5 m³ - 7 m³ / hour LPG/LNG/natural gas
• Dimensions: W 1450 mm X H 2100 mm X L 2500 mm
