Semi-Auto, Mitre, Double Column Band-Saw,D-YD 800
| Price : | Ask For Price |
| Ad Code : | M-383719 |
| Ad Type : | For Sale - New |
| Views : | 184 |
| Date Updated : | 02 Oct 2023 |
| Production Type : | Special Production |
Dispa makina
Türkiye - Bursa - Nilüfer
Başköy mahallesi izmir yolu caddesi no:43 Bursa/Nilüfer
Semi-Auto, Mitre, Double Column Band-Saw,D-YD 800 Ad Description
Description
Double Column Bandsaws with linear guideways are ideal for MITRE cuts with different quantities.
With the movement of the bow, it’s possible to cut between 90° and +45°. With height adjustment and
hydraulic cutting, control allows the bow to go up over the material after the cut. All this process is

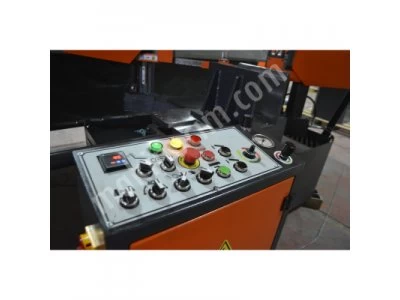

controlled by a digital counter on the control panel and total duration for one cut decreases. Fixing
the bow at any angle is controlled by the hydraulic brake system.
Technicial Specifications
| Capacity 90o Round | mm | 800 |
| Capacity 90o Square | mm | 800 |
| Capacity 90o Rectangle | mm | 800x850 |
| Capacity 45o Round | mm | 480 |
| Capacity 45o Square | mm | 480 |
| Capacity 45o Rectangle | mm | 480x800 |
| Band Dimensions | mm | 7950x41x1.3 |
| Boron Oil Depot | lt | 30 |
| Hydraulic Storage | lt | 40 |
| Blade Speed | m/min | 20-100 |
| Main Motor | kw | 5.5 |
| Hydraulic Motor | kw | 1.5 |
| Bor Oil Motor | kw | 0.09 |
| Conveyor Motor | kw | 0.44 |
| Working Hight | mm | 750 |
| Length | mm | 2350 |
| Width | mm | 1250 |
| Height | mm | 1780 |
| Weight | kg | 3800 |
