Semi-Auto, Mitre, Double Column Band-Saw,D-YD 550
| Price : | Ask For Price |
| Ad Code : | M-383718 |
| Ad Type : | For Sale - New |
| Views : | 145 |
| Date Updated : | 02 Oct 2023 |
| Production Type : | Special Production |
Dispa makina
Türkiye - Bursa - Nilüfer
Başköy mahallesi izmir yolu caddesi no:43 Bursa/Nilüfer
Semi-Auto, Mitre, Double Column Band-Saw,D-YD 550 Ad Description
Description

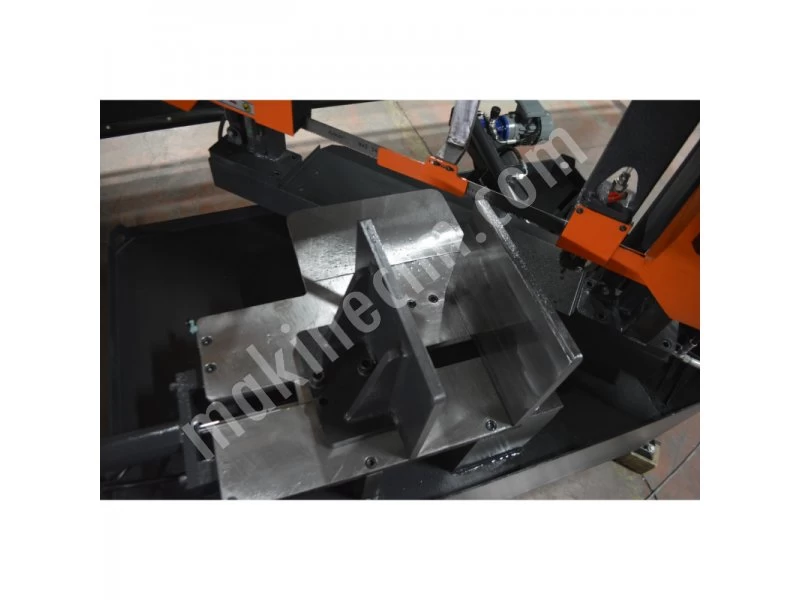

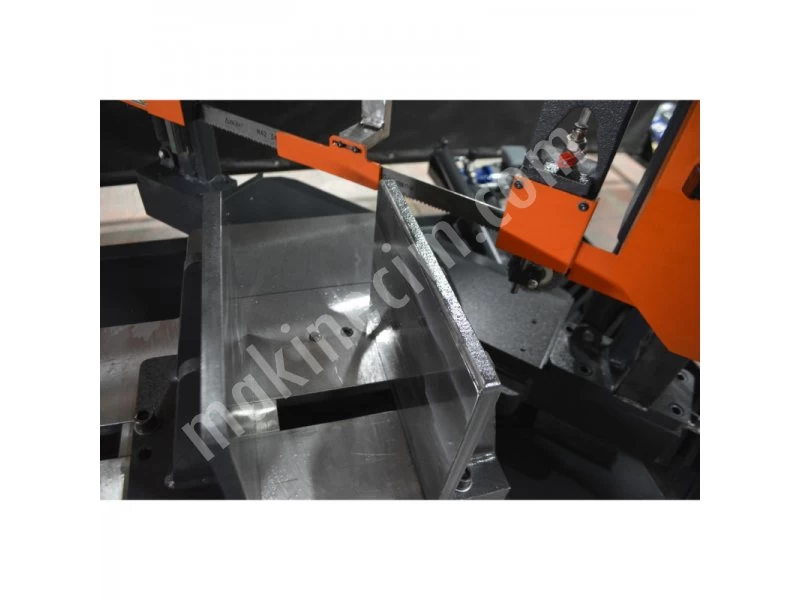

Double Column Bandsaws with linear guideways are ideal for MITRE cuts with different quantities.
With the movement of the bow, it’s possible to cut between 90° and +45°. With height adjustment and
hydraulic cutting, control allows the bow to go up over the material after the cut. All this process is

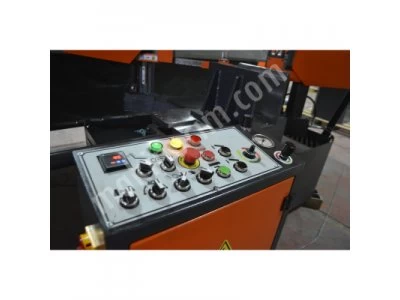

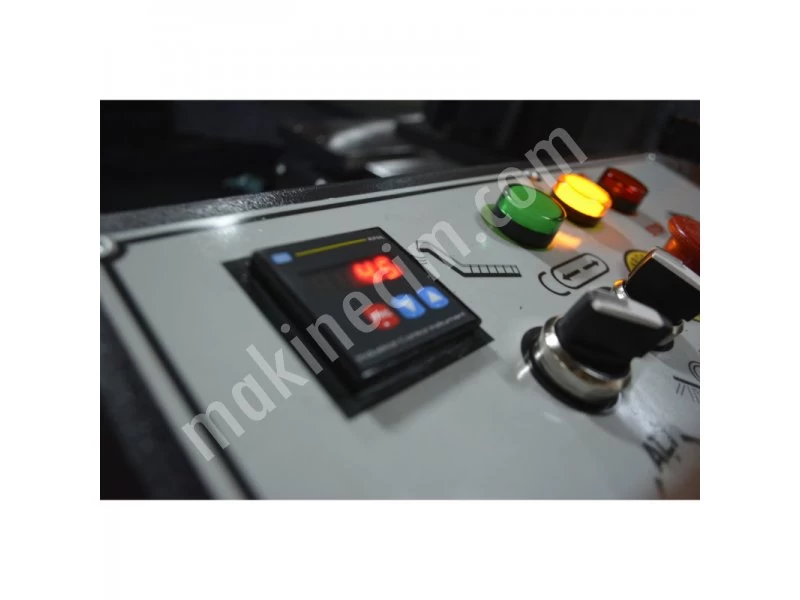

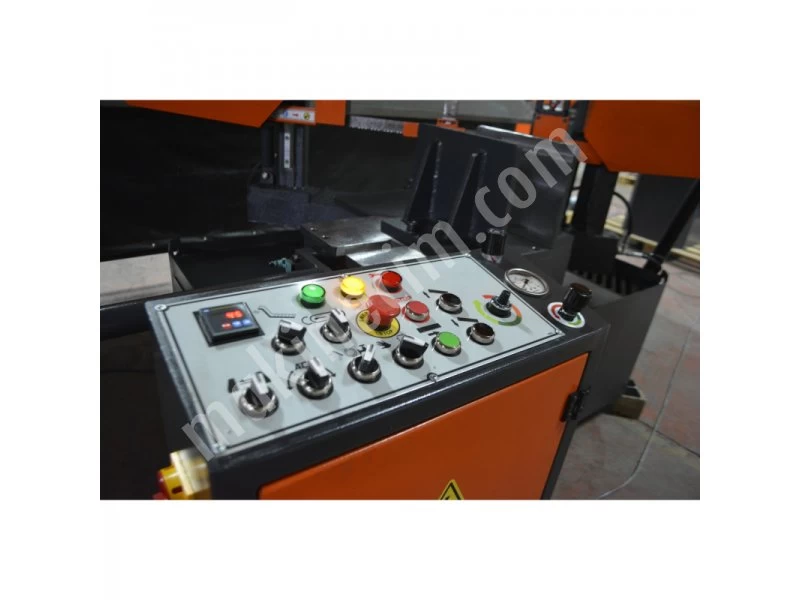

controlled by a digital counter on the control panel and total duration for one cut decreases. Fixing
the bow at any angle is controlled by the hydraulic brake system.
Technicial Specifications
| Capacity 90o Round | mm | 550 |
| Capacity 90o Square | mm | 550 |
| Capacity 90o Rectangle | mm | 550x750 |
| Capacity 45o Round | mm | 400 |
| Capacity 45o Square | mm | 400 |
| Capacity 45o Rectangle | mm | 400x550 |
| Band Dimensions | mm | 6180x41x1.3 |
| Boron Oil Depot | lt | 30 |
| Hydraulic Storage | lt | 40 |
| Blade Speed | m/min | 20-100 |
| Main Motor | kw | 4 |
| Hydraulic Motor | kw | 1.5 |
| Bor Oil Motor | kw | 0.09 |
| Conveyor Motor | kw | 0.44 |
| Working Hight | mm | 750 |
| Length | mm | 2200 |
| Width | mm | 800 |
| Height | mm | 2025 |
| Weight | kg | 3100 |
