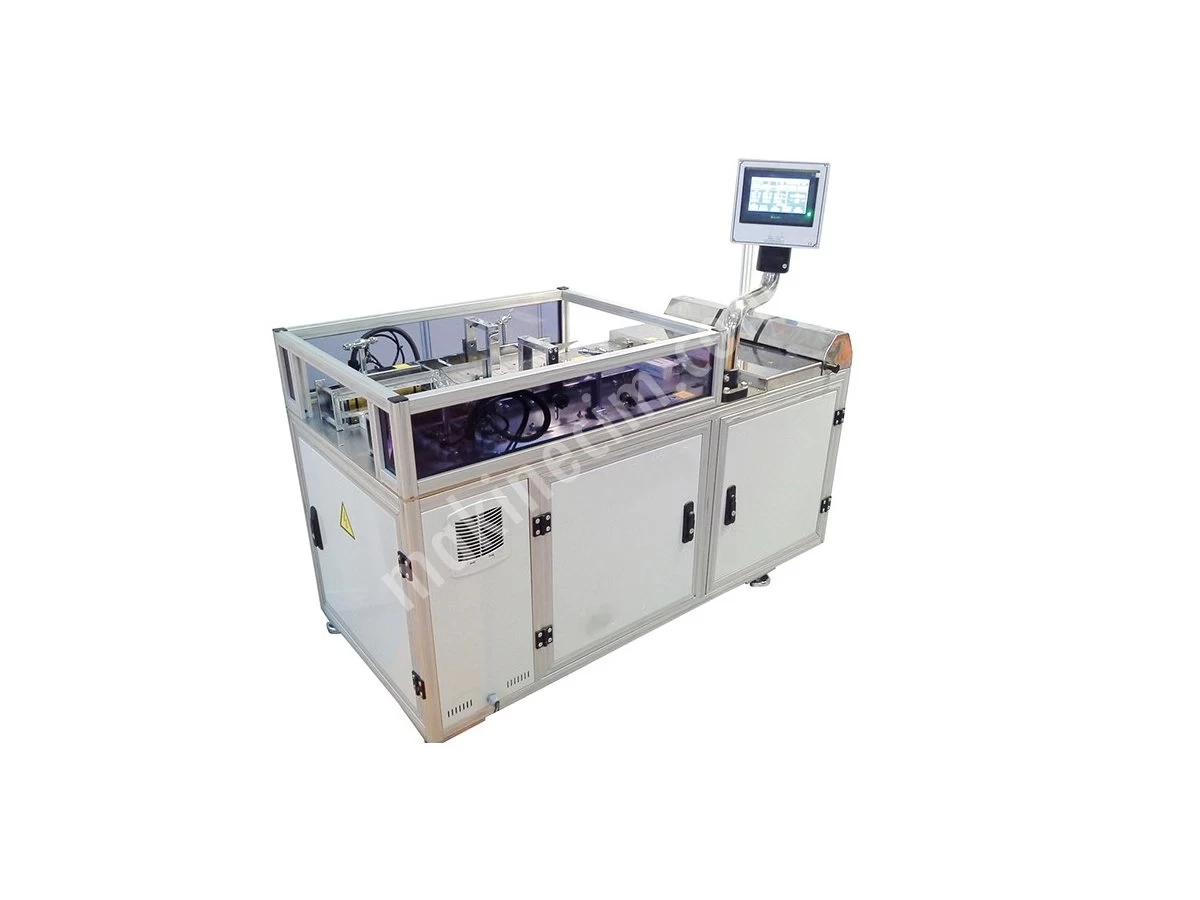

Introducing the Screw or Small Spare Parts Set Packaging Machine, a versatile solution designed to streamline your packaging processes. This machine efficiently wraps small to medium-sized square and rectangular boxes in an envelope-style package. It offers both automatic and manual feeding options, allowing for seamless integration with your production line. With its user-friendly interface featuring a touch screen and PLC control system, adjustments and settings are a breeze, making it operator-friendly and easy to switch between different molds. For added convenience, an opening strip can be attached to the outer cellophane for easy access. Optional features include a photoelectric cell system and date coding equipment when using colored or printed cellophane wrappings, ensuring your packaging needs are met with precision.
Technical Specifications
| Machine Dimensions |
H190 x W100 x L430 cm |
| Weight |
950 Kg / 1,100 Kg |
| Feeding Belt Dimensions |
H90-100 x W25-30 x L140-150 cm |
| Power |
3.5 kW, 380/400 VAC 3 Phase 50/60 Hz |
| Air Consumption |
6 bar / min |
| Noise Level |
70-80 Decibel |
| Capacity Per Minute |
20-40 Units Depending on Product Volume |
Package Dimensions
| Length (A) |
Min: 50mm / Max: 320mm |
| Width (B) |
Min: 30mm / Max: 120mm |
| Height (C) |
Min: 20mm / Max: 80mm |
| OPP, BOPP, PVC Length - Cellophane Length Mechanically Adjustable |
Min: 110mm / Max: 420mm |
