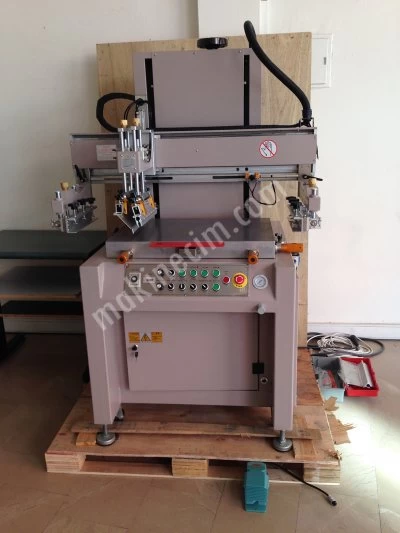

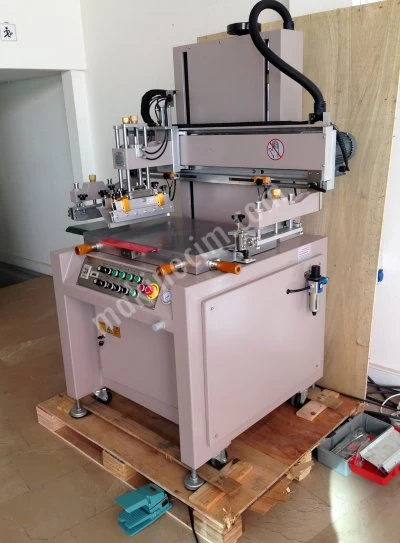

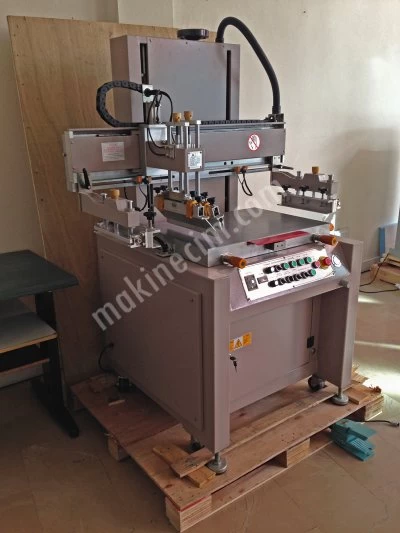

SCREEN PRINTING MACHINE

Speficication:
1:Max.Printing Size: 430X650(mm)
2:Max. Working Table size: 500X700(mm)
3:Max. Frame Size: 700×1080(mm)
4: Max. Product Thickness: 0-20（mm）
5: Working Capacity: 800pcs/h
6: Air compressor: 0.4-0.6Mpa
7: Power Supply: 380V
8:Machine dimension(L * W * H):950*1100*1870(mm)
9:Packing measurement: 1130*1280*2050(mm)
10:Net weight:450KG
11:Power: 220V 650W
12:Packing: Wooden box

Features:
1). Vertical structure, Compact & space-saving. PLC control, easy operation and good stability. Language optional, English or Chinese.
2). Printing driven by motor, Installed Linear Guide or Linear Guideway. Printing speed and ink flooding speed are adjustable. Running smoothly and a long work life.
3). Special cushion cylinder installed on the left/ right buffer gear.
4). The motor drive screen frame up and down, two poles guide. Separated buffering air course to keep stability register.
5). Duralumin working table( made according to the international standard cast aluminium JISH5302-2000 ), precise scale micro-adjustable. Planeness keep in 0.05mm, roughness
6). Printing angle/ printing pressure and spacing between screen frame and table are adjustable.
7). Reliable safety device is installed according to CE standard.
