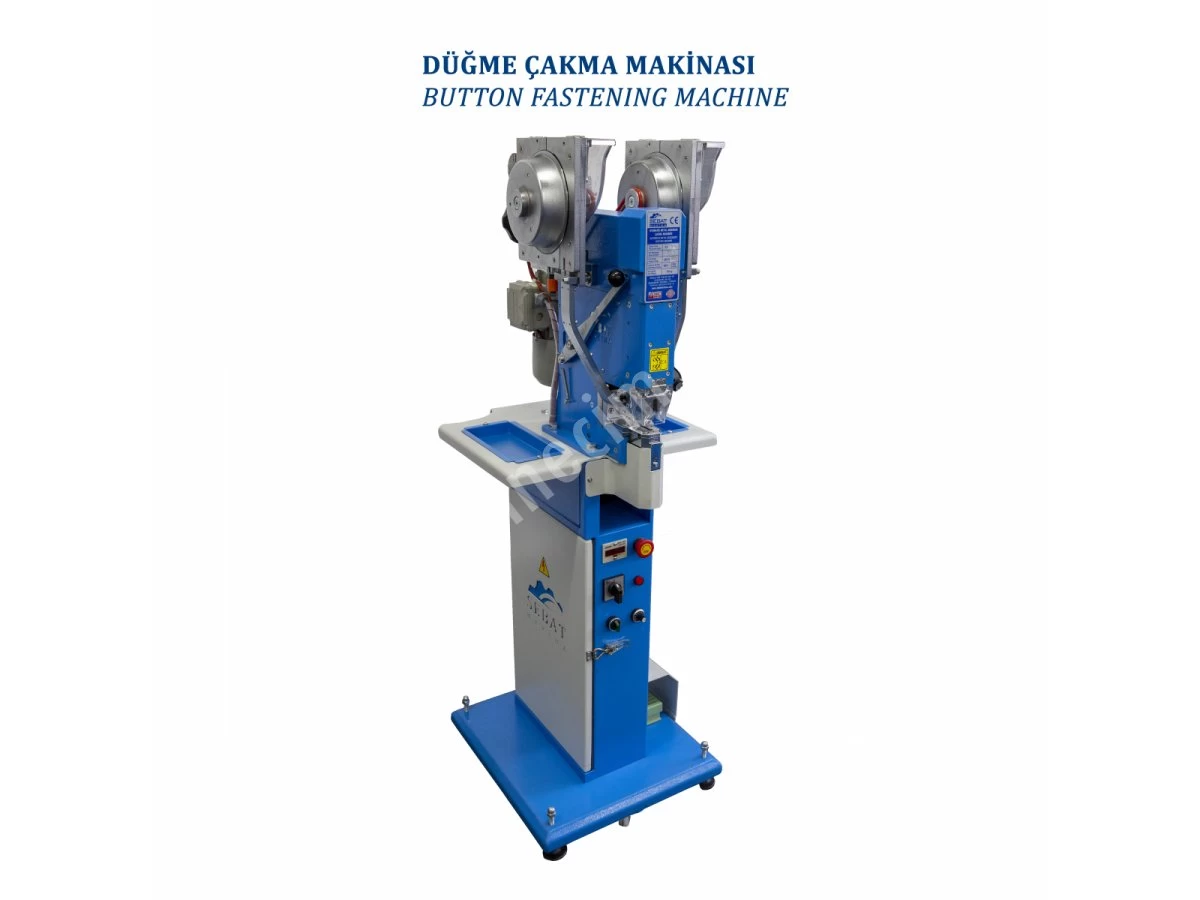

Sbtp147 Automatic Fastening Machine

Automatic Button Pressing Machine

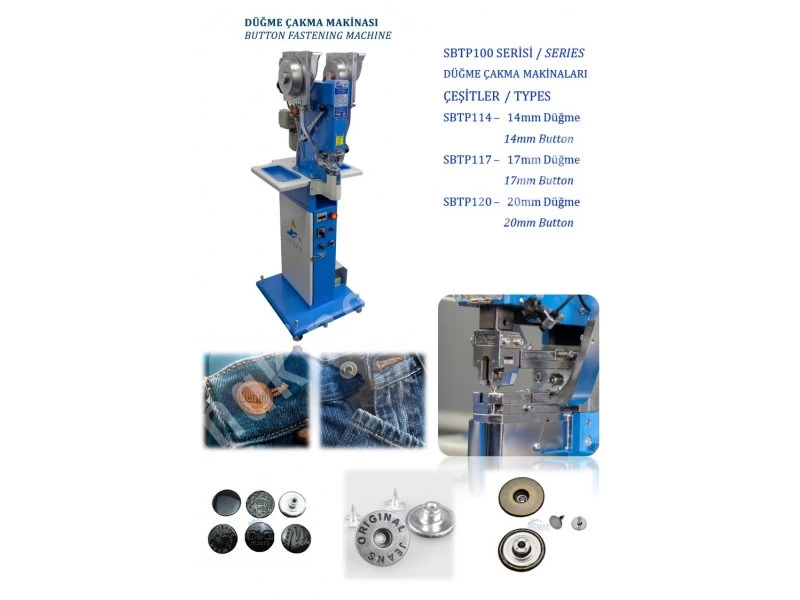

This machine is capable of pressing all standard movable, fixed, and perforated buttons between 14 mm and 17 mm in size. It features a dual-hopper material feeding system where nails and buttons are loaded into separate hoppers and automatically fed into the press channel for operation. A spare mold set for both large and small buttons is included, allowing quick and easy changeover within 1–2 minutes.

Designed with advanced technical and technological features, this machine can press approximately 30,000 buttons in 8 hours with a defect rate of only 1%. It is suitable for use with different materials and fabrics and can be equipped with optional fork-nail molds. The machine automatically adjusts the pressing pressure according to the fabric type and thickness to achieve optimal results.

It comes with a 1-year mechanical and 3-year electronic warranty, plus 24-hour free service support.

General Features

• Fully automatic
• Electronic control system
• 380 V three-phase, 24 V output
• 220 V single-phase (optional)
• Electronic hand protection (optional)
• Mechanical hand protection (optional)
• Electronic counter (optional)
• 0.37 kW motor, 1400 rpm
• 1/7 gear reducer, 200 strokes per minute
• Magnetic brake
• Start-stop magnetic proximity switch
• Programmable electronic board
• Indicator lights
• 1.5 kW power consumption
• Laser positioning
• 1,000 kg pressing force
• Automatic lubrication and cleaning with air system
• Steel bearings and molds
• Automatic fabric thickness pressure adjustment
• 24-hour continuous operation capacity
• Hard chrome coating on metal surfaces
• Powder coating resistant to moisture and impact
• Dimensions: 52 x 54 x 132 cm
• Weight: 80 kg
