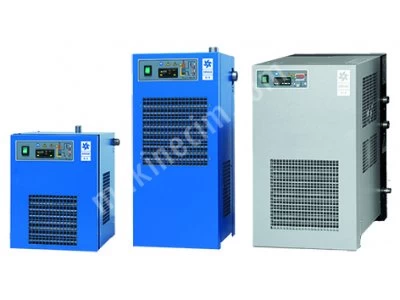

Refrigerated Dryers

It is the most efficient and environmental method to obtain enough dry air in most processes

Pressured air that comes from compressor includes condensible relative moisture. A compressor sends approx. 80 liters water to line when it works in following conditions: @8 bar – 20 m3/min. – capacity: 75% – worked 8 hours - 20°C and moisture ratio to air 70%.

In order not to waste air, MTA developed MP series includes dryer and iDRAIN (automatic condensed water draining valve which is compatible with European standards) to prevent damaging of condensed water without wasting compressed air.

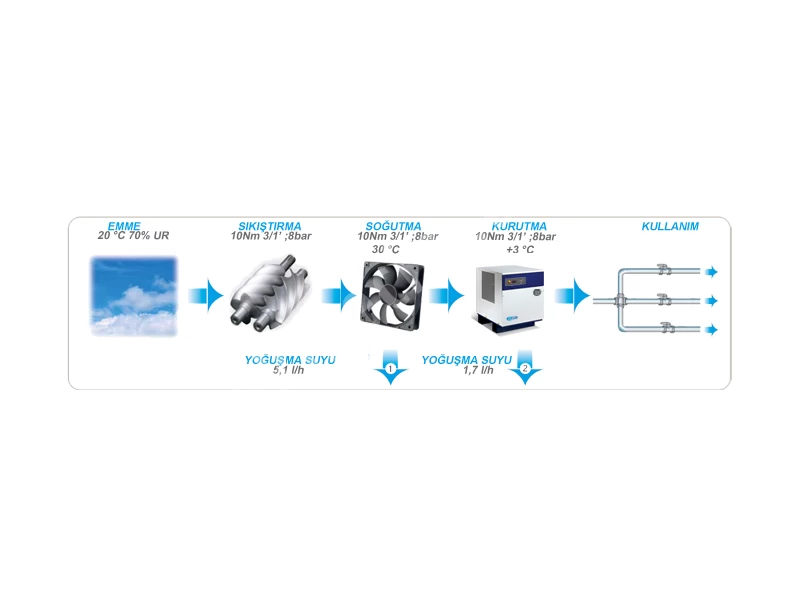

During suction, saturated compressed air is exposed to dry-cooled air in first cooling heat exchanger.

Second cooling level is occurred in heat exchanger when air reached to regulated condensation point. During cooling process, separated condensation water is automatically treated and drained by level sensor system.

Produced compressed air is sufficiently dry and proper for most industrial processes.

Refrigerant gas dryers are ideal equipment for no need high-quality compressed air for general-purpose applications, costs lower investment and maintenance. This equipment's efficiency difference depends on the design of heat-exchanger, eco-watt structure and type of cooling gas.

Main features for our gas type compressed air dryers to others in market are working smoothly and having lower power consumption.


MTA Preferences

Properties

• High reliability
• Easy operating
• Wide range of maintenance
• Ecology Friendly
• High-efficiency thermal isolation
• Compatible with all European standards
• Silenced condensate drainer
• No compressed air leakage/waste

User Friendly

• No start-up programming required.
• Automatically adapts itself to every operating condition.
• No need to turn dryer on and off, Marco Polo does so automatically.
• User friendly digital control interface on all models.

Maintenance friendly

• On-off operation ensures no seasonal adjustments are required.
• Simple refrigeration circuit, fewer components requiring maintenance.
• Top mounted condenser for reduced fouling.
• Service warning on controller.

Operates everywhere

• 70 °C maximum air inlet temperature.
• 50 °C maximum ambient temperature.
• 16 barg maximum working pressure.
• Excellent overload capacity thanks to environmentally friendly refrigerant R134a.

Operates continuously

• Simple refrigeration circuit without the complications of a hot gas valve.
• Compressor runs cooler and less often, increasing its longevity.
• Extensively factory tested for increased peace of mind.
• No risk of freezing in winter.

Steady dew point

• Stainless steel demister separator (perfect separation even at reduced loads)
• Marco Polo’s thermal storage acts as a stand-by buffer to prevent dew point peaks due to sudden increases in load
• No hot gas by-pass, no operating fluctuations.

iDRY digital controller

• Standard up to 5MP0900 and 6MP0315.
• Digital LED display with easy to understand messages.
• 4 alarms.
• Choose between 2 dew point settings.
• LED informing that dryer is in energy saving mode.
• Standard TTL serial interface.

iDRY microprocessor

• Standard from 5MP1200 and 6MP0425.
• Numerical LED dew point reading.
• 14 alarms with alarm history.
• General alarm volt-free contact.
• 2 dew point settings.
• RS485 serial connection.
• Full programmability.

iDRAIN

• Standard on all models.
• Adapts drain operation to effective dryer load, saving energy.
• Always works perfectly, no programming required.
• Wide drainage orifice for increased reliability and reduced chance of blockage
