(Pu) Polyurethane Side Shaving and Grooving Machine
| Price : | Ask For Price |
| Ad Code : | M-427152 |
| Ad Type : | For Sale - New |
| Views : | 331 |
| Date Updated : | 12 Mar 2025 |
| Production Type : | Brand |
| Brand : | Esp Mühendislik |
| Model : | 2022 |
| Production Year : | 2022 |
Esp Mühendislik Cnc Kesim Makinalari ***
Türkiye - Bursa - Nilüfer
Odunluk Mah. Lefkoşe Cad. Eker İş Merkezi No:19 A Blok D.5 16110 Nilüfer/bursa
(Pu) Polyurethane Side Shaving and Grooving Machine Ad Description
- Machine Dimensions: Width:1500 mm, Length:5500 mm, Weight:400 Kg.
- Working Voltage: 380 V.
- It can channel the material with a width of 1000 mm. It can be shaved from the sides.

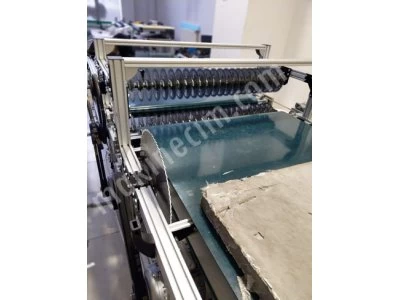

- A total of 46 special knives of Ø300 mm, 23 adjustable at the bottom and 23 at the top, for grooving.
- 2 x 45 degree Ø450 mm special blades for shaving the side.
- Special air blowing system from the lower blade and upper blade.

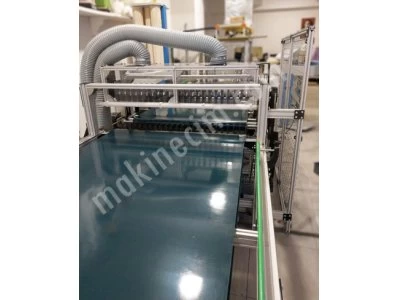

- 2 pieces of 1600 m3 vacuum (dust extraction) system from the lower blade and the upper blade.
- 2 x 3 KW 1000 D/min Three-phase motors for grooving and side shaving.
- It can open channels up to a maximum thickness of 100 mm.

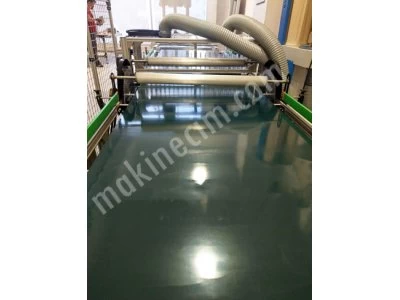

- Special conveyor system for easy use.
- Adjustable conveyor speed.

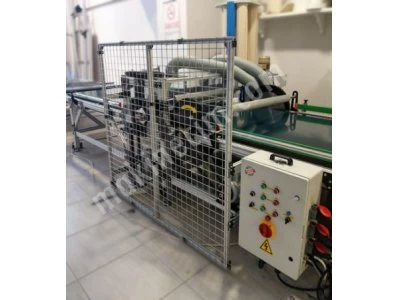

- Easy to use control panel.
