Price : Ask For Price
Ad Code : M-120335
Ad Type : For Sale - New
Views : 1441
Date Updated : 01 Jun 2023
Production Type : Special Production
Brand KÜÇÜKOĞLU MAKİNE
Model : P-900 6.5 HP HONDA
Production Year : 2015
Küçükoğlu Makine İnş.San.Ve Tic.Ltd.Şti.
Türkiye - İzmir - GAZİEMİR
Fatih Mah. 1187 Sok. No:3 Sarnıç-İZMİR [Eski Hiçyılmaz Gırgır Fabrikası]
Ad Description

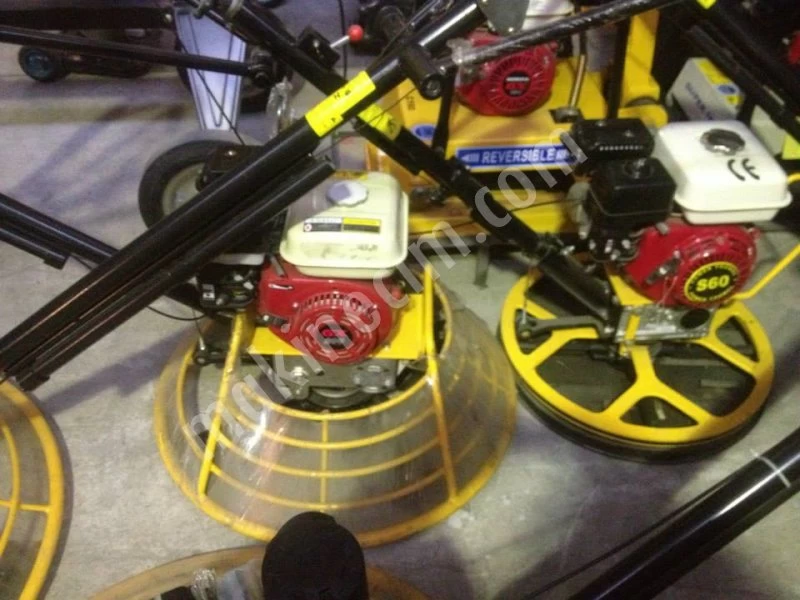

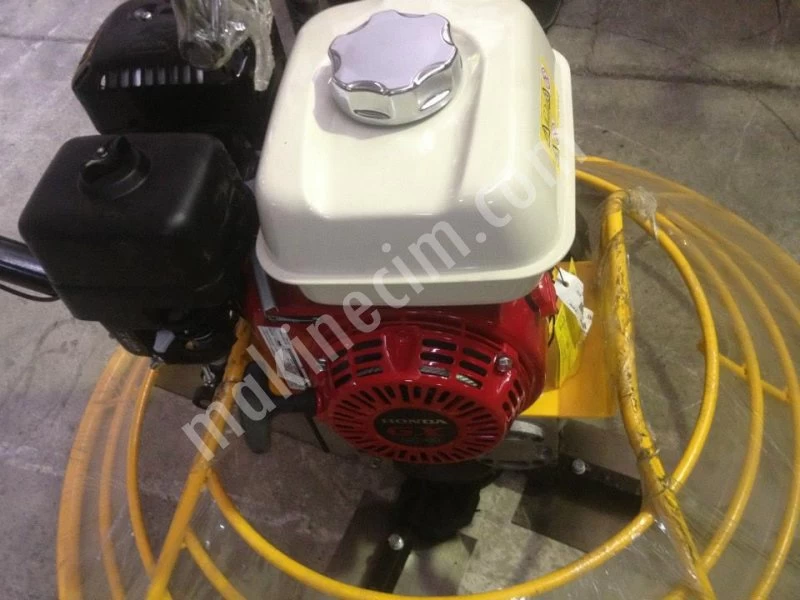

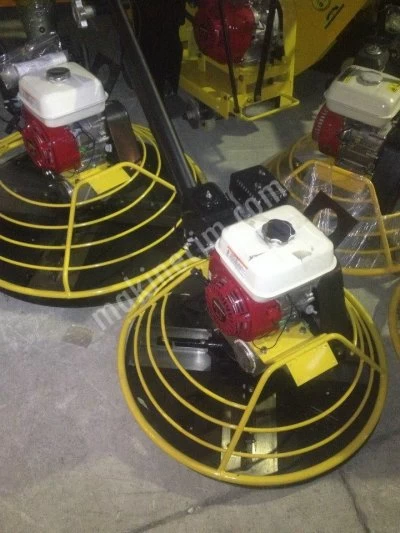

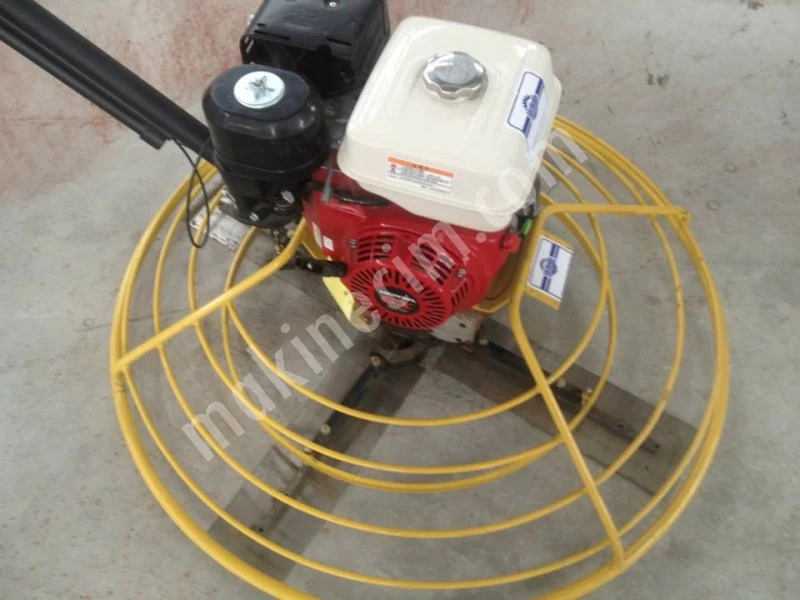

Gasoline Polishing Machine

  • The engine has an automatic switch that will not stop or start the engine when oil is low.
  • It has an electronic circuit breaker system that will stop the machine by automatically stopping the engine when control of the machine in use is lost. The system control handle is located on the handle within easy reach of the user.
  • There is a sheet metal lifting hook at a single point in the center of gravity so that the machine can be lifted safely and balanced.
  • There is a protection cable duct pipe under the lever body to protect the throttle and stop cable assembly.
  • The machine's throttle assembly is located on the handle within easy reach of the user.
  • In the connection between the arm and the reducer, sheet metal connection elements with anti-breakage support are used.
  • It can perform polishing with a diameter of 915 mm with 4 trowel blades made of hardened steel.
  • Blade rotation speeds according to revolution during polishing  It is 139 rpm.
  • During polishing, the trowel blades can be inclined between 0º and 20º.
  • The trowel adjustment device is mounted inside the arm body. The butterfly that provides adjustment is on the arm within easy reach of the user.
  • Fasteners are compatible with Besto and Polyemid trowel mounting.
  • It is a floor processing equipment used for finishing, smoothing and polishing concrete surfaces. Field concretes, parking lots, industrial and commercial buildings, warehouses, airports and shopping mall construction sites are the main areas of use.

TECHNICAL SPECIFICATIONS

Engine
Brand Honda Gasoline --
Type Air Cooled, 4 Stroke, Single Cylinder --
Operation Rope Start --
Power 4.9 - 6.5 kW - HP
Cylinder Displacement 196 cm³
Transfer 3600 rpm
Fuel Tank 3.6 lt
Oil Tank 0.6 lt
Fuel Consumption 2.1 lt/hour
Technical Specifications
Transport Dimensions (WxLxH) 1000x2050x1040 mm
Shipping Weight 81 kg
Trowel Diameter 915 mm
Trowel Dimensions (WxLxH) 400x150x2 mm
Number of Blades 4 quantity
Blade Speed 139 rpm
Trowel Slope 0-20 º
