Power Trowel Machi̇ne
| Price : | 0.00 $ |
| Ad Code : | M-208906 |
| Ad Type : | For Sale - New |
| Views : | 563 |
| Date Updated : | 01 Jun 2023 |
| Production Type : | Special Production |
| Brand : | KÜÇÜKOĞLU MAKİNE |
| Model : | P-900 |
| Production Year : | 2015 |
Küçükoğlu Makine İnş.San.Ve Tic.Ltd.Şti.
Power Trowel Machi̇ne Ad Description
GENERAL INFORMATION

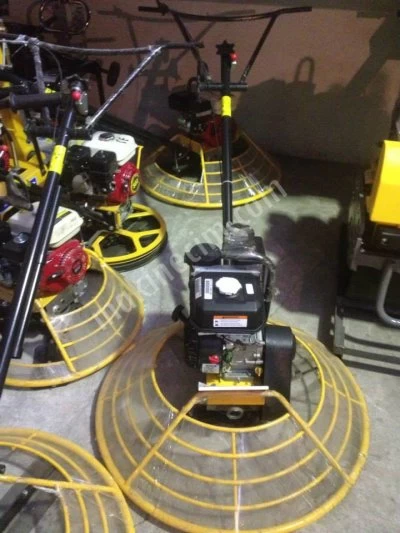

Power trowel machines – also known as helicopter trowels – are floor finishing equipment used for smoothing, leveling, and polishing concrete surfaces.
Main application areas include field concretes, parking lots, industrial and commercial buildings, warehouses, airports, and shopping mall construction sites.
TECHNICAL FEATURES
The machine is equipped with an electronic circuit breaker system that automatically stops the engine when control is lost, ensuring operator safety. The control system is positioned conveniently on the handle.
A single-point lifting hook located at the center of gravity ensures safe and balanced lifting.
A protective cable channel pipe is located under the handle body to safeguard throttle and stop cables. The throttle control is also positioned on the handle for easy access.
Reinforced sheet metal connectors are used between the handle and gearbox to prevent breakage.
Equipped with 4 hardened steel blades, the machine can trowel concrete surfaces up to 900 mm in diameter. Blade rotation speed during operation is 127 rpm.
The blades can be adjusted between 0º and 20º for precise finishing. The adjustment mechanism is built into the handle body, with a butterfly knob located within easy reach.
| TRANSPORT DIMENSIONS | 100 x 200 x 107 cm |
| NET WEIGHT | 85 kg |
| TROWEL SIZE | 900 mm |
| NUMBER OF BLADES | 4 pcs |
| BLADE SPEED | 127 rpm |
| BLADE ANGLE | 0 – 20 degrees |
ENGINE SPECIFICATIONS

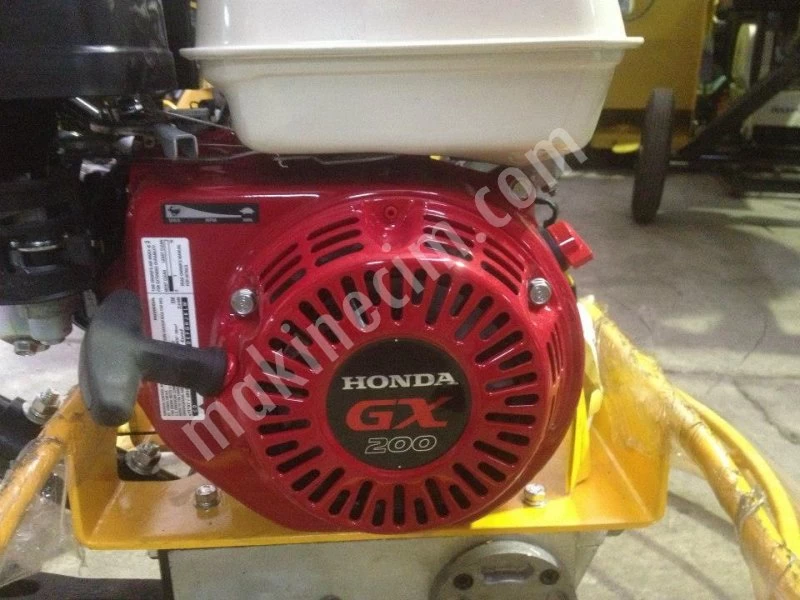

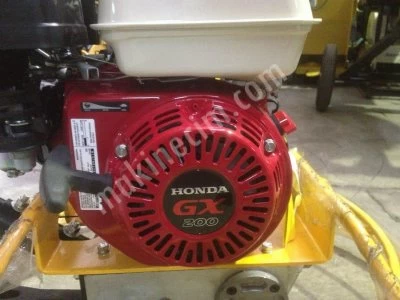

| ENGINE TYPE | Honda Gasoline |
| TYPE | Air-cooled, 4-stroke, single-cylinder |
| START | Recoil (manual) |
| POWER | 5.5 HP |
| DISPLACEMENT | 160 cm³ |
| FUEL TANK | 3.6 L |
| OIL TANK | 0.6 L |
| FUEL CONSUMPTION | 1.8 L/hour |
