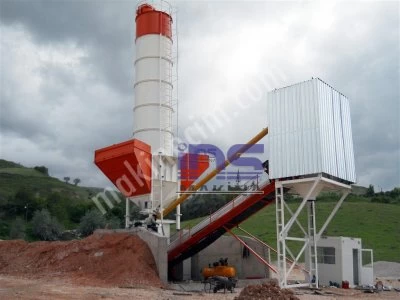

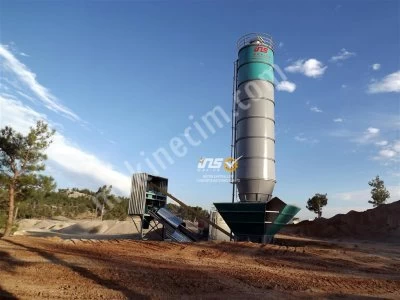

Portable Type Concrete Batching Plant
| Price : | Ask For Price |
| Ad Code : | M-157063 |
| Ad Type : | For Sale - New |
| Views : | 589 |
| Date Updated : | 26 Aug 2023 |
| Production Type : | Brand |
| Brand : | ins makina |
| Model : | INS |
| Production Year : | 2017 |
İns Makina Beton Santralleri
Türkiye - Ankara - Yenimahalle
Turgut Özal Mah. 1940. Cadde, No:81/31
Portable Type Concrete Batching Plant Ad Description
70 m³ /h CAPACITY PORTABLE CONCRETE BATCHING PLANTS
Technical Specifications
| Concrete Plant capacity | : | 70 m3/h |
| Aggregate Bunker | : | Tanks: 3x10 m3 Total Volume : 30 m3 |
| Cement Silo | : | Capacity: 60 tons – 1 unit (Can optionally be bolted.) |
| Cement Spiral Conveyor | : | 1 Unit, Size : Ø 219 mm x 10000 mm WAM |
| Cement Silo Equipments | : | Upper and Lower Level Meters pressure sensor WAM |
| Aggregate Weighing Machine | : | 1 m3 Load cell : 4 x 1000 kg,ZMC(HOLAND) |
| Cement Weighing Tank | : | Weighing Capacity:600 kg,Load Cell:1000 kgX3ZMC(HOLAND) |
| Water Weighing Tank | : | Weighing Capacity:320 kg,Load Cell:500 kgX2, ZMC(HOLAND) |
| Additive Tank | : | Weighing Capacity:20 kg ,Load Cell:50 kg, ZMC(HOLAND) |
| Air Valves Board | : | MAG, Compressr 500 LT Volume,LUPAMAT |
| Concrete Plant Automation | : | Tekno Automation, |
|
Silo Top Filter (2 Units) |
: | 24 m² Cylindrical Body, Pressure Tube, Imported 4 cartridge filter |
| Command Cabin | : | 1 Unit, 2.2 x 1.2 x 2 m |
