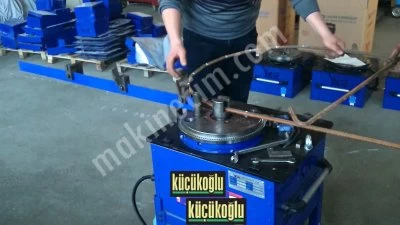

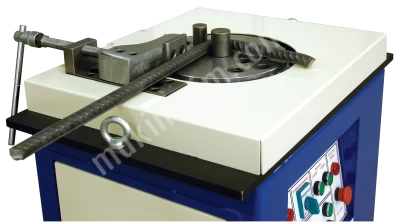

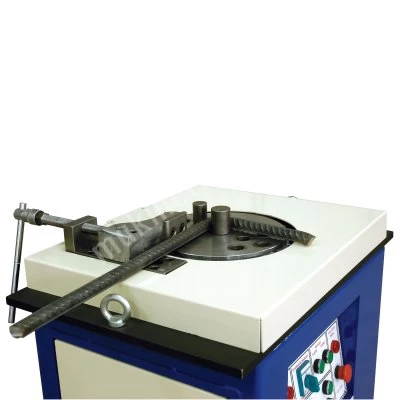

Portable Iron Bending Machine
| Price : | 0.00 $ |
| Ad Code : | M-320689 |
| Ad Type : | For Sale - New |
| Views : | 1546 |
| Date Updated : | 01 Jun 2023 |
| Production Type : | Brand |
| Brand : | KÜÇÜKOĞLU MAKİNE |
| Model : | KMSP18 |
| Production Year : | 2015 |
Küçükoğlu Makine İnş.San.Ve Tic.Ltd.Şti.
Türkiye - İzmir - GAZİEMİR
Fatih Mah. 1187 Sok. No:3 Sarnıç-İZMİR [Eski Hiçyılmaz Gırgır Fabrikası]
Portable Iron Bending Machine Ad Description
| Code | DIMENSIONS | ||||
| L (mm) | H (mm) | D (mm) | Weight (kg/unit) | ||
| 17 00 18 | 510 | 340 | 420 | 67 | 1 |
- Machine Output Speed: 6 - 12 rpm
- Max. Bending Torque: 600 Nm
- Electric Motor Power: 1.1 KW
- Motor Operating Voltage: 220 V
- Operating Mode: Manual - Automatic
- Height with Stand: 84 cm
- Electromechanical pedal control
- Bending switch with directional control
- Emergency stop button for safety
- Bending angle adjustment can be set using the holes around the bending flange
- Very suitable for bending stirrups, hooks, and rebars
| BENDING CAPACITY | ||
| 45 Kg/mm² | 65 Kg/mm² | 85 Kg/mm² |
| Ø 18x1 | Ø 18x1 | Ø 14x1 |
