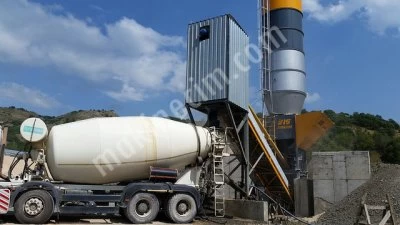

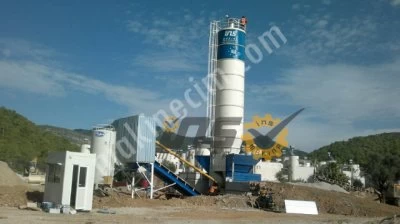

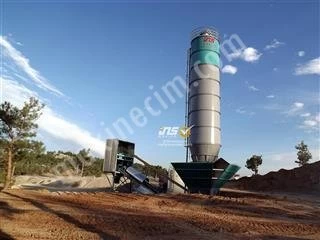

Portable Concrete Batching Plant With A Capacity Of 70M3 Time
Price :
Ask For Price
Ad Code :
M-157062
Ad Type :
For Sale - New
Views :
498
Date Updated :
26 Aug 2023
Production Type :
Brand
Brand
İNS MAKİNA
Model :
Ins Pbs 70
Production Year :
2017
İns Makina Beton Santralleri
Türkiye - Ankara - Yenimahalle
Turgut Özal Mah. 1940. Cadde, No:81/31
Ad Description
Technical Specifications
| Concrete Plant capacity | : | 70 m3/h |
| Aggregate Bunker | : | Tanks: 3x10 m3 Total Volume : 30 m3 |
| Cement Silo | : | Capacity: 60 tons – 1 unit (Can optionally be bolted.) |
| Cement Spiral Conveyor | : | 1 Unit, Size : Ø 219 mm x 10000 mm WAM |
| Cement Silo Equipments | : | Upper and Lower Level Meters pressure sensor WAM |
| Aggregate Weighing Machine | : | 1 m3 Load cell : 4 x 1000 kg, ESIT |
| Cement Weighing Tank | : | Weighing Capacity:600 kg,Load Cell:1000 kgX3,ESIT,WAM |
| Water Weighing Tank | : | Weighing Capacity:320 kg,Load Cell:500 kgX2, ESIT,WAM |
| Additive Tank | : | Weighing Capacity:20 kg ,Load Cell:50 kg, ESIT,WAM |
| Air Valves Board | : | MAG, Compressr 500 LT Volume,TAMSAN |
| Concrete Plant Automation | : | Tekno Automation, |
|
Silo Top Filter (2 Units) |
: | 24 m² Cylindrical Body, Pressure Tube, Imported 4 cartridge filter |
| Command Cabin | : | 1 Unit, 2.2 x 1.2 x 2 m |
