3 STATİON THERFORMİNG MACHİNE

automatic thermoforming container machine

3 STATİON THERFORMİNG MACHİNE

Thermoforming machine, ———

Three Station Thermoforming Machine adopts the latest thermoforming technology, European design, intelligent control. This series combines high production, high quality, high efficiency, and low consumption. So, it is suitable for bulk production and excellent yield.

➢ Usage: The 3 is specialized for forming material sheets like

PP, PS, PET, PVC, OPS, EPS, C-PET, PLA, ABS and others, which can be widely used to produce all sorts of food and non-food packaging products.

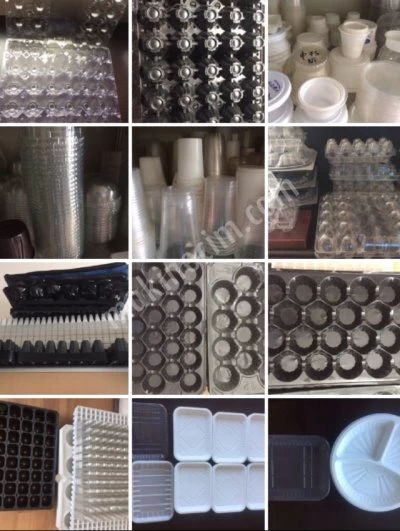

Leakproof containers



Plastic Plates

Egg trays

Fruit trays

Plastic caps

Plastic cups

FORMING GROUP	DIMENSIONS
MAX FORMING AREA	850 X 550 mm
LOWER AND UPPER SERVO MOTORS	5,5  KW
LOWER AND UPPER FORMING HEIGHT	140 mm
FORMING UPPER RESISTANCE	75 KW
FORMING LOWER RESISTANCE	72,8 KW
MOVING NEEDLE BEARING
FORMING GROUP TOTAL MOTOR POWER	18,5 KW
TOTAL HEATING POWER	55 - 60  KW
CUTTING GROUP
MAX CUTTING AREA	850 X 550 mm
LOWER AND UPPER SERVO MOTORS	5,5 KW
LOWER AND UPPER FORMING HEIGHT	140 mm
CUTTING GROUP TOTAL MOTOR POWER	16,75  KW
STACKING GROUP
MAX STACKING AREA	850 X 550 mm
STACKING SERVO MOTOR	3 KW
STACKING GROUP TOTAL MOTOR POWER	4,11 KW























































GENERAL SPECİFİCATİON
MACHINE SIZE  L- H W	12000 X 2600 X 2800
TOTAL WEIGHT	11.000  KG
TOTAL INSTALLED MOTOR POWER	51,61 KW
TOTAL HEATING POWER	50 - 55 KW
