Pipehorn 800Hl Dual-Frequency Pipe & Cable Locator Model Md840

Ad Details Ad Owner Ad Description
Price : 1.500 €
Ad Code : M-461353
Ad Type : For Sale - Used
Views : 18
Date Updated : 01 Apr 2026
Production Type : Brand
Brand : Pipehorn

Vc International Busines Solutions Llc

United States - North Carolina - North Carolina
1239 Pond St, Cary, Nc, 27511-4417, Usa

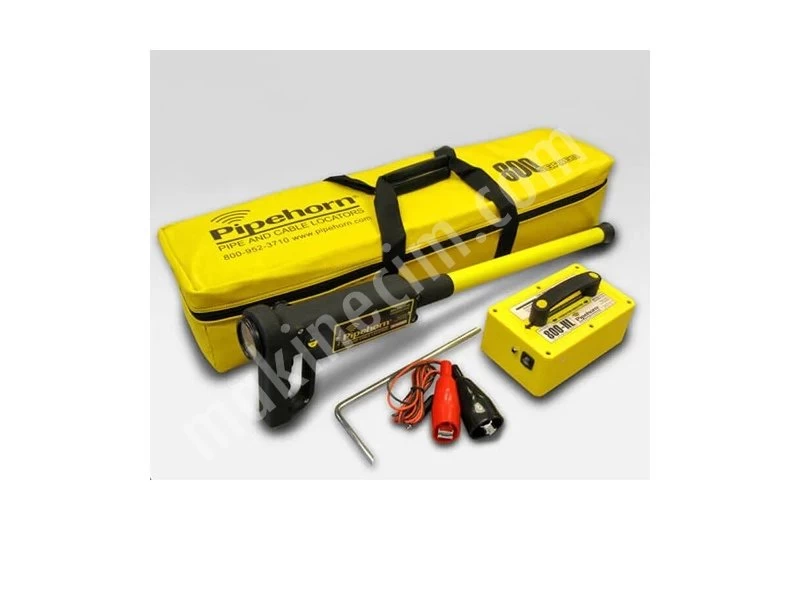

Pipehorn 800Hl Dual-Frequency Pipe & Cable Locator Model Md840 Ad Description

The Pipehorn 800HL is a dual-frequency utility location tool and is always recommended over the Pipehorn single-frequency model. Having the 9 kHz frequency is essential to locating deeper buried utilities. It works great when locating underground cables and utilities.

With superior high frequency (480 kHz) performance, Pipehorn is the best utility location tool in the industry when direct connect is not possible, and on the toughest conductors: coated iron pipes with insulated joints, un-energized power (street/parking lot lights), worn-out tracer tape & wire, short side services & stub-outs, concentric neutrals, and fiber. Nothing sweeps areas for un-marked utilities like a Pipehorn Locator.

The Dual Frequency PipeHorn 800HL model offers simultaneous conductive transmission of both high (480 kHz) and low (9 kHz) frequencies for congested areas and for long distance locates (800-HL). Check either signal with the flick of a switch. Working depth down to 18 feet deep depending on the type of connection, soil conditions and how well the item conducts the signal. Check either signal with the flick of a switch.

No more air broadcast on high frequency conduction. Better signals on the worst conductors.

Fast-response signal strength meter and sharp audio tone for precise pinpointing.

Watertight reinforced receiver wand. More durable than ever.

All-weather, high-impact ABS housing on transmitter. Audio tone indicates battery strength and good connection. Low profile (wont tip over). Bright yellow (easier to see).

Lightweight, space saving carry bag.

Transmitter
  • Frequencies: 480 kHz and 9 kHz
  • Modes: Inductive & Conductive
  • Battery: 8 "C" alkaline batteries
  • On/Off indicator
  • Battery Life Indicator
  • Good Signal Indicator
Receiver
  • Output: Signal strength meter and audible, built in speaker
  • Gain: Smart Control (semi-automatic)
  • Battery: Two 9-volt
  • Weight: 3.4 lbs. (1.5 kg)
Standard Accessories
  • Conductive Cables
  • Extension Sweep Handle
  • Ground Rod
  • Padded Carrying Bag
  • Total Shipping Weight: 18 lbs.

FULL 3-Year Manufacturers Warranty is Included.
