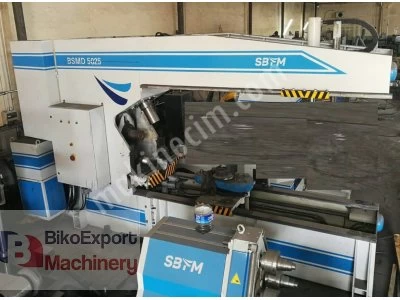

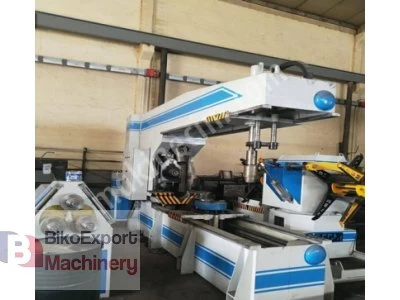

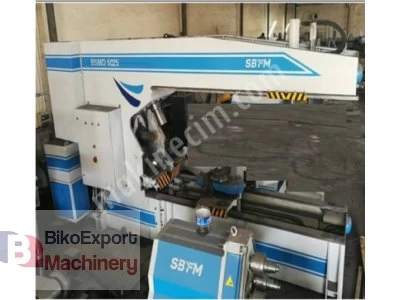

Perforated Curved Edge Bending Machine
The edges of flat or curved circular sheets are plastered with plastering moulds. In this way, the sheet metal edges are radiused and the flanging process is performed.
Sectors Used
LPG
LNG
Liquid fuel
food
autoclaves
reactors
This part, which is at the very beginning of the machine production phase, is the section where, after the necessary calculations of the machines to be produced, the integrated system is viewed in 3D in the digital environment using CAD programs such as AutoCAD and Solidworks, and various analyzes are made. Currently, there are 2 Solidworks CAD programs in our company, 1 of which is with the structural analysis module. Drawings of the machines are made in 3D and 2D in a visually controllable way.
Design processes do not proceed with a single person. Despite design blindness, different opinions are supported by the analysis program during design review meetings within the team, necessary improvements are made and approval is given for the transition to production stages.
