Parts Washing Machine - Hb 130
| Price : | Ask For Price |
| Ad Code : | M-397240 |
| Ad Type : | For Sale - New |
| Views : | 333 |
| Date Updated : | 30 Oct 2023 |
| Production Type : | Brand |
Rekparsan Otomotiv San.Ve Tic.a.Ş.
Türkiye - Konya - KARATAY
Fevzi Cakmak Mh. 10505 Sk. Komsan Is Mrk. No:29 Karatay / Konya / Turkıye
Parts Washing Machine - Hb 130 Ad Description
Operating Conditions
The machine must operate smoothly within a temperature range of 0 °C to +60 °C. Additionally, it must function reliably under high humidity and dusty working environments.
1. Technical Specifications
| Machine Dimensions | Width / Length / Height | 1300 x 1650 x 1600 mm |
| Washing Cabin Internal Dimensions | Width / Length / Height | 1230 x 1230 x 750 mm |
| Washing Basket Diameter Ø | 1200 mm | |
| Loading Height | 650 mm | |
| Basket Capacity | 600 kg | |
| Pump Pressure | 3.6 bar x 30 tons/hour (1 unit) | |
| Pump Power | 2 hp | |
| Pump / Gearbox | PRC / PRC | |
| Total Nozzle Count | 90 pcs | |
| Heater Power | 15 kW | |
| Electrical Supply (V / Phase) | 380 V / 3 | |
| Thermal Insulation System | ---------- | |
| Lid Safety System | Standard | |
| Basket Stop System | ---------- | |
| Contact System | Standard | |
| Thermal and Motor Protections | ---------- | |
| Digital Timer | 0–90 min | |
| Digital Thermostat | 0–120 °C | |
| Lid Opening System | Gas-Spring Assisted | |
| Body Structure | AISI Stainless Steel Single Tank | |
| Tank Capacity | 180 liters | |
| Total Machine Weight | 300 kg | |
| Loading Cart | Standard |
Machine Operating Principle
- The digital thermostat automatically activates when the temperature drops 5 °C below the set value and can be adjusted in 1% increments.
- The basket is designed to rotate inside the machine during operation.
- Detergent water is sprayed from all sides of the basket through fixed nozzles. The machine includes 1 pump and 2 nozzle lines.
- Inside the washing chamber, 180 liters of water are contained. The pumps draw this water and deliver it to the nozzle lines. Filters are installed at suction points to trap small particles.
- Hot water is stored in the machine’s internal tank and heated by two 15 kW heating elements.

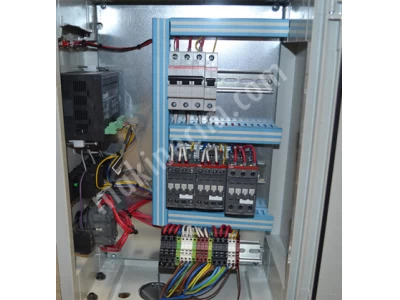

Electrical – Electronic Equipment
- Power supply: 380 V – 50 Hz, 3-phase. All cables are manufactured using standard antigron electrical wiring (ABN type).
