Part Washing Machine - 110 Euros (New Product) Ad Description
Operating Conditions
The machine must operate smoothly within a temperature range of 0 °C to +60 °C. In addition, it must function reliably under high humidity and dusty working conditions.
1. Technical Specifications
| Machine Dimensions | Width / Length / Height | 1100 x 1400 x 1200 mm |
| Washing Cabin Internal Dimensions | Width / Length / Height | 950 x 950 x 750 mm |
| Washing Basket Diameter Ø | 900 mm | |
| Loading Height | 450 mm | |
| Basket Capacity | 750 kg | |
| Pump Pressure | 6.6 bar x 40 tons/hour (1 unit) | |
| Pump Power | 2 hp | |
| Pump / Gearbox | Rekparsan / Yılmaz Gearbox | |
| Total Nozzle Count | 80 pcs | |
| Heater Power | 7.5 kW | |
| Electrical Supply (V / Phase) | 380 V / 3 | |
| Thermal Insulation System | Standard | |
| Lid Safety System | Standard | |
| Basket Stop System | Automatic | |
| Contact System | Standard | |
| Thermal and Motor Protections | Standard | |
| Digital Timer | 0–90 min | |
| Digital Thermostat | 0–120 °C | |
| Lid Opening System | Gas-Spring Assisted | |
| Body Structure | AISI Stainless Steel Double Tank | |
| Tank Capacity | 130 liters | |
| Total Machine Weight | 160 kg |
Standards
The machine is manufactured with a double-tank system and a reinforced body structure. It is produced exclusively by REKPARSAN A.Ş. in Turkey.
- Mechanical components also comply with DIN 5510 / Part 2 (Fire and Smoke Resistance).
- The machine is designed for a minimum service life of 30 years. All materials used are new, fit for purpose, and conform to internationally recognized standards such as UIC, IEC, DIN, NF, and BS or equivalent standards.
- The machine has a minimum protection class of IP 54.
Machine Operating Principle
- The digital thermostat automatically activates when the temperature drops 5 °C below the set value and can be adjusted in 1% increments.

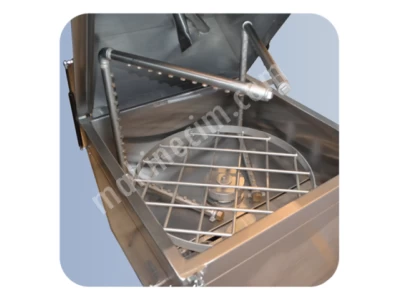

- The basket is designed to rotate inside the machine during operation.
- Detergent water is sprayed from all sides of the basket through fixed nozzles. The machine includes 1 pump and 2 nozzle lines.
- Inside the washing chamber, 130 liters of water are contained. The pumps draw this water and deliver it to the nozzle lines. Filters are installed at suction points to capture small particles.
- Hot water is stored in the machine’s internal tank and heated by a 7.5 kW heating element.
Electrical – Electronic Equipment
- Power supply: 380 V – 50 Hz, 3-phase. All cables are halogen-free, and the control panel and all electrical installations are IP 54 rated, manufactured according to CE and European standards. The entire electrical system of the machine is equipped with SIEMENS components.
