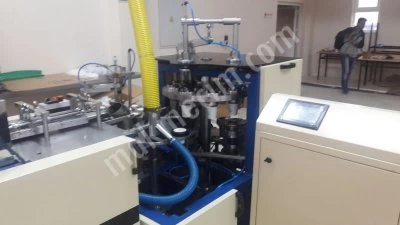

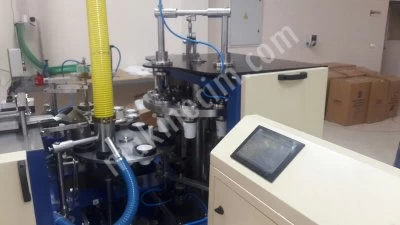

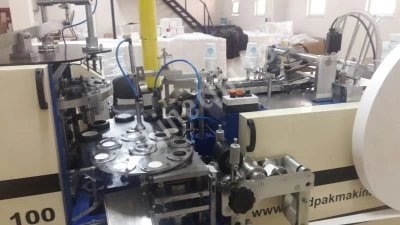

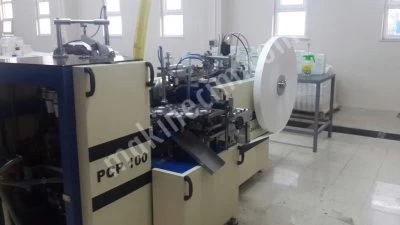

Paper Cup Machine:
| Price : | Ask For Price |
| Ad Code : | M-332813 |
| Ad Type : | For Sale - New |
| Views : | 5741 |
| Date Updated : | 16 Oct 2023 |
| Production Type : | Special Production |
| Brand : | Gold Paketleme Makina Gida San. ve Dis Tic. A.S. |
| Model : | PCP200 |
| Production Year : | 2018 |
Gold Paketleme Mak.Gıda San.Ve Dış Tic.a.Ş.
Paper Cup Machine: Ad Description
The Paper Cup Machine is convenient for the production of single-side or double-side laminated 15-18 PE paper with the density of 170-360 gr/m². The machine produces paper cup with max. %0.5 error rate. The production capacity is 200-220 pcs./min. Because of its design and high technology, it makes hassle-free production and the treatment is easy.
TECNICAL SPECIFICATIONS
|
SPECIFICATIONS |
VALUES |
|
Product Code |
PCP200 |
|
Production Capacity |
200-220 pcs./min |
|
Paper Specifications |
15-18 PE single / double Laminated Paper with 170-360 gr/m² density |
|
Cup Dimensions |
Min. Top Diameter 50mm / Cup Height 50 mm Max. Top Diameter 145mm / Cup Height 178mm |
|
Cup Size |
4-12 OZ |
|
Power Supply |
380V 50Hz |
|
Heating Power |
8 kW |
|
Main Engine Power |
2 kW |
|
Total Energy Power |
14 KW |
|
Weight of the Machine |
2500 kg |
|
Cup Collecting |
Collecting to single point with blower system |
|
Sealing System |
8-point sealing |
|
Control and Reporting |
PLC control system and reporting |
|
Compressed Air Consumption |
6 bar 200 Nl/min ( Purified from Oil and Dust ) |
|
Additional Cup Mold |
Optional |
|
Dimensions of the Machine (L*W*H) |
1800*4000*1100 mm |
