Pan Type Agitator Mixer

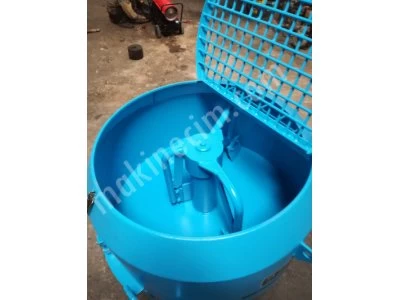

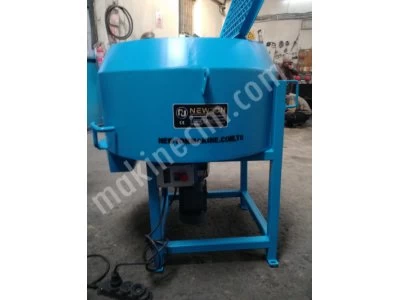

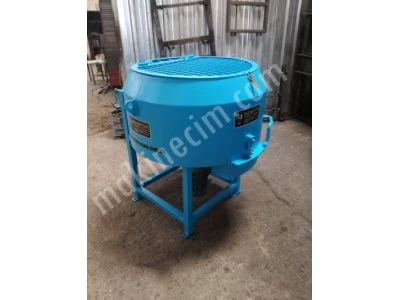

Newton Makine NWKM, Pan Mixer, these boiler type mixers used to prepare concrete samples or mixes, provide a fast and homogeneous mixing movement. These are for easy and practical use; Suitable for laboratory and field purposes. The agitators are equipped with a manually operated drain hole located in the lower part of the pan for direct discharge of the mix into a wheelbarrow or suitable container. The mixing blades and paddle are height adjustable; It is made of wear-resistant special quality hardened steel. Boiler and mixing gears have a large thickness ratio, gears are made of hardened and straightened steel, the motor reducer is in an oil bath with conical coupling. It controls the magneto-thermal switch and releases the automatic coil in the IP67 box. You can find pan type concrete mixer types and features on our website.

Technical Specifications Type: NWKM 125 Lt 250 Lt 350 Lt 500 Lt

Length : 90 cm 100 cm 120 cm 150 cm

Width: 90 cm 100 cm 120 cm 150 cm

Height: 130 cm 150 cm 165 cm 165 cm

Weight: 150 kg 275 kg 375 kg 450 kg

Mixing Volume: 100 Lt 220 Lt 300 Lt 450 Lt

Mixing Capacity: 50-200 Lt/min

Engine Speed: 36rpm

Electric: 2.2 KW 3 HP THREE-PHASE 4 KW 5.5 HP THREE-PHASE 7.5 KW 10 HP THREE-PHASE
