Pallet Stretch Wrapper

Machinewb-stl-custom11" style="margin-bottom: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-variant-alternates: normal; font-size-adjust: none; font-language-override: normal; font-kerning: auto; font-optical-sizing: auto; font-feature-settings: normal; font-variation-settings: normal; font-variant-position: normal; font-variant-emoji: normal; font-stretch: normal; font-size: 16px; line-height: 24px; font-family: Inter, Arial, "sans-serif"; color: rgb(55, 57, 60);">Max. pallet dimensions: 2200 mm (H), 1200 mm x 1200 mm (W)

Max. pallet weight: 1500 kg

Turntable diameter: 1650 mm. Optionally 1800mm-2000mm

4 wrapping programs:

1- Standart wrapping (Up & Down)

2- Crosswise wrapping

3- Wrapping up

4- While wrapping, waiting on the top of the pallet to cover sheet etc. for upper protection.

• PLC system

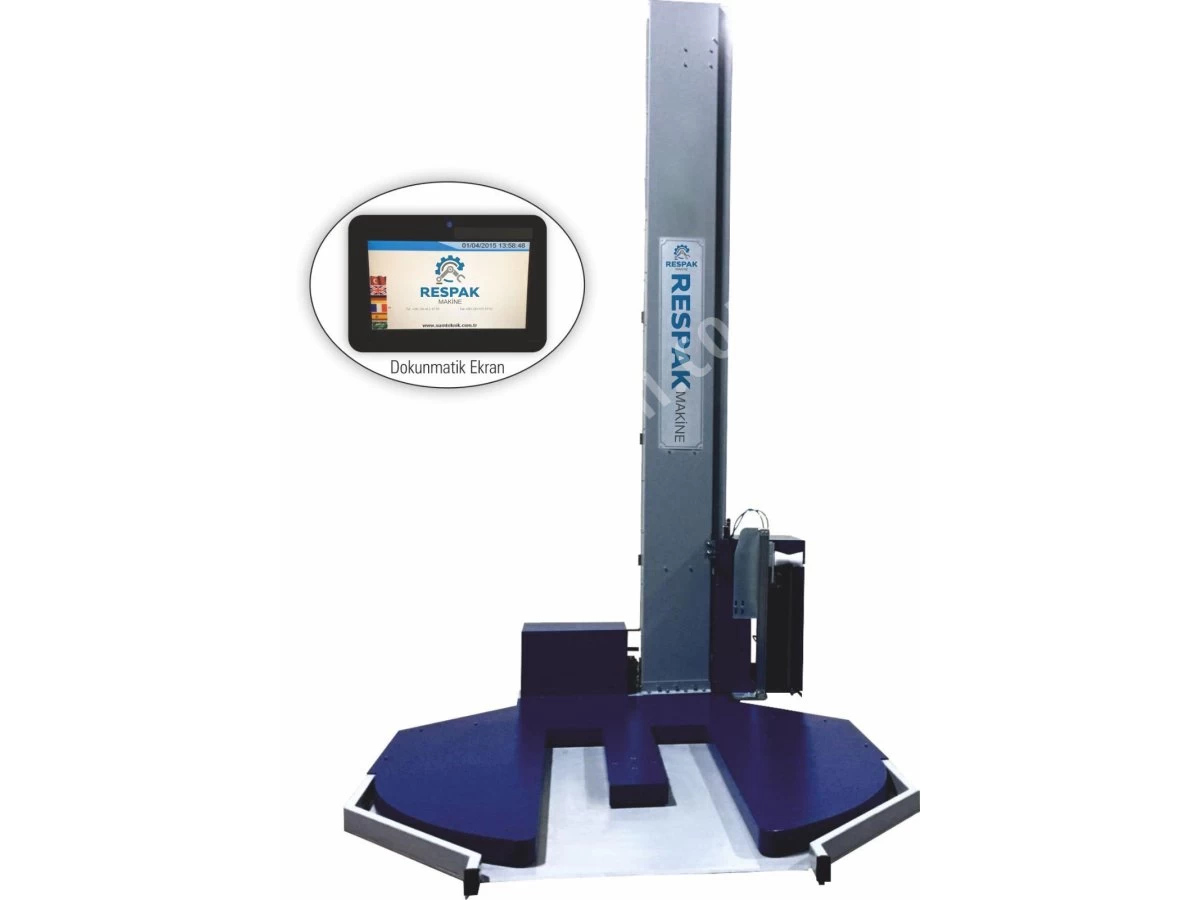

• Touch screen HMI in 6 different languages (Turkish, English,

• German, French, Spanish, Arabic)

• Elevator up-down speed adjustement

• Ability to adjust turntable speed

• Able to work on manual mode

• Film roll diameter 250 mm, Film roll inner diameter 76 mm, Film roll width 500 mm

• Colour: Ral 7040-5002 (Gray-Blue)

• Turntable speed adjustable between 7-12 rpm

• Automatic pallet height detection by photocell

• Inverter for soft starting and stopping

• Turntable thickness: 6 mm

• Power requirement: 220V 50/60Hz 1 ph

• Installed power: 1,4 kW

• The whole electronic system is made with PLC system

• Loading ramp is included

• CE certification

• Made in Turkey
