Operates With 3-Phase 400V-50/60 Hz Mains Voltage and Generators

Operates with 3-Phase 400V-50/60 Hz mains voltage and generators. Tolerates voltage fluctuations up to 15%. Thanks to inverter technology, it provides higher energy efficiency compared to conventional machines. Ensures excellent welding characteristics with all types of solid and flux-cored wires.

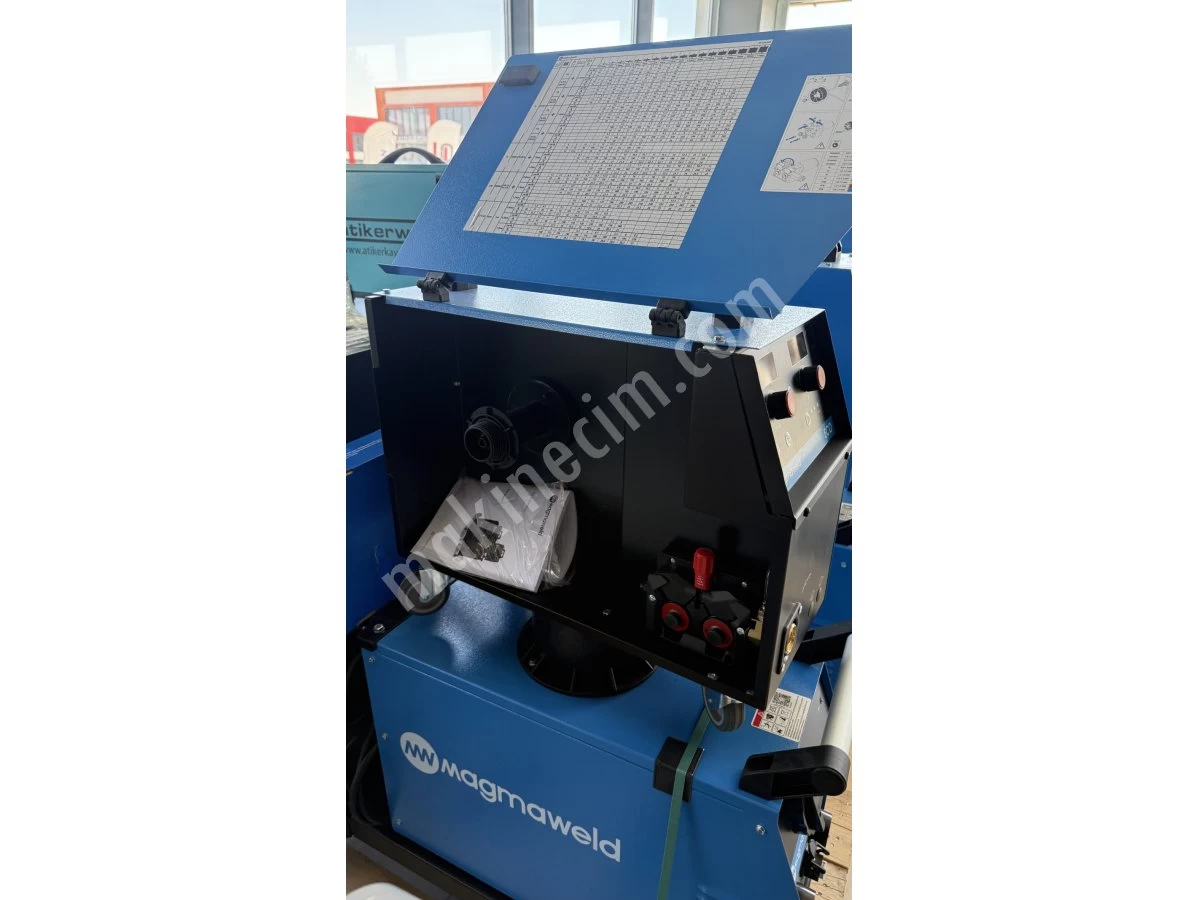

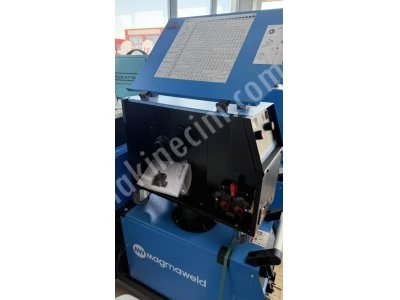

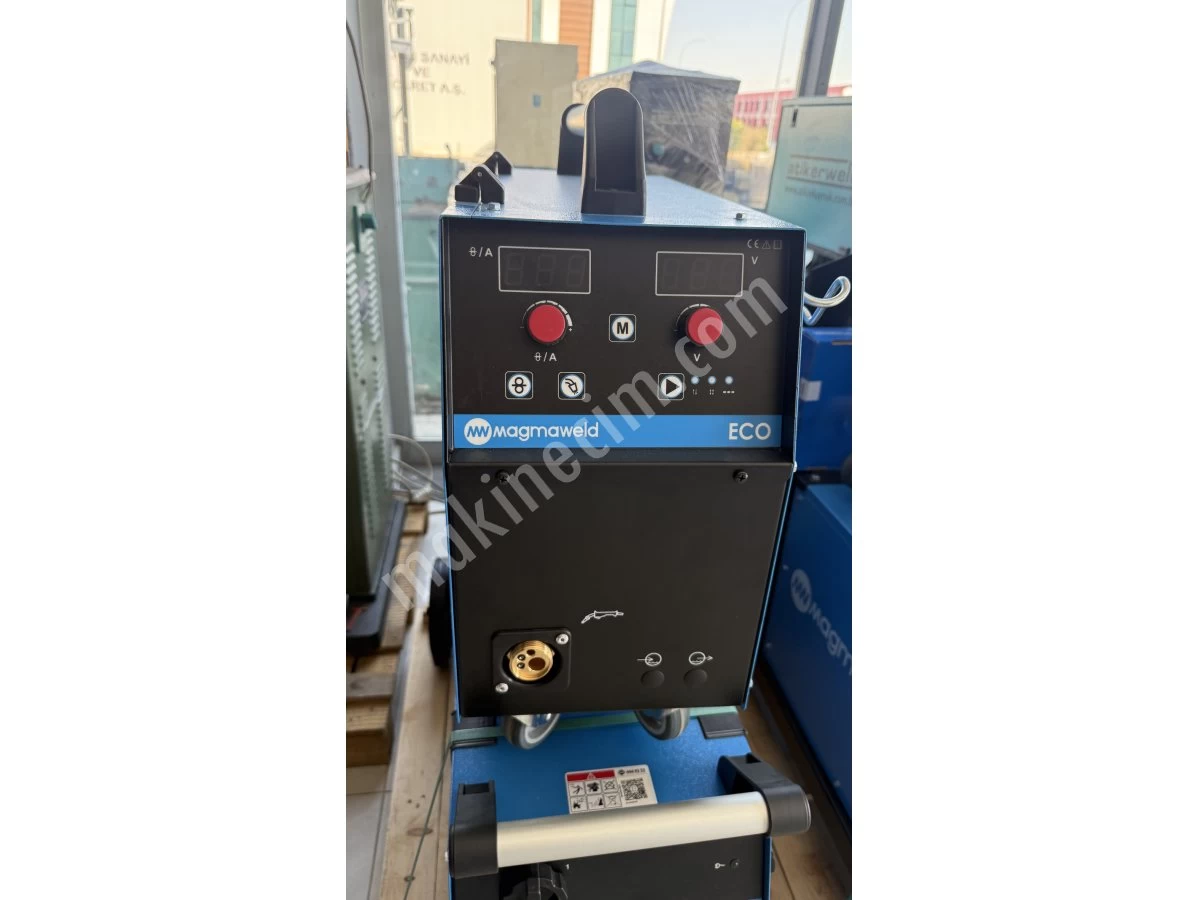

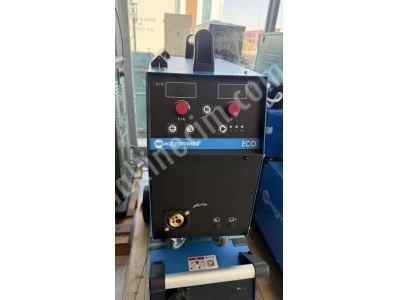

The 4-roller wire feeding system allows stable feeding even with long torches, enabling continuous welding without deforming soft wires such as aluminum and flux-cored wires. Welding voltage and wire feeding speed (welding current) are adjustable from the front panel. The optimum welding parameter selection chart is located on the inside of the wire feeder cover.

Free wire feeding and gas test buttons, trigger mode (2/4) and spot welding modes are available. Soft Start, Pre-Gas, Post-Gas, Crater Filling, Burn-Back, and flow sensor settings can be adjusted via the digital panel.

Compatible with ø300, ø270, and ø200 mm spools, as well as all drum packages. Equipped with a 24V output for a CO2 heater. Large wheels and a gas cylinder platform allow easy movement both in the workshop and on-site. Protected against missing phase, excessively high or low mains voltage. Degree of protection: IP 23S.
