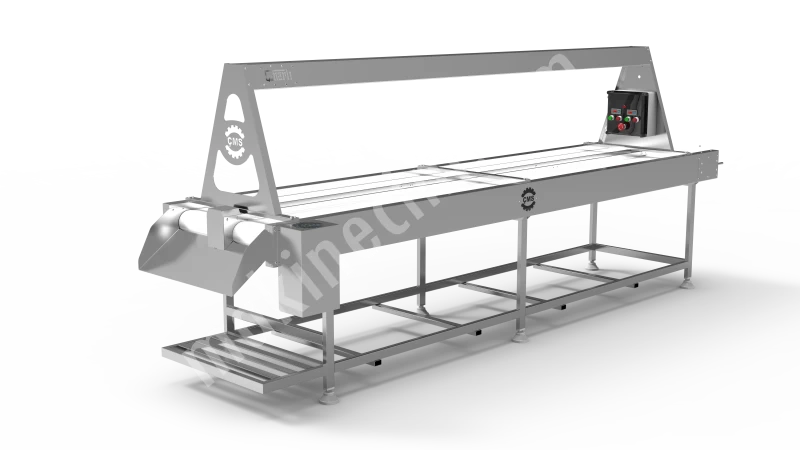

OLIVE SELECTION BAND

Ad Details Ad Owner Ad Description
Price : Ask For Price
Ad Code : M-206198
Ad Type : For Sale - New
Views : 410
Date Updated : 11 Jul 2016
Production Type : Special Production

Çınarlı Makine San. Tic. A. Ş.

Türkiye - Manisa - Akhisar
Akhisar Organize Sanayi Bölgesi 3. Cadde No: 16-18 Akhisar / Manisa / Türkiye
0236 427 xx xx

OLIVE SELECTION BAND Ad Description

Technical Details

Used in the selection of different products, the selection band is designed in 3-4-6-8 meters length. Products fall on a feed band connected to the machine then fall on the selection band. Thanks to the electronic speed control system, the speed of the feed band and selection band can be adjusted seperately and ungradually. Lighting system on the machine provides an easy working environment to the workers. The machine is completely made of stainless steel.

FEATURES
  • Olive selection band with electronic speed control
  • Feed band with electronic speed control
  • Lighting system
  • Loss channel
  • Ip 65 plastic control board
  • 220 V
  • PVC BAND confirming to FDA
  • AISI 304 stainless steel body



    ÇM007-B OLIVE SELECTION BAND
    TECHNICAL DATA
    MODEL ÇM007-B3m ÇM007-B4m ÇM007-B6m ÇM007-B8m
    Length (Selection line) 3000mm 4000mm 6000mm 8000mm
    Length (Elevator+ Machine) 4800mm 5800mm 7800mm 9800mm
    Width 1680mm 1770mm 1770mm 1770mm
    Band Width 580mm 670mm 670mm 670mm
    Work Height 900mm 900mm 900mm 900mm
    Engine Power 0,37kw + 0,37kw 0,37kw + 0,37kw 0,37kw + 0,37kw 0,75kw+ 0,37kw
stainless steel machine
