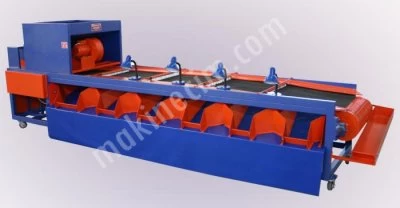

OLIVE GRADING MACHINE - ELECTROSTATIC PAINTED

Ad Details Ad Owner Ad Description
Price : Ask For Price
Ad Code : M-206169
Ad Type : For Sale - New
Views : 2006
Date Updated : 31 Mar 2016
Production Type : Special Production

Çınarlı Makine San. Tic. A. Ş.

Türkiye - Manisa - Akhisar
Akhisar Organize Sanayi Bölgesi 3. Cadde No: 16-18 Akhisar / Manisa / Türkiye
0236 427 xx xx

OLIVE GRADING MACHINE - ELECTROSTATIC PAINTED Ad Description

Technical Details

The machine is used in pre-classification and cleaning of olive picked from the garden. Olives to be classified are discharged in the tank placed on the machine. The machine separates foreign materials such as leaves, stone, soil, branch from the olive by vibrated sieving and fan system. As the section and belt distance are fixed and cannot be changed, it ensures a certain standard for commerce of raw olive.

FEATURES
  • 1500–2000 Kg/hour capacity
  • V belt
  • Vibrating sieving system
  • Lighting lamps
  • Leaf and other foreign materials cleaning fan
  • Electrostatic painted steel profile and DKP iron sheet body
  • 220 V
  • PVC covering on lower table
  • Easy to carry with rotating wheels
  • Corrosion proof plastic rollers and drums
  • Easy to remove and clean vibrating sieving grid
  • Belt tensioning system
  • Leaf and foreign material channel on vibrating sieve
  • PU restoring brushes over the roller



ÇM 002 ELECTROSTATIC PAINTED - V BELTED OLIVE GRADING MACHINE
TECHNICAL DATA
MODEL ÇM 004–3,5 m ÇM 004–4,5 m ÇM 004–5,5 m
Lenght 3350 mm 4450 mm 5450 mm
Width 900 mm 1050 mm 1050 mm
Height 1400 mm 1400 mm 1400 mm
Engine Power 0,75 kw + 0,37 kw 0,75  kw + 0,37 kw 0,75 kw + 0,37 kw
Number of V Belts 13 units V belt 18 units V belt 18 units V belt
Capacity 1500 kg/hour 2000 kg/hour 2000 kg/hour
