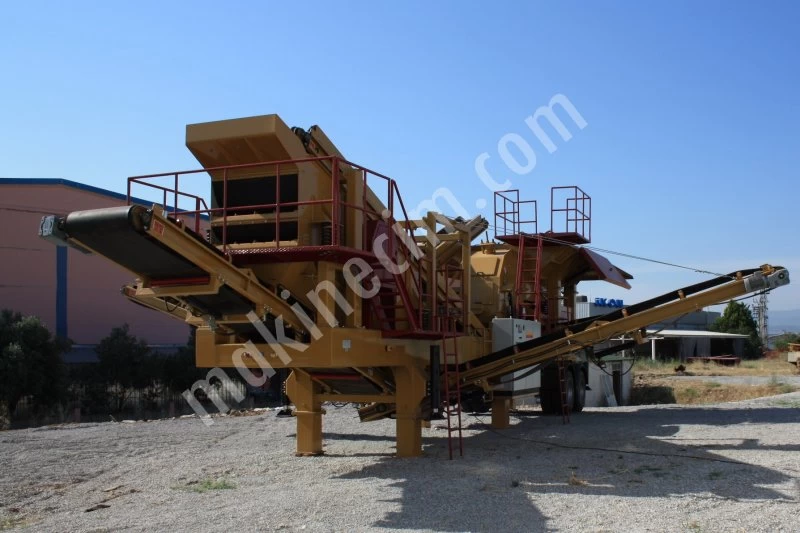

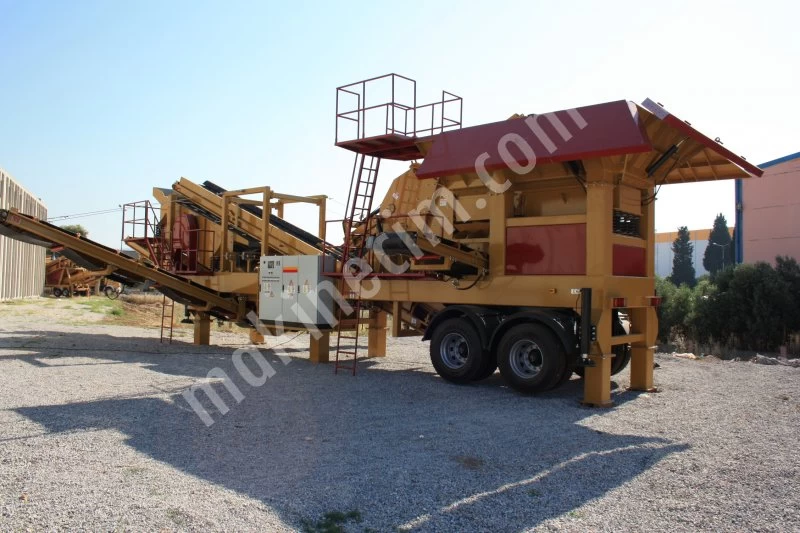

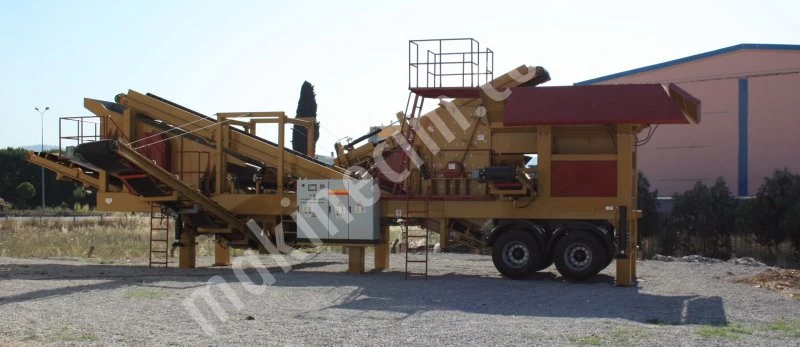

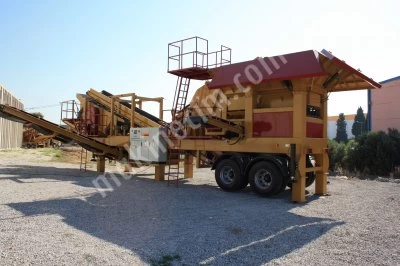

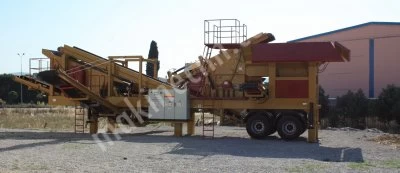

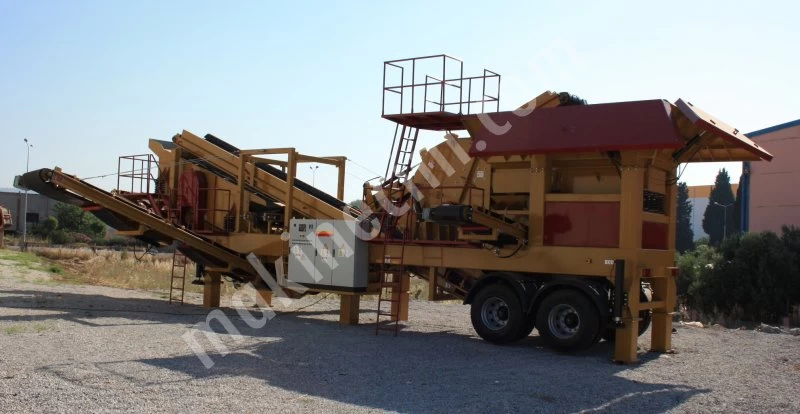

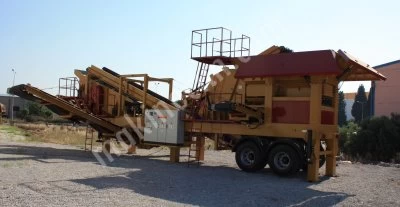

New Generation Mobile Crushing and Screening Plant Closed Circuit Type Dragon 9

• Dragon 9 wheel suspension
• Total teen(10) blocking legs four(4) of them hydraulic ally operated
• Airbrakes, running lights, and mud flaps
• Fixed walkway on both sides of cone with hand rails and kick plate
• Walkways and ladders both sides of screen & front cross over
• Access ladder to chassis
• Hydraulic raise and lower screen subframe
• Hydraulic System and Hydraulic Legs
• Mobile Chassis 2 axle chassis
• Four (4) hydraulic levelling jack system

Hopper and Feeder

Hopper: 12 m3
Vibrator System
Feeder Grizzly System
Feeder  Size : 800 x 3000mm  2nos. Vibrator adjusttable throw amplitude italvibras or Oli brand.

Turbo Impact Crusher

Primary,Secondary and Tertiary functions one machine.

Rotor Size : 1000 x 800mm   New Generation , New System Crusher

Strong Body, Strong rotor, strong setting blocks
132 – 160 kw Electiral Motor , sheaves, v-belts

We furnish the liners of Dragon Turbo Crushers by Hardox 500
Rotor pallets 16-18 % manganese, chromium
Setting block Liners 16-18 % manganese, chromium

Easy adjustment mechanism

Improved latest technology Crushing system

Main Feed Belt

800 mm Main Conveyor belt

Main Conveyor 7,5 kw Electrical Motor
New System Gearbox reduction

Dragon Screen 3 Deck High Capacity

Screen Size :1300x 4000 mm 3 Deck High Capacity Screen

Motor : 11 Kw Electrical Motor

Stock Conveyors 3 Unit

2 Unit 600 mm Conveyor belt
Motor : 4 kw Electrical Motor

1 Unit 800 mm Main Stock Conveyor belt

Motor : 5,5 Kw Electrical Motor

Feedback Conveyor 1. 600 mm

Motor: 2.2 kw

Feedback Conveyor belt 2. 600 mm
Motor : 4 kw Electrical Motor


Hydraulic block adjustment, Easy To Setup, Primary Block,Secondary Block

Remote Control For One-Man-Operation.

Siemens Brand Electrical Equipment

Standard Equipment

• Extra Hopper + 8 m3
• Dust Control System - Dust Reduction
• Bypass Conveyor Belt

Optionals

• Generator ( Cummins ,Perkins , Cat , Doosan ) Engine power 275 kva generator  (Optional)
• Magnet Conveyor Belt ( Optional )

Mobile Crushing and Screening Plant DRAGON 9

• Maximum feeding size :  800mm
• Ideal  feeding size : 0 - 650 mm
• Final size : 0 - 20 mm (0-5 mm , 5-12 mm ,12-20 mm or  requested three types material and  plus by-pass output production )
• Feed capacity  100 – 150 t/h
• Transport dimensions (w x h x l)  3,000 x 4,500 x 15000 mm
• Total weight 40,000 kg
