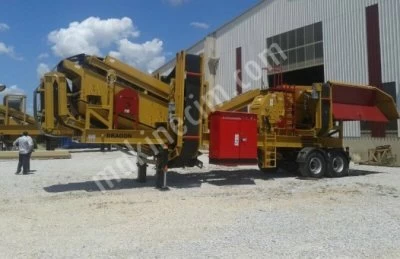

New Generation Mobile Crushing and Screening Plant Closed Circuit Type Dragon 7

Mobile Chassis

Dragon 7 wheel suspension

Total teen(10) blocking legs four(4) of them hydraulic ally operated

Airbrakes, running lights, and mud flaps

Fixed walkway on both sides with hand rails

Walkways and ladders both sides of screen & front crossover

Access ladder to chassis

Hydraulic System and Hydraulic Legs

Mobile Chassis 2 axle chassis

Four (4) hydraulic levelling jack system

Hopper and Feeder

Hopper: 10 m3

Vibrator System

Feeder Grizzly System

Feeder Size : 650 x 2800 mm  2 nos. Vibrator adjusttable throw amplitude italvibras or Oli brand



Turbo Impact Crusher

Primary , Secondary and Tertiary functions one machine.

Rotor Size : 1000 x 650mm New Generation , New System Crusher

Strong Body, Strong rotor, strong setting blocks

110 kw Motor , sheaves, v-belts

We furnish the liners of Dragon Turbo Crushers by Hardox 500.

Rotor pallets 16-18 % manganese, chromium

Setting block Liners 16-18 % manganese, chromium

Easy adjustment mechanism

2 Side usable pallets

Improved latest technology Crushing system



Main Conveyor Belt

750 mm Main Conveyor belt

Main Conveyor 5,5 kW

New system gearbox reduction



Dragon Screen 3 Deck High Capacity

Screen Size :1250x 3000 mm 3 Deck High Capacity

Motor : 11 kW



Stock Conveyors 3 Units

 2 units: 500 mm stock conveyor belt

Motor : 3 kW

1 unit: 700 mm stock conveyor belt

Motor : 4 kW

1. Feedback Conveyor  500 mm

Motor: 2.2 kW

2. Feedback Conveyor  500 mm

Motor : 3 kW

Hydraulic block adjustment, Easy To Setup, Primary Block



Mobile Chassis :

Control Board Schneider Electric

Turbo crusher enabling speed setting

Remote Control For One-Man-Operation.

Siemens Brand Electrical Equipment



Standard Equipment

Extra Hopper + 7 m3

Dust Control System - Dust Reduction

Bypass Conveyor Belt



Optionals

Generator ( Cummins ,Perkins , Cat , Doosan ) Engine power 200 kva generator  (Optional)

Magnet Conveyor Belt ( Optional )



New Technology Crushing and Screening plant Closed Circuit Crushing Plant

* New Product

* New technology

* This is a revolution Crushing and Screening plant Closed Circuit Crushing Plant Dragon 7

* New System Crushing and Screening plant latest Technology

* Easy, Practical, Quick Installation, simple transport, use it anywhere.

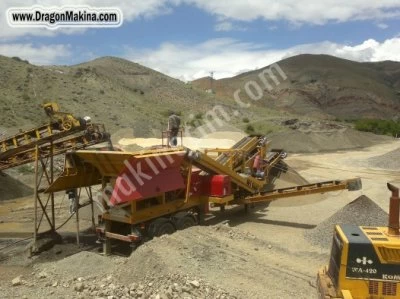

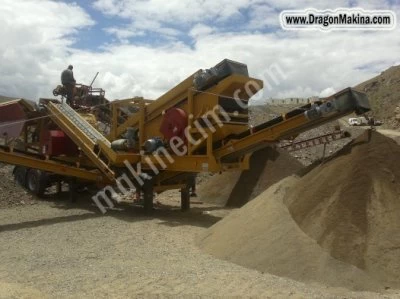

Mobile Crushing and Screening Plant DRAGON 7

Maximum feeding size :  600mm

Ideal  feeding size : 0 - 500mm

Final size : 0 - 20 mm (0-5 mm , 5-12 mm ,12-20 mm or  requested three types material and  plus by-pass output production )

Feeding capacity 80 – 100 t/h

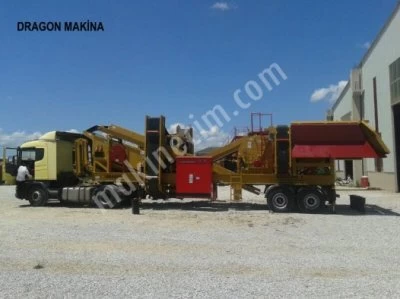

Transport dimensions (w x h x l)  3,000 x 4,400 x 12,000 mm

Total weight 32.000 kg
