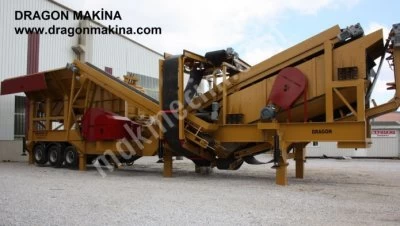

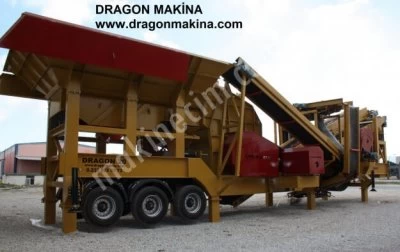

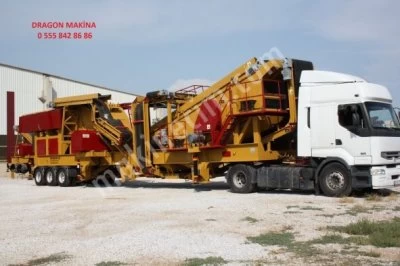

New Generation Mobile Crushing and Screening Plant Closed Circuit Type Dragon 20

Wheel suspension Total fourteen(14) blocking legs four(6) of them hydraulically operated Airbrakes, running lights, and mud flaps Fixed walkways on both sides with hand rails Access ladder to chassis Hydraulic Levelling System 3 axle chassis Six(6) hydraulic levelling jack system Hopper and Feeder Approximately 15 m3 capacity Vibrator System Feeder Grizzly System Feeder Size : 1250 x 4500 mm Vibromotor Oli Turbo Impact Crusher Rotor Size : 1500 x 1400mm New Generation, New System Crusher Strong body, strong rotor, strong setting blocks 250 kW 1500 RPM, sheaves, v-belts Hydraulic opening system Hydraulic block adjustment, Easy to set up, primary block, secondery block Easy setting mechanism Both sides usable pallets Improved latest technology crushing system Dragon Screen 3 Deck (High Capacity) Screen Size: 2000x 5000 mm 3 Deck high capacity Motor : 22 kW Main Conveyor Belt 1100 mm Motor: 11 kW Stock Conveyors (3 Units) 2 Units: 600 mm stock conveyor belt Motor : 4 kW 1 Unit: 1100 mm stock conveyor belt Motor : 7.5 kW Feedback Conveyor (1) 650 mm Motor: 2.2 kW Feedback Conveyor (2) 750 mm Motor: 5.5 kW Bypass Conveyor 500 mm Motor: 2.2 kW Mobile Chassis : Triple Axle chassis Control Board: Siemens Remote Control For One-Man-Operation. Hydraulic System Dust Suppression Control System Extra Hopper + 15 m3 Generator (Optional) Total Motor Power: 290 kW Output Sizes: 0 – 20 mm (Changeable) Transport Dimensions (WxHxL): 4000x4500x18000mm Maximum Feeding Size: 1300x1300 mm Total Weight: 64 tons Other benefits of Dragon 20
