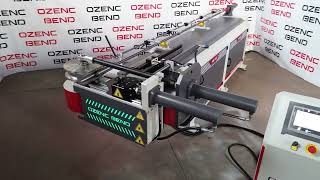

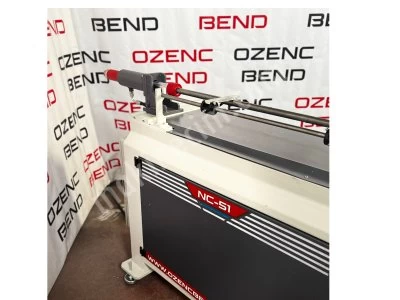

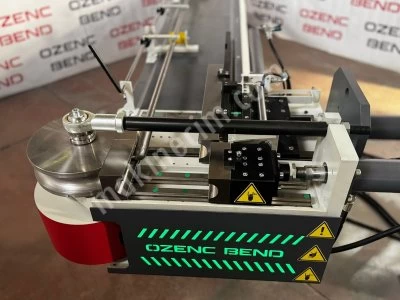

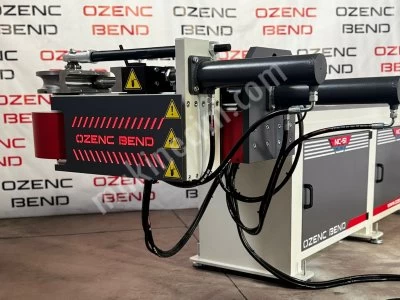

Nc51 Semi-Automatic Mandrel Full Hydraulic Pipe Bending Machine Ozenc Bend

The NC 51 Hydraulic Pipe Bending Machine is a semi-automatic, NC-controlled machine designed for precise and repeatable bending of pipes up to Ø51 mm in diameter. Thanks to its hydraulic power and robust housing, it ensures long-lasting and stable operation.

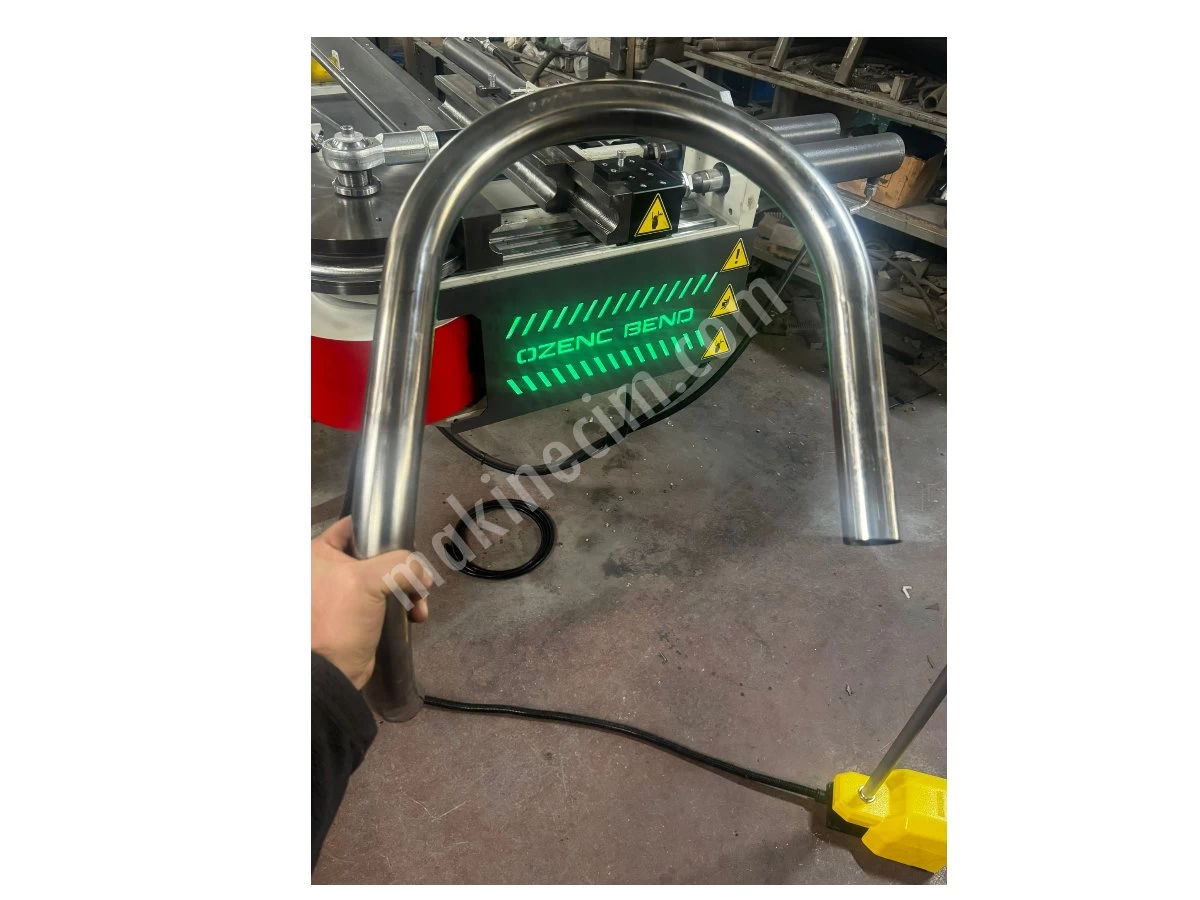

The machine performs pipe bending operations quickly and with high quality in many sectors, including the furniture industry, automotive sub-industry, pool equipment, greenhouse systems, railing production, sports equipment, and metal construction. The NC control system allows for easy adjustment of the bending angle, achieving high repeatability in mass production.

The machine offers operator-friendly operation thanks to its powerful hydraulic system and high-quality mechanical components. Die changes are easy for different diameters and bending radii. Optionally, a mandrel bending system minimizes wrinkling and ovalization in thin-walled pipes.

Maximum Pipe Diameter: Ø51 mm x 3 mm

Maximum Mold Diameter: Ø300 mm

Minimum Mold Diameter: Ø80 mm

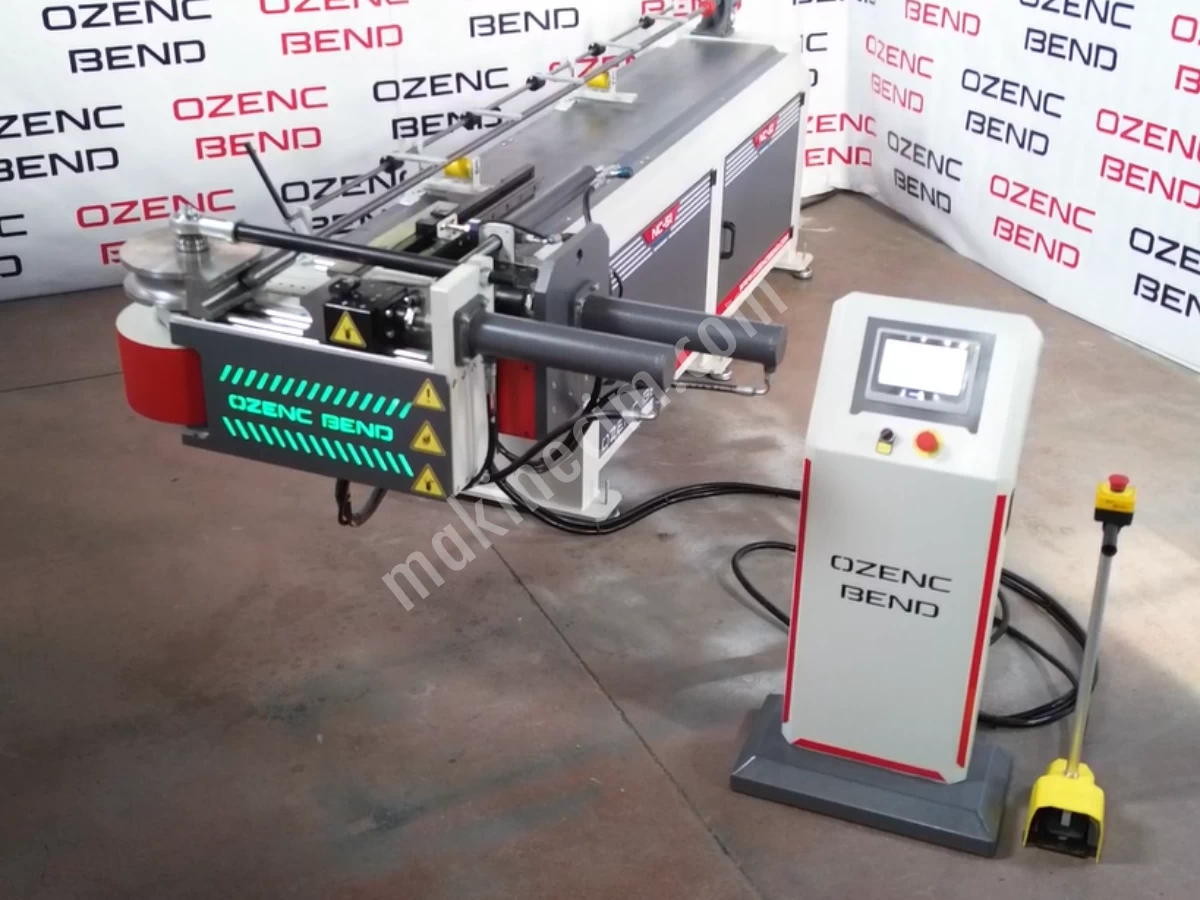

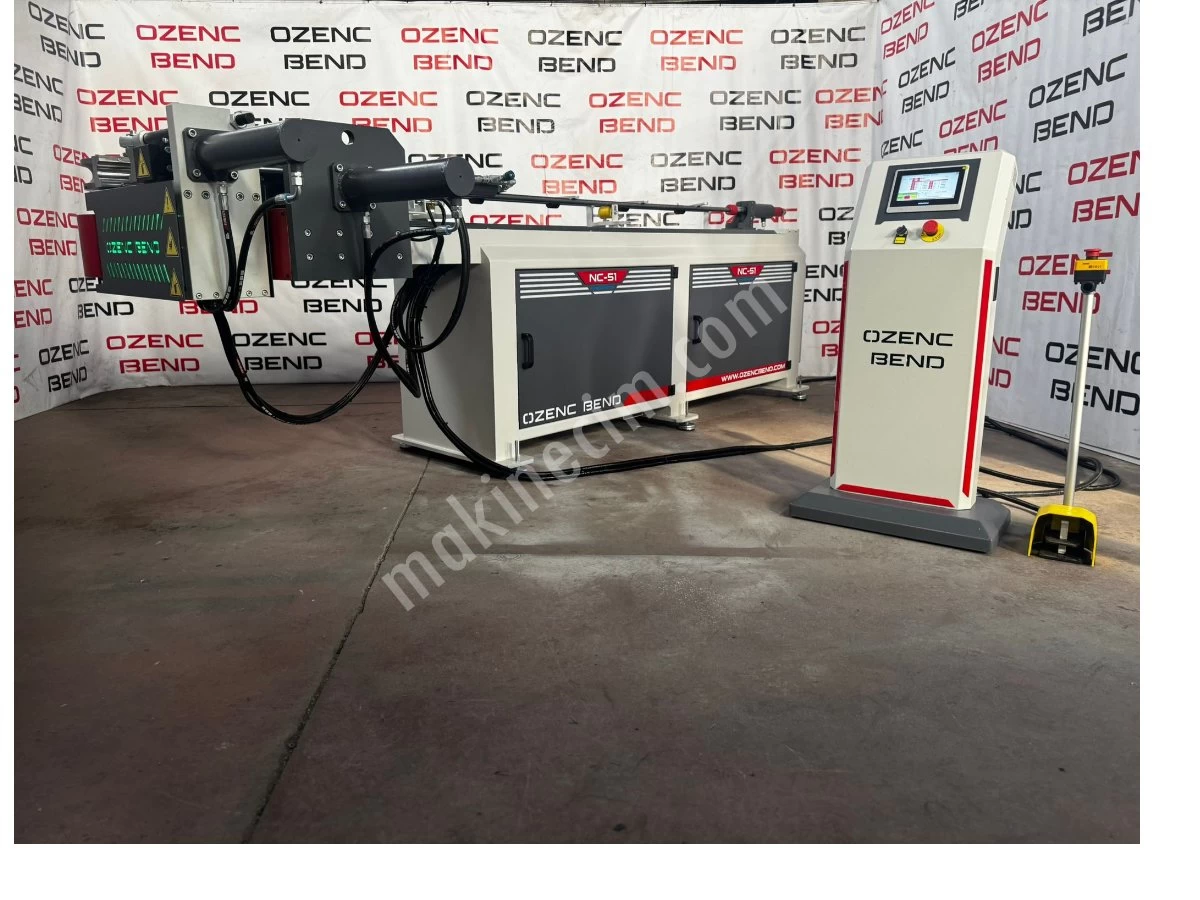

Control Panel: 7-inch Touch Screen

Angle Input: Ability to Define 10 Different Bending Angles

Programming: Ability to Save Recipes to Separate Files

Control: Foot Pedal Control

Working Modes: Support for Mandrel and Mandrel-less Operation

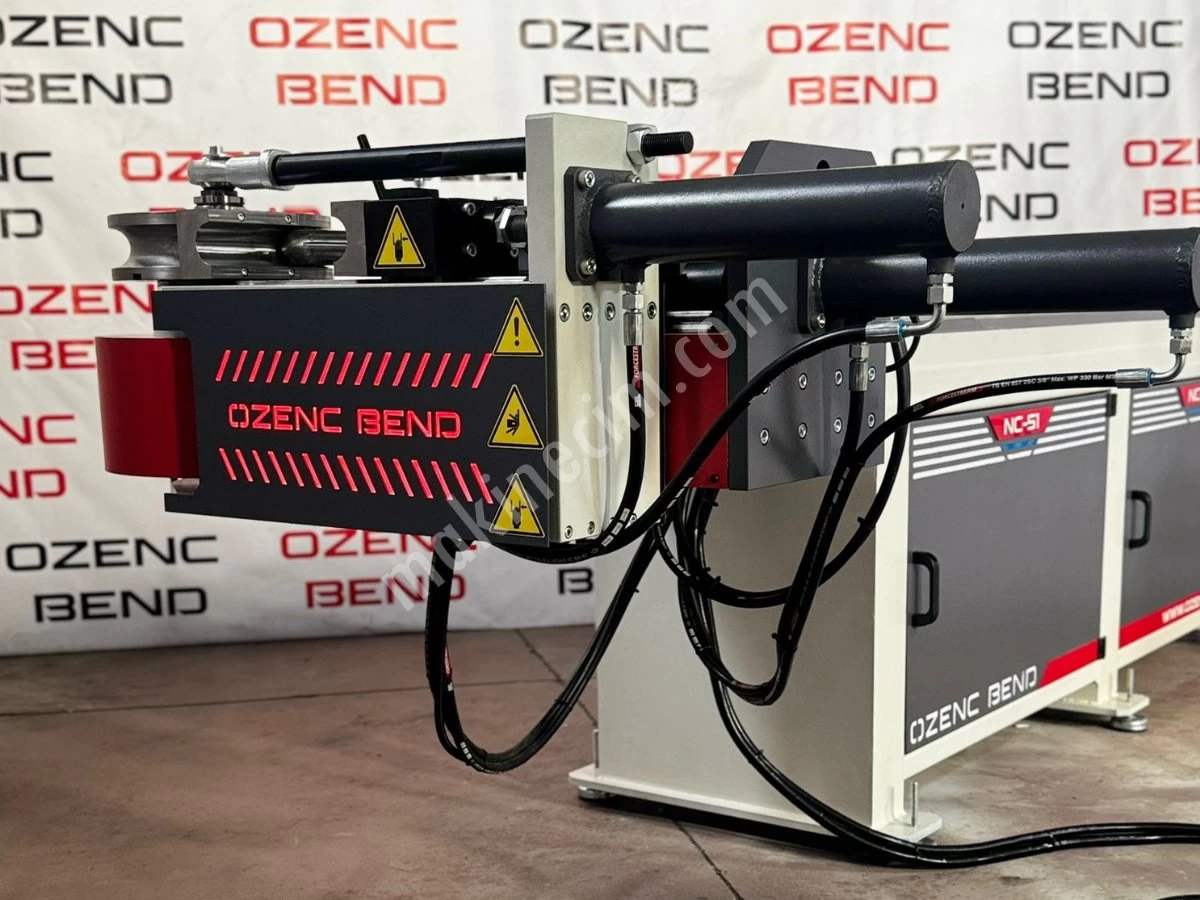

Bending System: Hydraulic Bending Mechanism

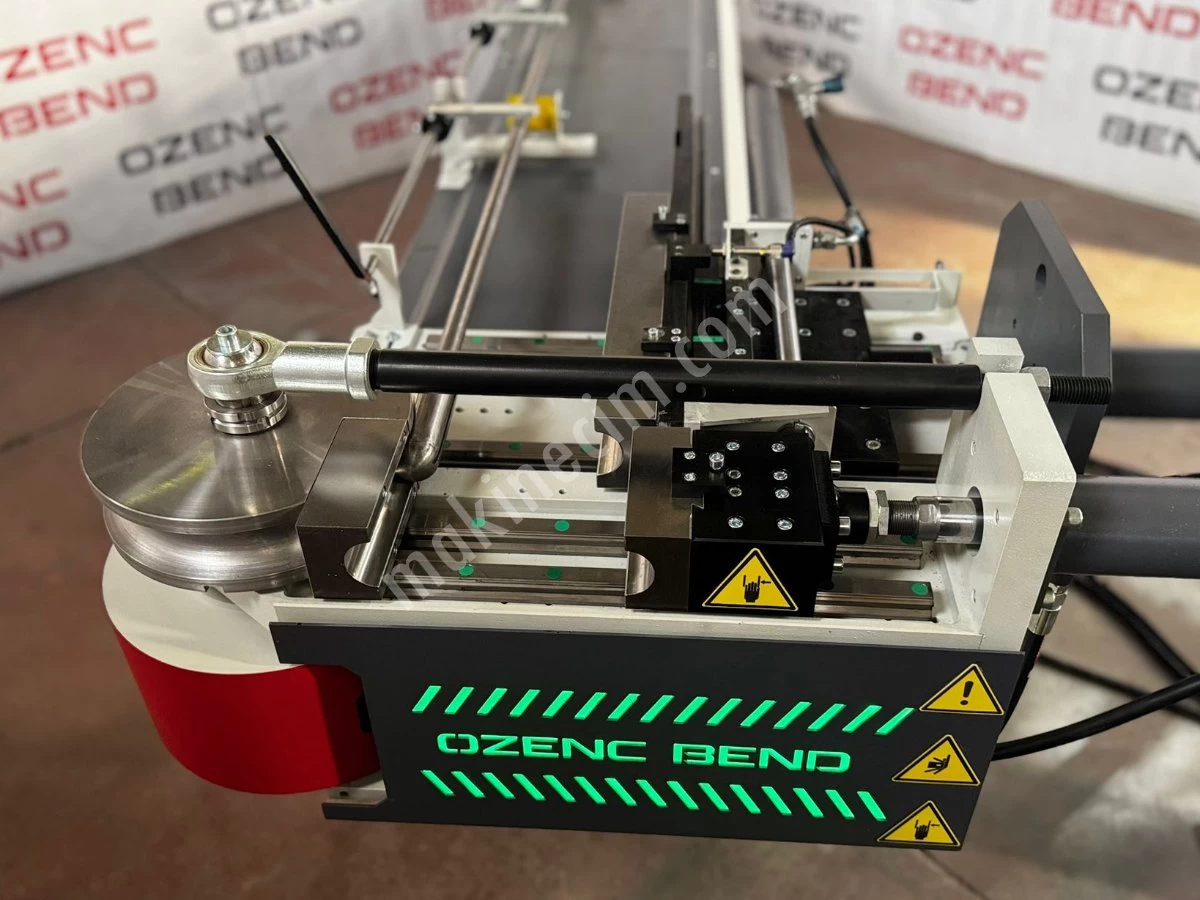

Clamping System: Hydraulic Clamping System

Mandrel System: Hydraulic System

Bearing: Hydraulic System
