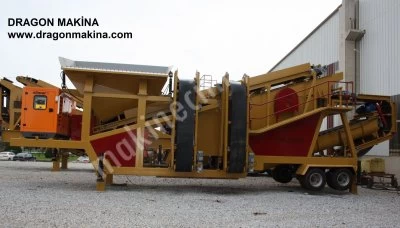

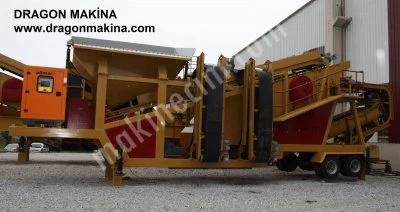

Mobile Washing and Screening Plants 617

Mobile Washing and Screening Plants 617 New Generation * New System *

Mobile Washing and Screening Plants 617 (System Capacity 130-220 tons / hour)

Hopper System 7 m3

Main Feeding Conveyor System 800mm

High capacity vibrating screener system with 1500 x 4500 dimension (Washing Type )

Motor: 15 kW

Washing Screew 650 x 6000 Double Type (30-80 m3/h  WATER REQUIREMENT)

Sand Stock conveyor

Stock conveyor 3 Pcs.

Mobile Chassis System

Hydraulic system And Hydraulic Legs

* Remote Control for One-Man-Operation.

Siemens Brand Electrical Equipment

Standard Equipment

Dust Control System - Dust Reduction

Optionals

* Generator ( Cummins ,Perkins , Cat , Doosan ) Engine power 100 kva generator  (Optional)

Transport Dimensions (wxhxl): 3000x4500x13000mm

Weight : 29.000 Kg

**All our products are CE certified by the European Union.
