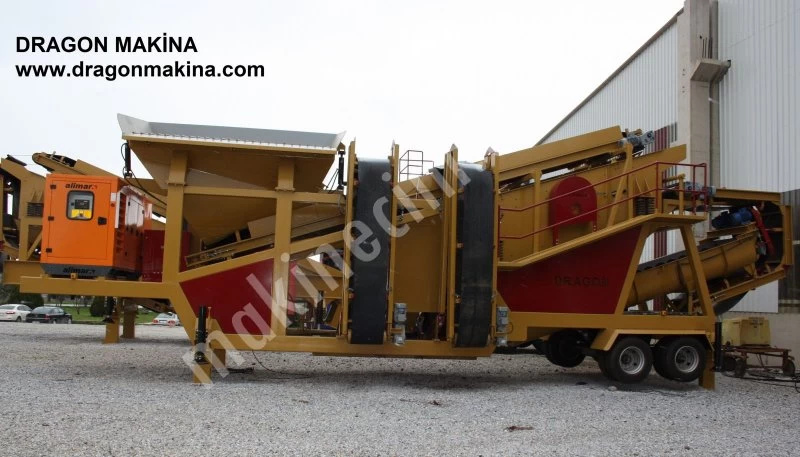

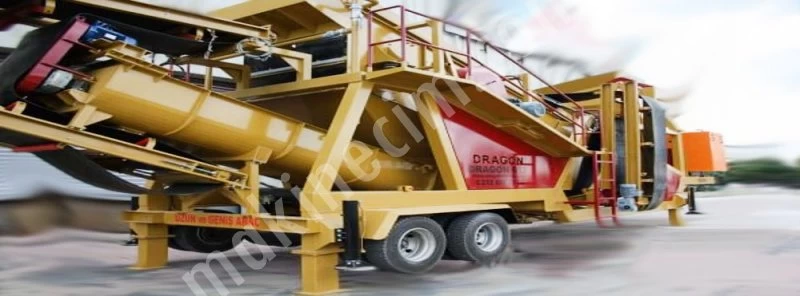

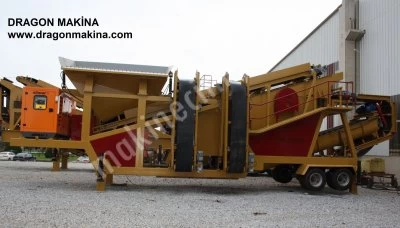

Mobile Washing and Screening Plant

Mobile Chassis Wheel suspension Tandem axle, air brakes, towing eye and taillights It can be towed up to speed of 60 km/h on highway. Hopper and Feeder Approximately 7 m3 capacity Conveyor Belt System Feeder Grizzly System Feeder Size : 800 mm Dragon Screen 3 Deck (High Capacity) Screen Size :1500x4500 mm 3 Deck high capacity Motor : 15 kW Main Conveyor Belt 800 mm Motor: 7.5 kW Screw Conveyor 600 mm Stock Conveyors (3 Units) Sand Stock Conveyor Control Board: Siemens Washing Screw Double Type 650x6000 Remote Control For One-Man-Operation. Hydraulic System Generator (Optional) Total Motor Power: 50 kW Output Sizes: Adjustable Transport Dimensions (WxHxL): 3000x4500x13000mm Deck Size: 3 Total Weight: 29 tons Water requriment: 30-80 m3/hour Other benefits of Dragon 617:
