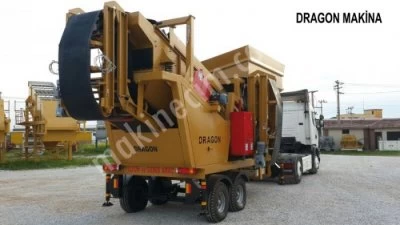

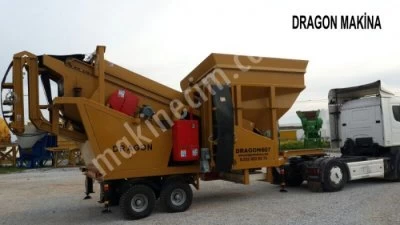

Mobile Screening Plants 607

Mobile Screening Plants Dragon 607

Technical Specifications

Hopper Volume: 5 m³

Hopper Grid: Hydraulic Tilting, Adjustable Slope, Remote Controlled,

Main Belt Conveyor 800x6200 mm, 7.5 kW Gear-Reducer

Special Screening Machine: Forced Vibratory, Eccentric Pivot, 4 Housings, 7.5 kW E-Motor

Screen 2 deck

Screen Dimension: 1200x3000 mm

Capacity: max. 60 - 130 m3/hour

3 Units of Collapsible Belt Conveyor Attached To The Plant;

Belt Conveyor for Over-Size Material: 600x6400 mm, 3.0 kW Drum Motor

Control Panel

Remote Control for One-Man-Operation.

Chassis: Tandem Axle, Air Brakes, Towing Eye and Taillights

It can be towed up to speed of 60 km/h on highway.

Total Weight : 9.000 Kg

**All our products are CE certified by the European Union.
