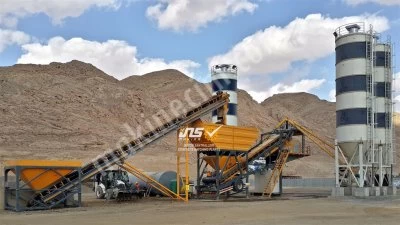

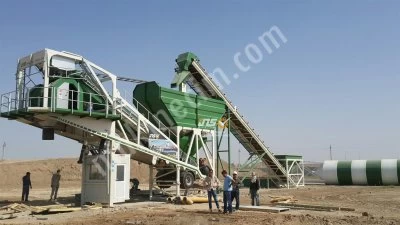

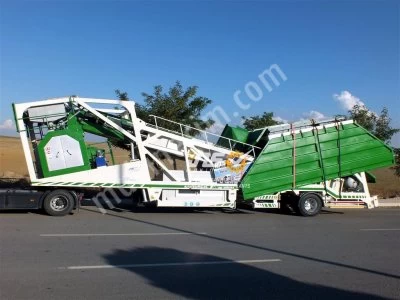

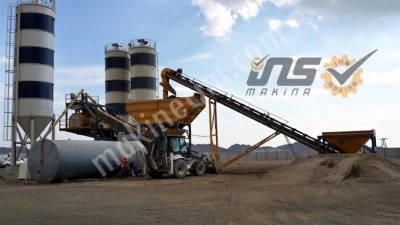

Mobile Concrete Batching Plant
Price :
Ask For Price
Ad Code :
M-157049
Ad Type :
For Sale - New
Views :
496
Date Updated :
26 Aug 2023
Production Type :
Brand
Brand
ins makina
Model :
MBS 60 BS
Production Year :
2017
İns Makina Beton Santralleri
Türkiye - Ankara - Yenimahalle
Turgut Özal Mah. 1940. Cadde, No:81/31
Ad Description
60 m3 h Capacity Mobile concrete batching plants
Technical Specifications
| Aggregate Bunker | : | Tanks: 4x10 m3 Total Volume : 40 m3 |
| Cement Silo | : | Capacity:35 tons –1 unit |
| Cement Spiral Conveyor | : | 2 Unit, Size : Ø 219 mm x 10000 mm WAM |
| Cement Silo Equipments | : | Upper and Lower Level Meters WAM |
| Aggregate Weighing Machine | : | 1 m3 Load cell : 4 x 1000 kg, ESIT |
| Cement Weighing Tank | : | Weighing Capacity:800 kg,Load Cell:1000 kgx3 , ESIT,WAM |
| Water Weighing Tank | : | Weighing Capacity:300 kg,Load Cell : 500 kgx2 , ESIT,WAM |
| Additive Tank | : | Weighing Capacity:20 kg, Load Cell : 50 kg , ESIT,WAM |
| Air Valves Board | : | MAG, Compressr 500 LT Volume, |
| Concrete Plant Automation | : | Tekno Automation |
| Command Cabin | : | 1 Unit, 2.4 x 1.2 x 2.2 m |
| Mixer | : | 1 m3 Capacity |
| Mixer Options | : | Single Shaft Type,planet type,pan type |
