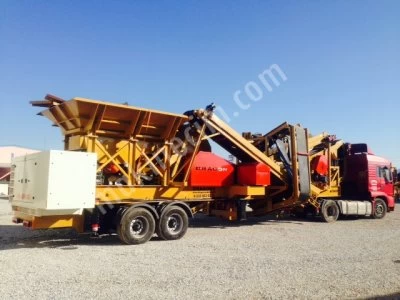

Mobile Closed Circuit Crushing and Screening Plant DRAGON 9

Mobile Closed Circuit Crushing and Screening Plant DRAGON 9

Mobile Chassis

Dragon 9 wheel suspension
Total teen(10) blocking legs four(4) of them hydraulic ally operated
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides of cone with hand rails and kick plate
Walkways and ladders both sides of screen & front cross over
Access ladder to chassis
Hydraulic raise and lower screen subframe
Hydraulic Levelling System
2 axle chassis
Four (4) hydraulic levelling jack system

Hopper and Feeder

Approximately 8 – 10 m3 capacity
Vibrator System
Feeder Grizzly System
Feeder  Size : 800x3000mm

Turbo Impact Crusher

Rotor Size : 1000 x 800mm   New Generation , New System Crusher
Strong Body, Strong rotor, strong setting blocks
110 – 160 kw  motor 1500 RPM, sheaves, v-belts
Hydraulic opening system
Easy adjustment mechanism
2-Sided, Flexible pallets
Improved latest technology Crushing system
Main Feed Belt

800 mm Main Conveyor belt

Main Conveyor 7,5 kw Electrical Motor
New System Gearbox reduction

Dragon Screen   3 Deck High Capacity

Screen Size :1300x 4000 mm 3 Deck High Capacity Screen

Motor : 11 Kw Electrical Motor

Stock Conveyors 3 Unit

2 Unit 600 mm Conveyor belt
Motor : 4 kw Electrical Motor


1 Unit 800 mm Main Stock Conveyor belt

Motor : 5,5 Kw Electrical Motor

Feedback Conveyor 1. 600 mm

Motor: 2.2 kw

Feedback Conveyor belt 2. 600 mm
Motor : 4 kw Electrical Motor


Hydraulic block adjustment, Easy To Setup, Primary Block,Secondary Block

Mobile Chassis  :2 axle chassis

Control Board  :Siemens

Hydraulic System

* Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional)

This system for fuel savings of 50%    ,Approx fuel consumption 10 - 14  Lt / h

4 Deck Screen  :  4 Deck and 4th Stock Conveyor Belt  (Optional )

Generator  ( Optional )

Cummins ,Perkins , Cat , Doosan

Engine Power 275 Kva Generator

Feeding size max. 800 x 800 mm
Feeding height 3,600 mm

Feed capacity  100 – 160 t/h

Transport dimensions (w x l x h) * 3,000 x 13,200 x 3,680 mm
Machine weight 38,000 kg


New Technology Crushing and Screening plant Closed Circuit Crushing Plant

* New Product

* New technology * This is a revolution
Crushing and Screening plant Closed Circuit Crushing Plant

Dragon 9

* New System Crushing and Screening plant latest Technology

* Easy, Practical, Quick Installation, simple transport, use it anywhere.
