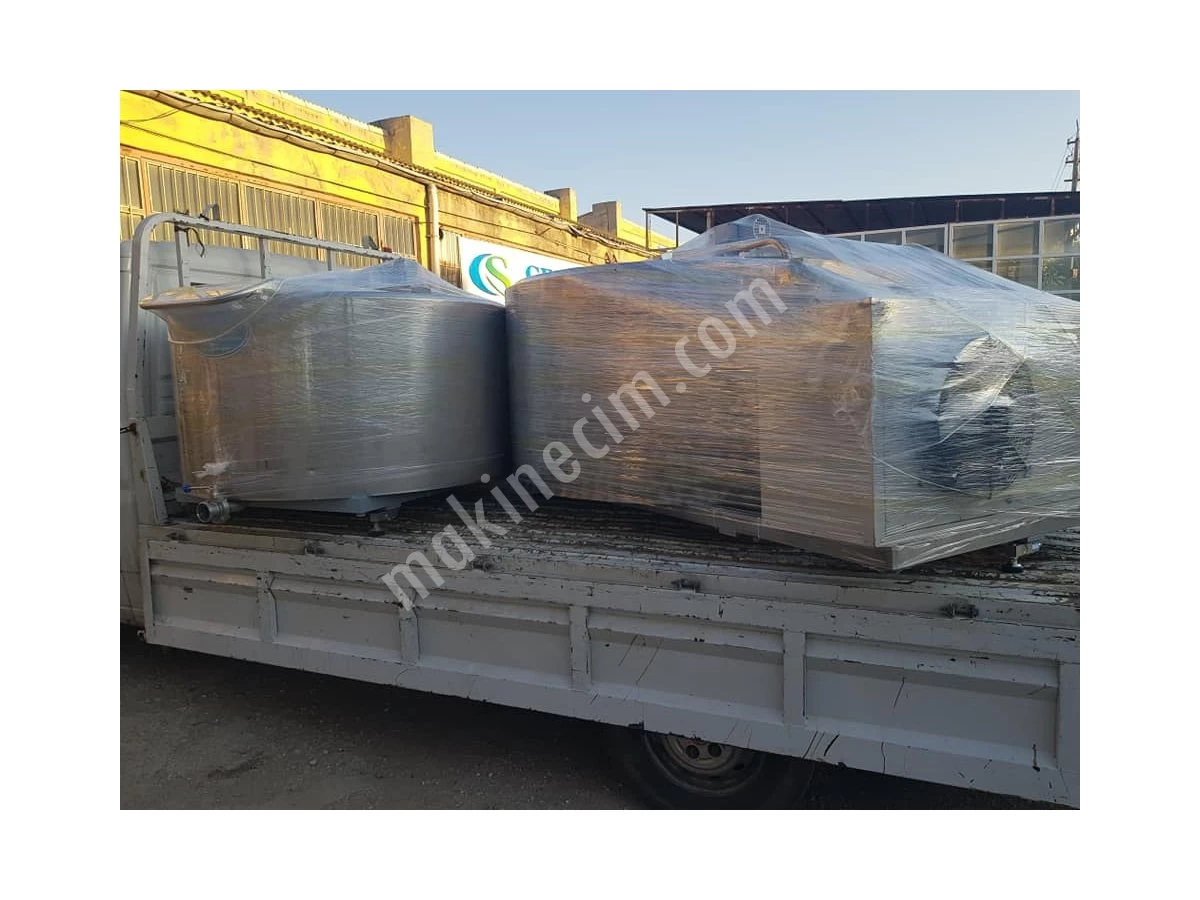

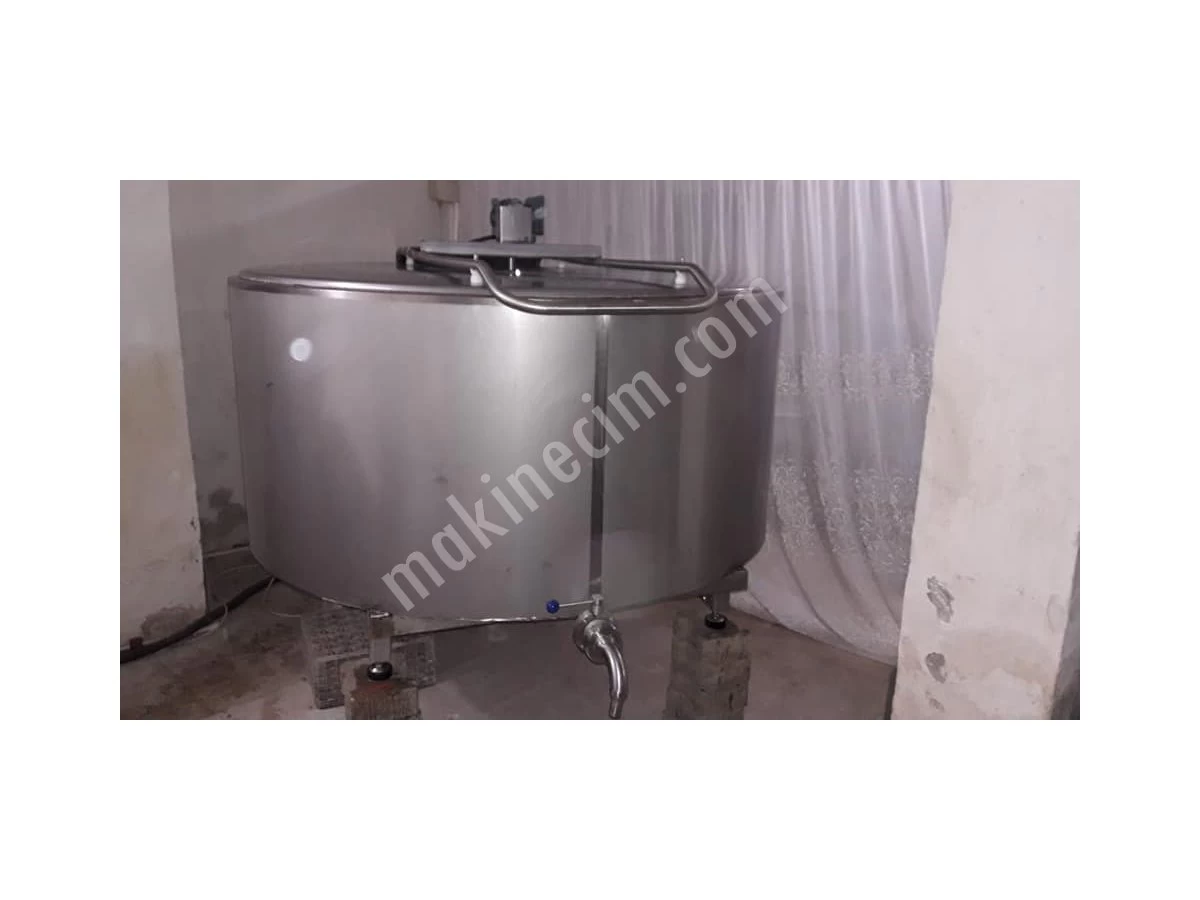

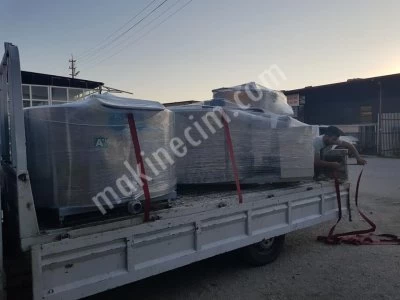

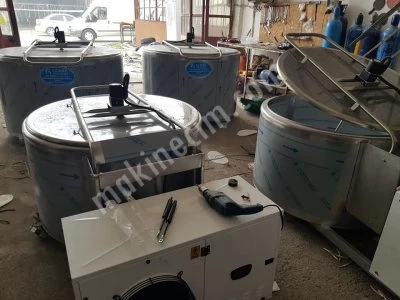

Milk Cooling Tank Cemre Sogutma.From Factory To Ring.300 Liters

Price : Ask For Price
Ad Code : M-364563
Ad Type : For Sale - New
Views : 1357
Date Updated : 24 Apr 2024
Production Type : Brand
Brand Jappa
Model : DST
Production Year : 2022
10
year
Jappa Süt Soğutma Sistemleri Sanayi ve Tic.Ltd.Şti.
Türkiye - Burdur - Merkez
Aydınlık Evler Mah K.S.S.15.Sok No.13/1 Burdur merkez
Ad Description

OUR DOCUMENT OF DOMESTIC MATERIALS IS AVAILABLE AND YOU CAN GET KOSKEP SUPPORT.

WE HAVE CE CERTIFICATE

HAS SERIAL NUMBER

HIGH QUALITY PRODUCT - BOILER MADE OF 304 ASL STAINLESS STEEL SHEET.

-EUROPEAN ENGINE.

-404 CLASS A COOLING

- ROLBONT COOLING TECHNOLOGY-

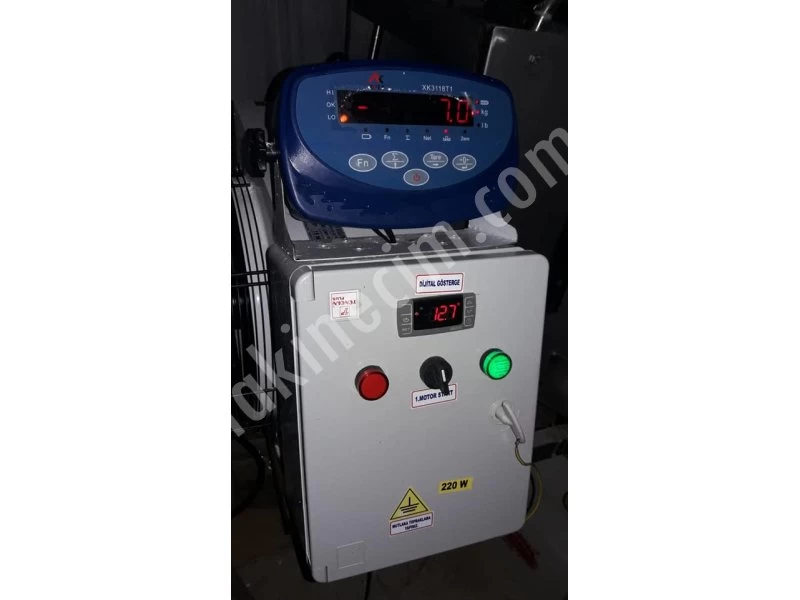

-DIGITAL CONTROL SYSTEM

-DIGITAL SCALE- KELİ BRAND

-INTELLIGENT MIXER FEATURE

-MOTOR PHASE PROTECTION- THERMIC MAGNETIC SARTEL

-CLOSED PACKAGE UNIT

-INSTALLATION BY SERVICE

-2 YEARS WARRANTY

TECHNICIAL SPECIFICATIONS


• It is completely made of AISI 304 quality stainless steel.

• The base of the 1st wall is 2 mm and there is a 1 mm Ep type rollbond heat exchanger plate coupled to the wall.

• 1st wall body is 1.5 mm.

• The insulating wall is 1 mm AISI 304 quality stainless steel.

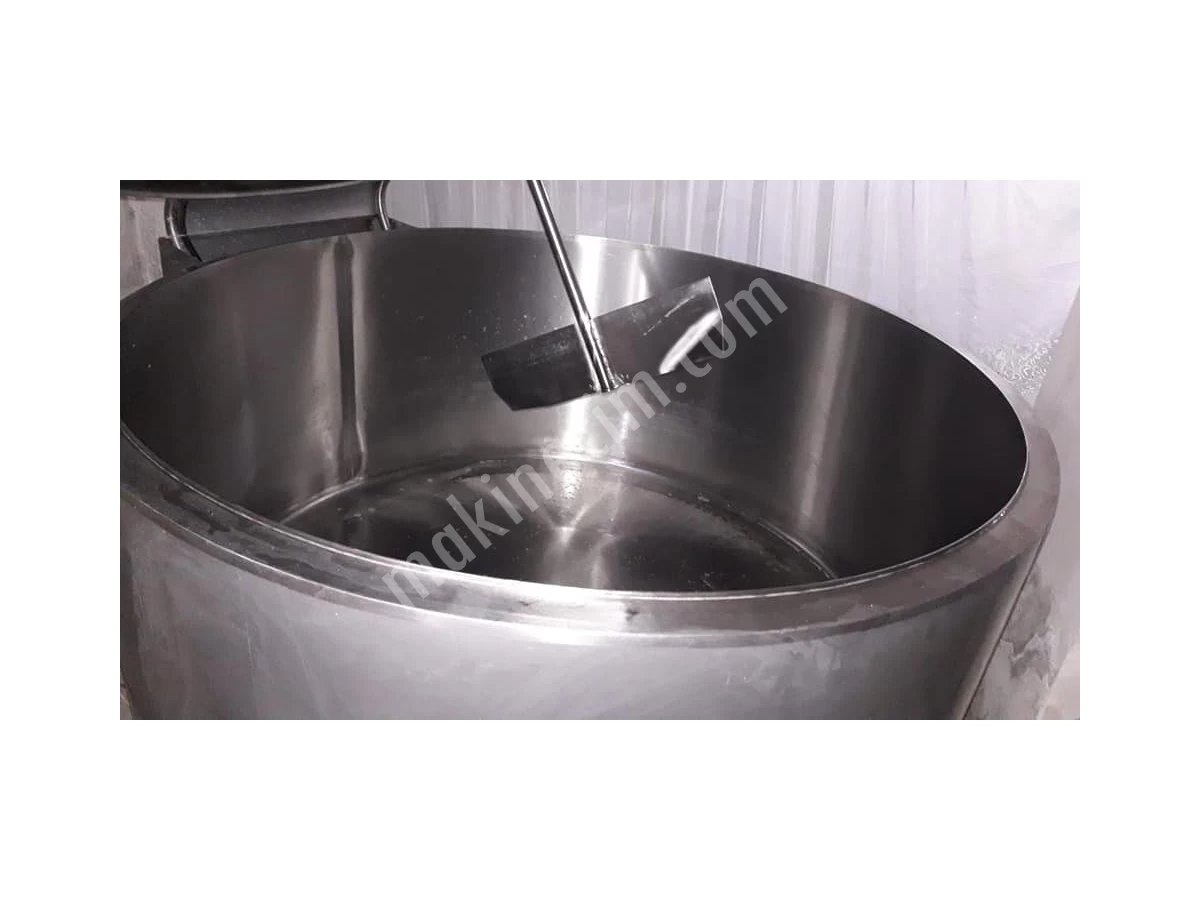

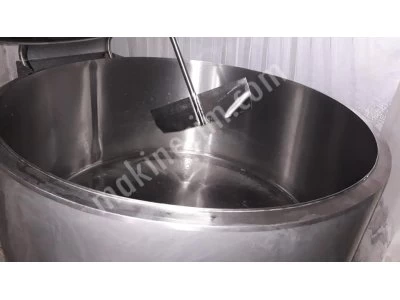

• There is one 18KW 40 d/d reducer and a stainless steel mixer blade attached to it. There are 2 mixers in our tanks of 6 tons and above.

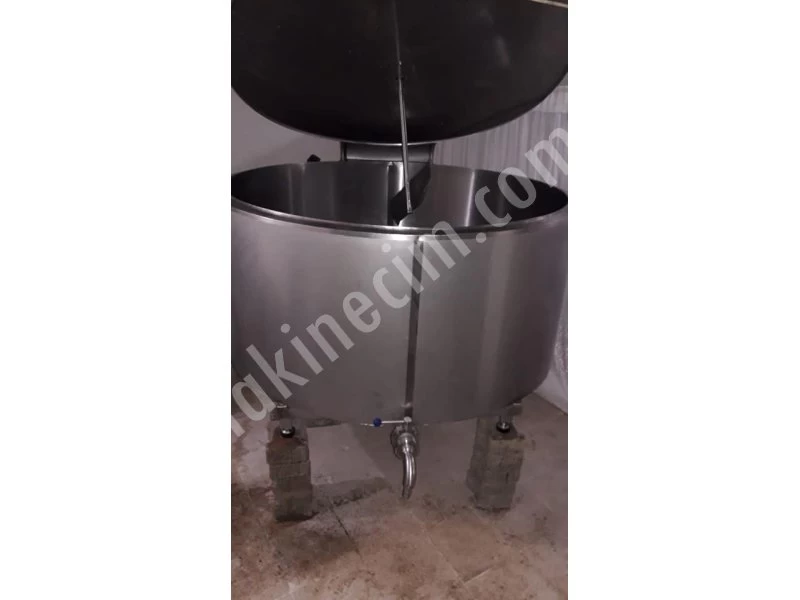

• The product outlet has a DN 50 male union butterfly valve.

• The insulation gap is 50 mm thick and insulated with polyurethane foam material.

• Our vertical type tanks have a single cover system.

• Each tank has a special digital milk weighing system.

• It has been designed to leave zero liquid inside.

• Tank body is coupled on a solid chassis.

• Welded areas are 1st class Argon TIG welding and 1st class smooth polished.

• The refrigerant evaporator (rollbond) has been subjected to a test pressure of 30 bar.


COOLING GROUP


• Minimum amount of gas charge 3KG per tank

• A 404 gas cooled provides low electricity consumption.

• Possibility of cooling without icing even in low milk quantities

• It provides the opportunity to cool each milking (33 ºC – 38ºC) at ambient temperature from 35 ºC to 4ºC in less than 3 hours.

Tanks are produced in 2 / B / II class, except for special requests.

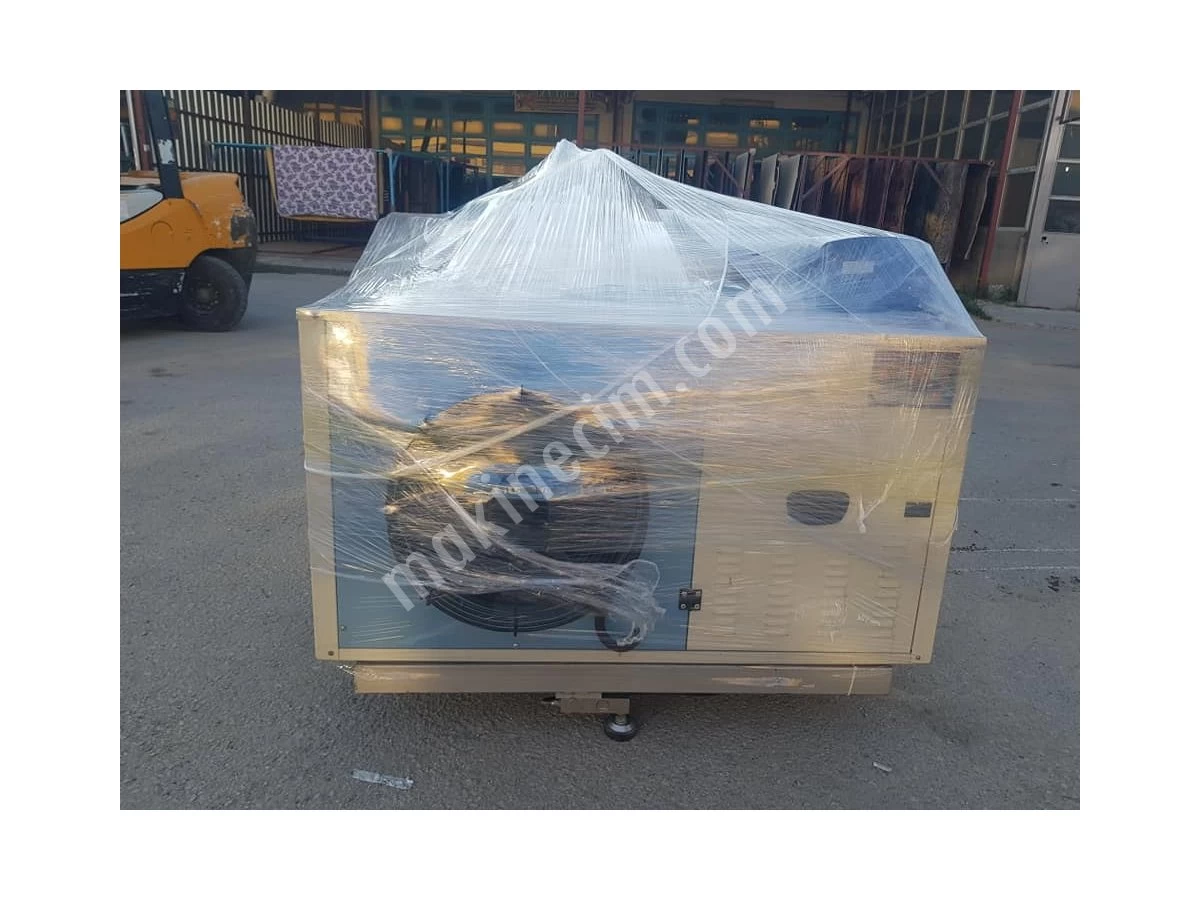

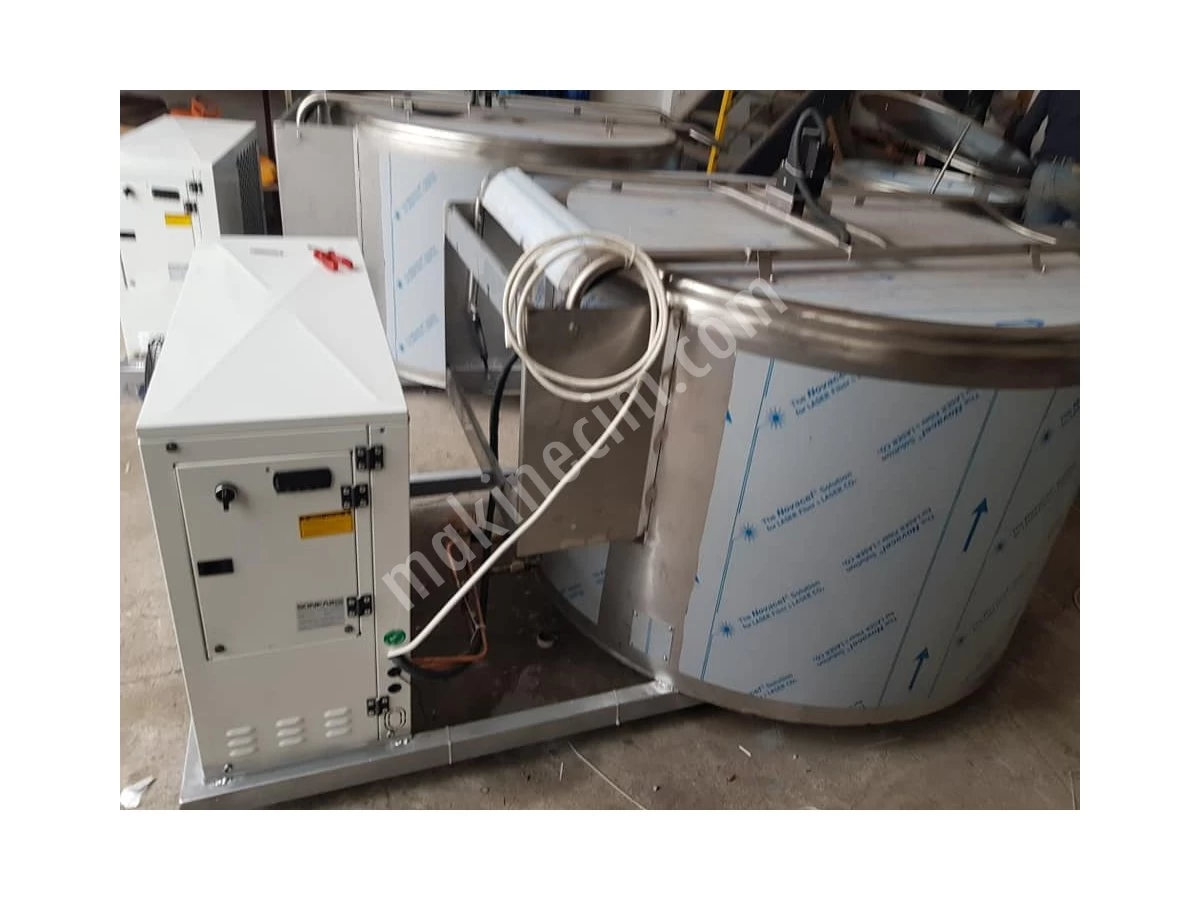

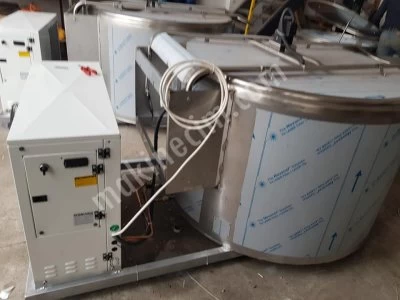

• The Cooling Group has a package unit and is coupled to the solid chassis on the tank.

Italian Aspera -French Cubigel & Sanyo AMERICAN KOPELAND are used as engine brand in cooling groups.

CEMRE SOGUTMA FACTORY: MARUKATCILAR SITE SEHİT MEHMET SOK NO 6 BURDUR.
