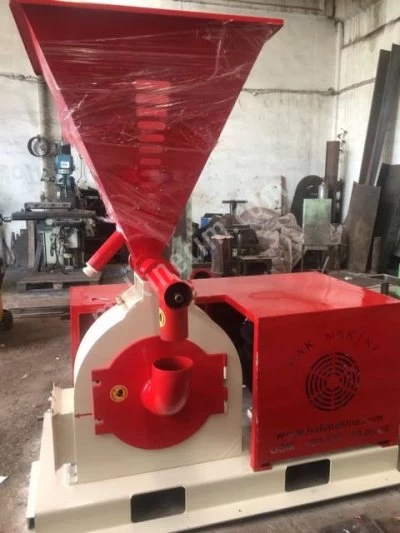

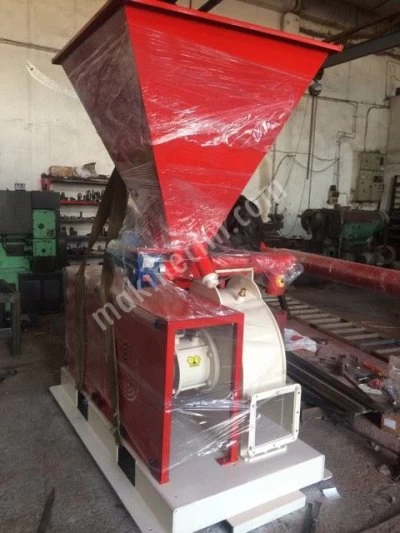

Micronized Milling Machines Between 500-1000 Kg Hourly Hak Machine

As Hak Makina, we manufacture PVC Micronized Grinding Machines. The machines we have seen in the market are always made as copies of each other.

Ball System: Aluminum body

.Blade System:2379 blades are heat treated

.Dosing System and Body are completely water cooled

.Rotor Diameter:600mm

.Number of Rotor Blades: 24 Pieces

.Complete Enclosed System

Micronizing is Our Business. We Are Ambitious and Determined in This Subject. Thank you for choosing us. I wish you a good work (products to be micronized (for PVC-PP MASTERBECH PAINT -PE-HDPE- )

.55 Kw/2800 rpm engine is used

.2.2 dosing system endless reducer (inverter adjusted)

.Ball system FAG Ball is used (ball automatic lubrication)

.Metal Anti Magnet separator

.The Boat of the Machine Takes 500 kg of Product

.Electric material is original telemechanical Schnider brand

.Hourly Capacity: 500-1000 Kg

.Safety switches: 1 piece

Power transmission to the rotor is carried out with B type V-belts inside the safety visor.

.Water circulates in the piping so that the product does not burn.

.Cooled Belt is used

.Command to the machine is commanded via the PNC screen

.Soft start is given for being the driver

.At the moment of blinding of the blades, the drive is activated and stops dosing

.Gives a warning signal
